PANEL DESCRIPTION

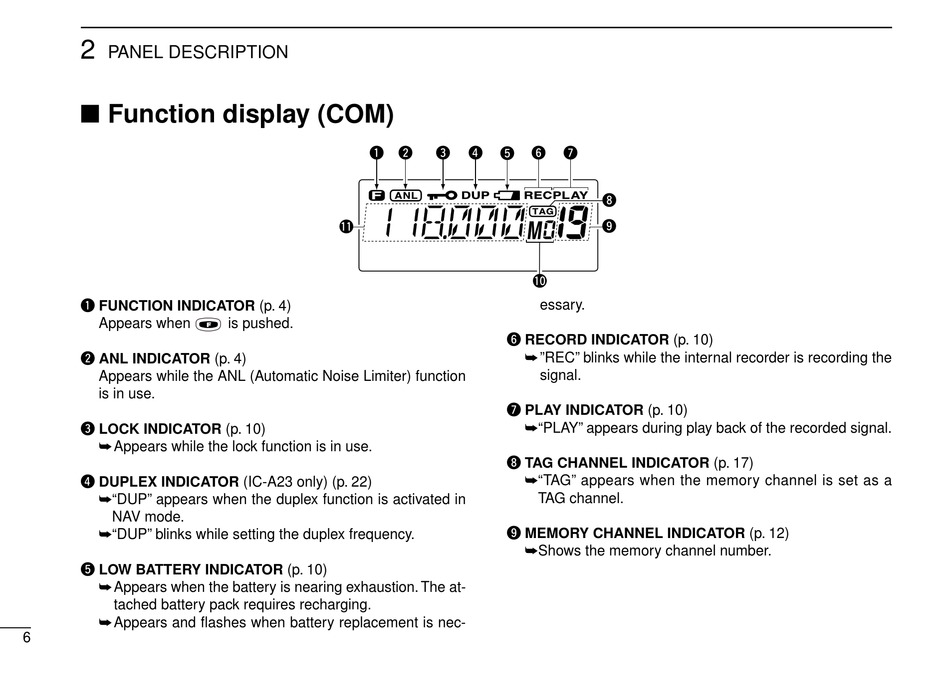

Function display (COM)
q FUNCTION INDICATOR (p. 4)
Appears when
w ANL INDICATOR (p. 4)
Appears while the ANL (Automatic Noise Limiter) function
is in use.
e LOCK INDICATOR (p. 10)
Appears while the lock function is in use.
r DUPLEX INDICATOR (IC-A23 only) (p. 22)
"DUP" appears when the duplex function is activated in
NAV mode.
"DUP" blinks while setting the duplex frequency.
t LOW BATTERY INDICATOR (p. 10)
Appears when the battery is nearing exhaustion. The at-
tached battery pack requires recharging.
Appears and flashes when battery replacement is nec-
6
w
q
!1
is pushed.
e r t y u
i
o
!0
essary.
y RECORD INDICATOR (p. 10)
"REC" blinks while the internal recorder is recording the
signal.
u PLAY INDICATOR (p. 10)
"PLAY" appears during play back of the recorded signal.
i TAG CHANNEL INDICATOR (p. 17)
"TAG" appears when the memory channel is set as a
TAG channel.
o MEMORY CHANNEL INDICATOR (p. 12)
Shows the memory channel number.
