2

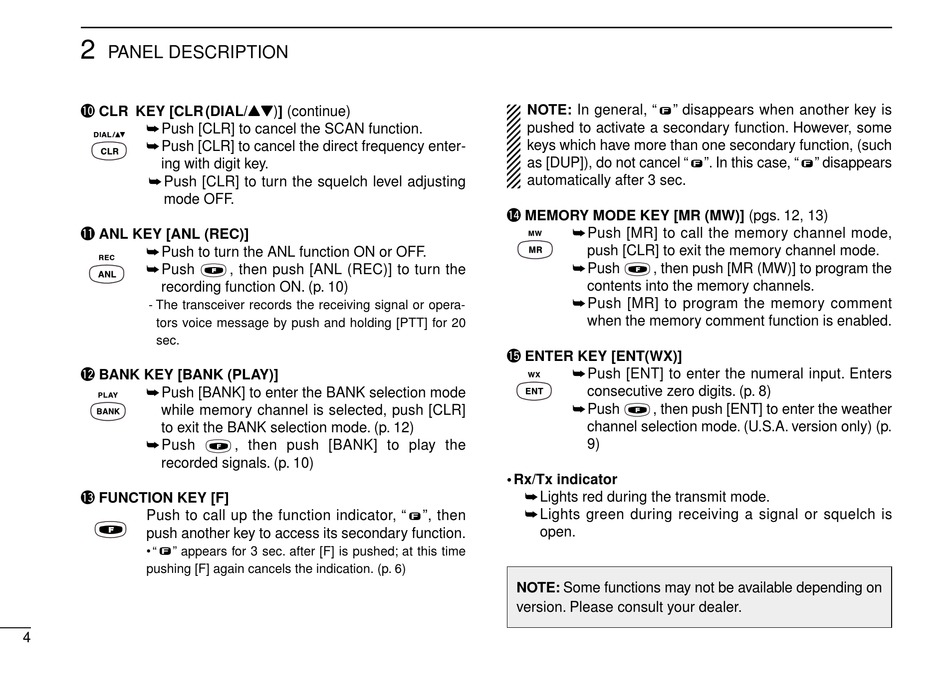

PANEL DESCRIPTION
!0 CLR KEY [CLR (DIAL/YZ)] (continue)
Push [CLR] to cancel the SCAN function.
Push [CLR] to cancel the direct frequency enter-
ing with digit key.
Push [CLR] to turn the squelch level adjusting
mode OFF.
!1 ANL KEY [ANL (REC)]
Push to turn the ANL function ON or OFF.
Push
recording function ON. (p. 10)
- The transceiver records the receiving signal or opera-
tors voice message by push and holding [PTT] for 20
sec.
!2 BANK KEY [BANK (PLAY)]
Push [BANK] to enter the BANK selection mode
while memory channel is selected, push [CLR]
to exit the BANK selection mode. (p. 12)
Push
recorded signals. (p. 10)
!3 FUNCTION KEY [F]
Push to call up the function indicator, "
push another key to access its secondary function.
• " " appears for 3 sec. after [F] is pushed; at this time
pushing [F] again cancels the indication. (p. 6)
4
, then push [ANL (REC)] to turn the
, then push [BANK] to play the
NOTE: In general, "
pushed to activate a secondary function. However, some
keys which have more than one secondary function, (such
as [DUP]), do not cancel "
automatically after 3 sec.
!4 MEMORY MODE KEY [MR (MW)] (pgs. 12, 13)
Push [MR] to call the memory channel mode,
push [CLR] to exit the memory channel mode.
Push
contents into the memory channels.
Push [MR] to program the memory comment
when the memory comment function is enabled.
!5 ENTER KEY [ENT(WX)]
Push [ENT] to enter the numeral input. Enters
consecutive zero digits. (p. 8)
Push
channel selection mode. (U.S.A. version only) (p.
9)
• Rx/Tx indicator
Lights red during the transmit mode.
Lights green during receiving a signal or squelch is
", then
open.
NOTE: Some functions may not be available depending on
version. Please consult your dealer.
" disappears when another key is
". In this case, " " disappears
, then push [MR (MW)] to program the
, then push [ENT] to enter the weather
