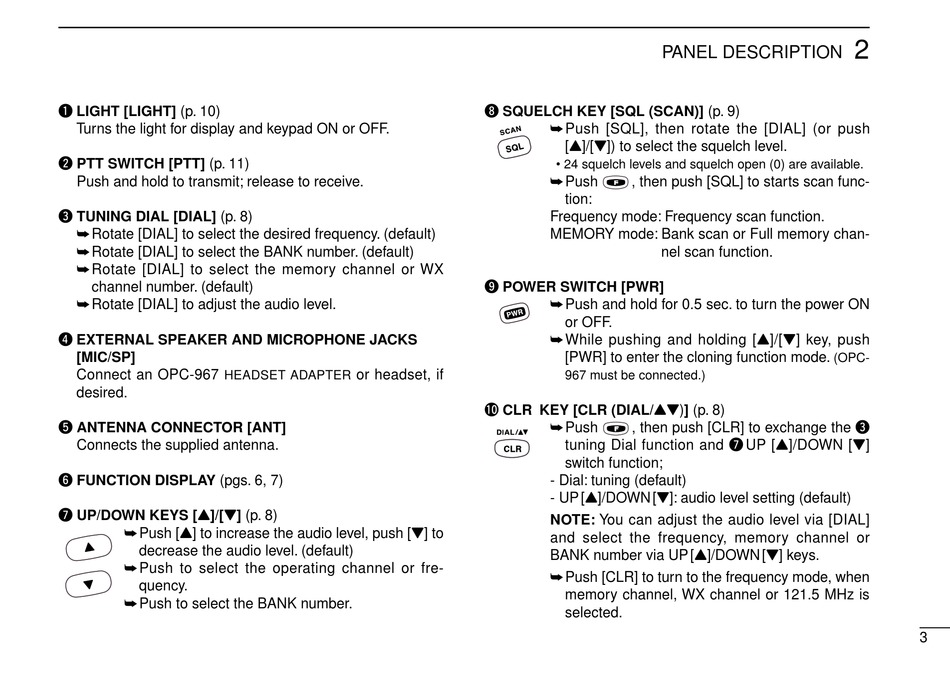

Icom IC-A23 Instruction Manual page 7

q LIGHT [LIGHT] (p. 10)
Turns the light for display and keypad ON or OFF.
w PTT SWITCH [PTT] (p. 11)
Push and hold to transmit; release to receive.
e TUNING DIAL [DIAL] (p. 8)
Rotate [DIAL] to select the desired frequency. (default)
Rotate [DIAL] to select the BANK number. (default)
Rotate [DIAL] to select the memory channel or WX
channel number. (default)
Rotate [DIAL] to adjust the audio level.
r EXTERNAL SPEAKER AND MICROPHONE JACKS
[MIC/SP]
Connect an OPC-967
HEADSET ADAPTER
desired.
t ANTENNA CONNECTOR [ANT]
Connects the supplied antenna.
y FUNCTION DISPLAY (pgs. 6, 7)
u UP/DOWN KEYS [Y]/[Z] (p. 8)
Push [Y] to increase the audio level, push [Z] to
decrease the audio level. (default)
Push to select the operating channel or fre-
quency.
Push to select the BANK number.
i SQUELCH KEY [SQL (SCAN)] (p. 9)
o POWER SWITCH [PWR]
or headset, if
!0 CLR KEY [CLR (DIAL/YZ)] (p. 8)
PANEL DESCRIPTION
Push [SQL], then rotate the [DIAL] (or push
[Y]/[Z]) to select the squelch level.
• 24 squelch levels and squelch open (0) are available.
Push , then push [SQL] to starts scan func-
tion:
Frequency mode: Frequency scan function.
MEMORY mode: Bank scan or Full memory chan-
nel scan function.
Push and hold for 0.5 sec. to turn the power ON
or OFF.
While pushing and holding [Y]/[Z] key, push
[PWR] to enter the cloning function mode.
967 must be connected.)
, then push [CLR] to exchange the e
Push
tuning Dial function and u UP [Y]/DOWN [Z]
switch function;
- Dial: tuning (default)
- UP [Y]/DOWN [Z]: audio level setting (default)
NOTE: You can adjust the audio level via [DIAL]
and select the frequency, memory channel or
BANK number via UP [Y]/DOWN [Z] keys.
Push [CLR] to turn to the frequency mode, when
memory channel, WX channel or 121.5 MHz is
selected.
