12
SET MODE

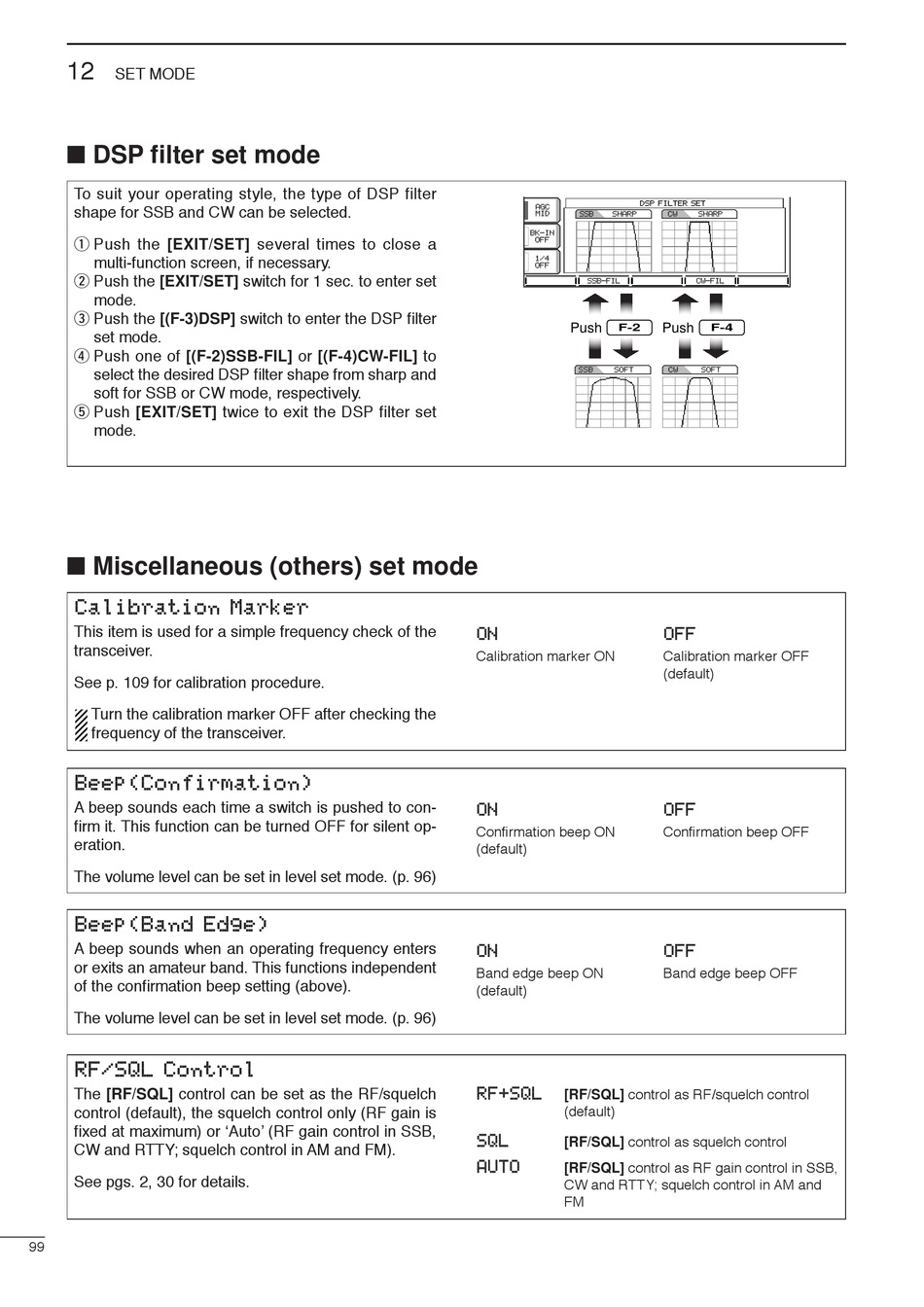

■ DSP filter set mode
To suit your operating style, the type of DSP filter
shape for SSB and CW can be selected.
q Push the [EXIT/SET] several times to close a
multi-function screen, if necessary.
w Push the [EXIT/SET] switch for 1 sec. to enter set
mode.
e Push the [(F-3)DSP] switch to enter the DSP filter
set mode.
r Push one of [(F-2)SSB-FIL] or [(F-4)CW-FIL] to
select the desired DSP filter shape from sharp and
soft for SSB or CW mode, respectively.
t Push [EXIT/SET] twice to exit the DSP filter set
mode.

■ Miscellaneous (others) set mode

C C a a l l i i b b r r a a t t i i o o n n M M a a r r k k e e r r
This item is used for a simple frequency check of the
transceiver.
See p. 109 for calibration procedure.
Turn the calibration marker OFF after checking the
frequency of the transceiver.
B B e e e e p p ( ( C C o o n n f f i i r r m m a a t t i i o o n n ) )
A beep sounds each time a switch is pushed to con-
firm it. This function can be turned OFF for silent op-
eration.
The volume level can be set in level set mode. (p. 96)
B B e e e e p p ( ( B B a a n n d d E E d d g g e e ) )
A beep sounds when an operating frequency enters
or exits an amateur band. This functions independent
of the confirmation beep setting (above).
The volume level can be set in level set mode. (p. 96)
R R F F / / S S Q Q L L C C o o n n t t r r o o l l
The [RF/SQL] control can be set as the RF/squelch
control (default), the squelch control only (RF gain is
fixed at maximum) or 'Auto' (RF gain control in SSB,
CW and RTTY; squelch control in AM and FM).
See pgs. 2, 30 for details.
99
DSP FILTER SET
AGC AGC
MID MID SSB SSB
SHARP SHARP
BK-IN BK-IN
OFF OFF
1/4 1/4
OFF OFF
SSB-FIL SSB-FIL
Push
F-2
SSB SSB SOFT SOFT
O O N N
Calibration marker ON
O O N N
Confirmation beep ON
(default)
O O N N
Band edge beep ON
(default)
R R F F + + S S Q Q L L
[RF/SQL] control as RF/squelch control
(default)
S S Q Q L L
[RF/SQL] control as squelch control
A A U U T T O O
[RF/SQL] control as RF gain control in SSB,
CW and RTTY; squelch control in AM and
FM
SHARP SHARP
CW CW
CW-FIL CW-FIL
Push
F-4
CW CW SOFT SOFT
O O F F F F
Calibration marker OFF
(default)
O O F F F F
Confirmation beep OFF
O O F F F F
Band edge beep OFF
