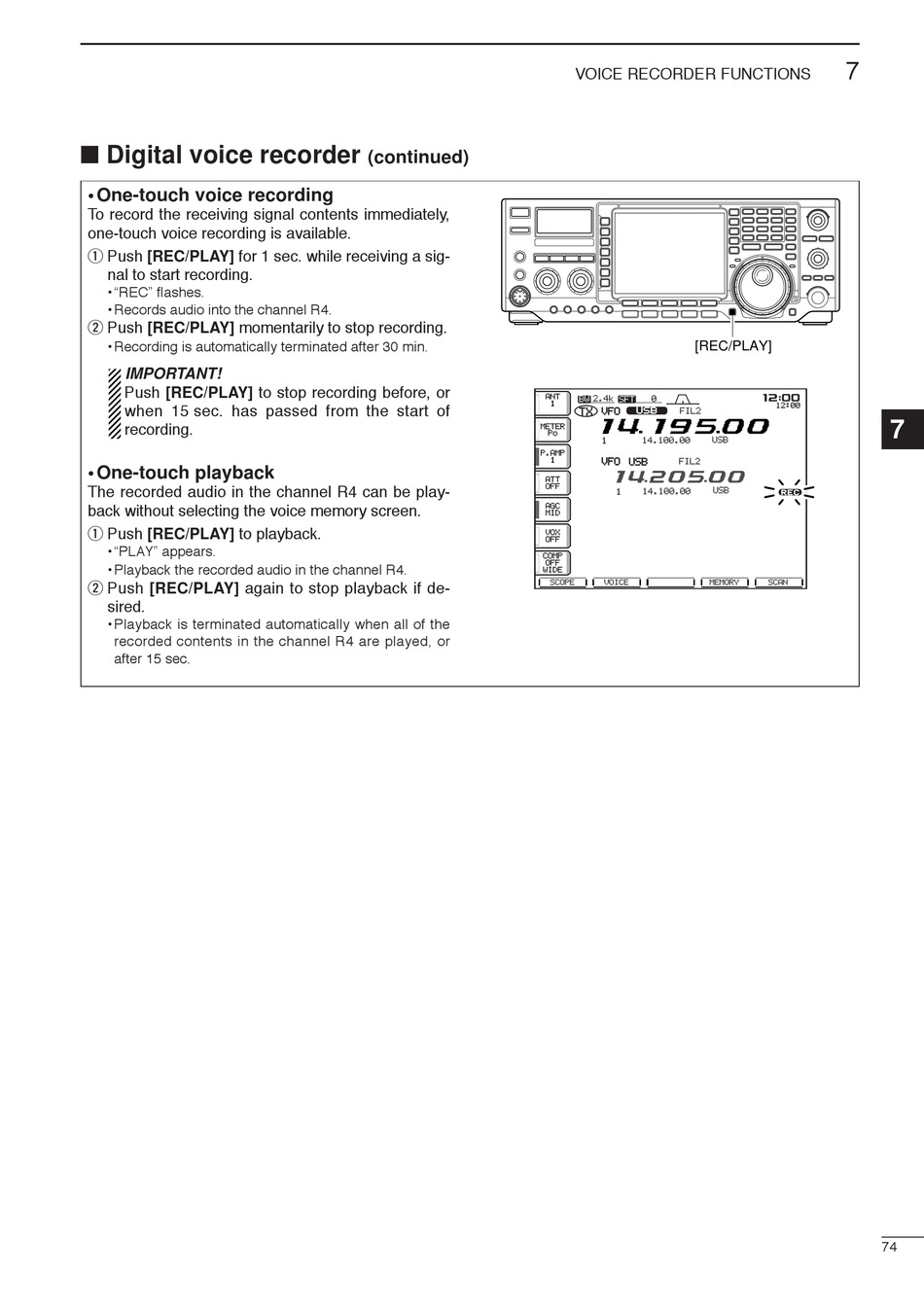

■ Digital voice recorder
• One-touch voice recording
To record the receiving signal contents immediately,
one-touch voice recording is available.
q Push [REC/PLAY] for 1 sec. while receiving a sig-
nal to start recording.
• "REC" flashes.
• Records audio into the channel R4.
w Push [REC/PLAY] momentarily to stop recording.
• Recording is automatically terminated after 30 min.
IMPORTANT!
Push [REC/PLAY] to stop recording before, or
when 15 sec. has passed from the start of
recording.
• One-touch playback
The recorded audio in the channel R4 can be play-
back without selecting the voice memory screen.
q Push [REC/PLAY] to playback.
• "PLAY" appears.
• Playback the recorded audio in the channel R4.
w Push [REC/PLAY] again to stop playback if de-
sired.
• Playback is terminated automatically when all of the
recorded contents in the channel R4 are played, or
after 15 sec.
(continued)
