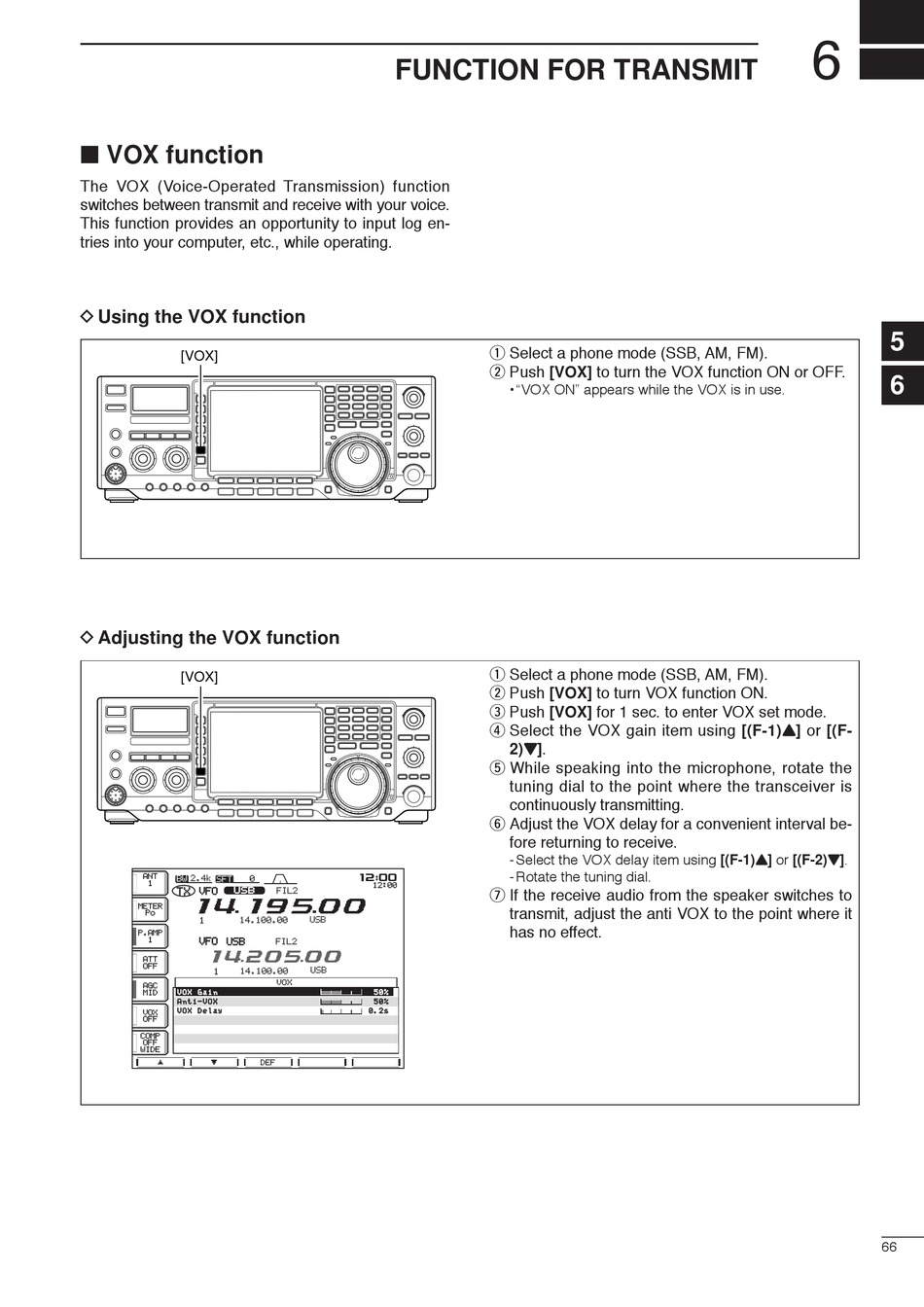

■ VOX function

The VOX (Voice-Operated Transmission) function
switches between transmit and receive with your voice.
This function provides an opportunity to input log en-
tries into your computer, etc., while operating.

D Using the VOX function

[VOX]

D Adjusting the VOX function

[VOX]
ANT ANT
2.4k 2.4k 0
BW BW SFT SFT
1
VFO VFO U S B U S B
TX T X
qr.qot.pp
METER METER
Po Po
1 14.100.00 14.100.00
P.AMP P.AMP
1
VFO VFO USB USB
qr.wpt.pp
ATT ATT
OFF OFF
14.100.00 14.100.00
1
AGC AGC
VOX G a i n
MID MID
Anti - V O X
VOX D e l a y
VOX VOX
OFF OFF
COMP COMP
OFF OFF
WIDE WIDE
é è

FUNCTION FOR TRANSMIT

qw:pp
12:00
FIL2 FIL2
USB USB
FIL2 FIL2
USB USB
VOX
5 0%
5 0%
0. 2s
DEF
q Select a phone mode (SSB, AM, FM).
w Push [VOX] to turn the VOX function ON or OFF.
• "VOX ON" appears while the VOX is in use.
q Select a phone mode (SSB, AM, FM).
w Push [VOX] to turn VOX function ON.
e Push [VOX] for 1 sec. to enter VOX set mode.
r Select the VOX gain item using [(F-1)Y Y ] or [(F-
2)Z Z ].
t While speaking into the microphone, rotate the
tuning dial to the point where the transceiver is
continuously transmitting.
y Adjust the VOX delay for a convenient interval be-
fore returning to receive.
- Select the VOX delay item using [(F-1)Y Y ] or [(F-2)Z Z ].
- Rotate the tuning dial.
u If the receive audio from the speaker switches to
transmit, adjust the anti VOX to the point where it
has no effect.
6
5
6
66
