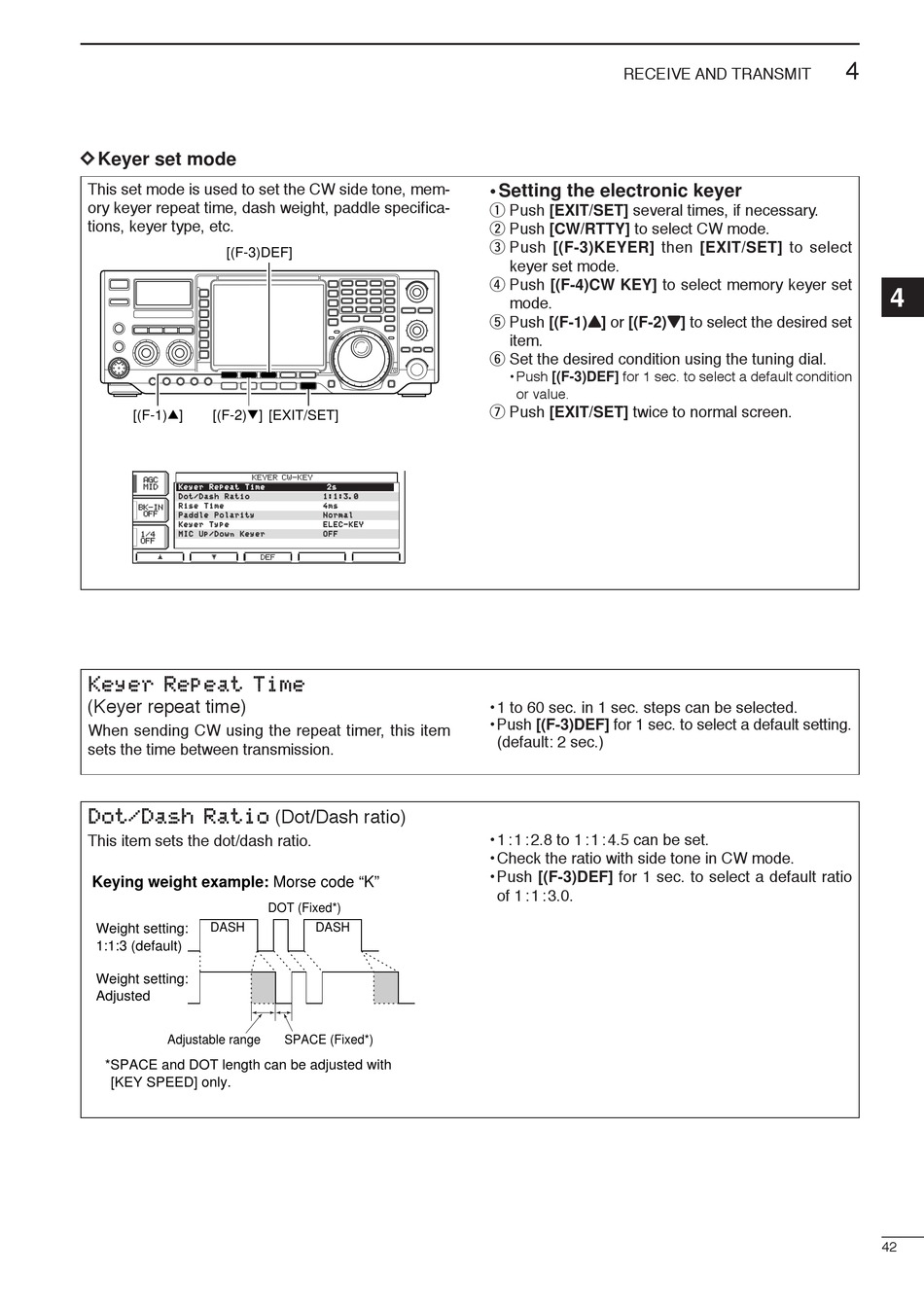

D D Keyer set mode
This set mode is used to set the CW side tone, mem-
ory keyer repeat time, dash weight, paddle specifica-
tions, keyer type, etc.
[(F-3)DEF]
[(F-1)∫] [(F-2)√]
K EY ER C W- KE Y K E Y E R C W - K E Y
AGC AGC
MID MID K ey e r R e p e a t K e y e r R ep e at T i m e Ti m e
D o t / D a s h D ot / Da sh R a t i o R a ti o
R i s e R is e T i m e Ti me
BK-IN BK-IN
OFF OFF
P a d d l e P ad d le P o l a r i t y Po l ar it y
K e y e r K ey e r T y p e T yp e
M IC U p / D o w n M I C U p/ Do w n K e y e r K ey e r
1/4 1/4
OFF OFF
é è
K K e e y y e e r r R R e e p p e e a a t t T T i i m m e e
(Keyer repeat time)
When sending CW using the repeat timer, this item
sets the time between transmission.
D D o o t t / / D D a a s s h h R R a a t t i i o o (Dot/Dash ratio)
This item sets the dot/dash ratio.
Keying weight example: Morse code "K"
DASH
Weight setting:
1:1:3 (default)
Weight setting:
Adjusted
Adjustable range
*SPACE and DOT length can be adjusted with
[KEY SPEED] only.
[EXIT/SET]
2 s 2 s
1 : 1: 3 . 0 1 : 1 : 3 . 0
4 m s 4 m s
N o rm a l N o r m a l
E L EC - K E Y E L E C - K E Y
O F F O F F
DEF DEF
DOT (Fixed*)
DASH
SPACE (Fixed*)
RECEIVE AND TRANSMIT
• Setting the electronic keyer
q Push [EXIT/SET] several times, if necessary.
w Push [CW/RTTY] to select CW mode.
e Push [(F-3)KEYER] then [EXIT/SET] to select
keyer set mode.
r Push [(F-4)CW KEY] to select memory keyer set
mode.
t Push [(F-1)Y Y ] or [(F-2)Z Z ] to select the desired set
item.
y Set the desired condition using the tuning dial.
• Push [(F-3)DEF] for 1 sec. to select a default condition
or value.
u Push [EXIT/SET] twice to normal screen.
• 1 to 60 sec. in 1 sec. steps can be selected.
• Push [(F-3)DEF] for 1 sec. to select a default setting.
(default: 2 sec.)
• 1 : 1 : 2.8 to 1 : 1 : 4.5 can be set.
• Check the ratio with side tone in CW mode.
• Push [(F-3)DEF] for 1 sec. to select a default ratio
of 1 : 1 : 3.0.
