Joystick Operation

Installing the Remote Control Module
The joystick is part of the remote control module. The joystick has a built-in Bluetooth module and Data
transmission module. The mobile phone communicates with it through Bluetooth connection.
Press the power button for a short time, and then press and hold the power button for more than two
seconds, and you hear a "drip~ ", that is, the remote control is turned on.
Press the power button for a short time, and then press and hold the power button for more than two
seconds, and you hear three "drip~ drip~ drip~", that is, the remote control is turned off.
Joystick calibration
Hold the remote control but do not touch the joystick. Press the remote control buttons F1 and F3 and
release them at the same time. At this time, the remote control will emit a continuous "drip ~ drip ~"
sound (1 time / second) to indicate that it has entered the calibration mode. After entering the
calibration mode, move the left and right joysticks to full rudder and rotate it several times until the "drip
~ drip ~" sound stops, and the calibration is ready. Press F3 once to make the calibration take effect and
complete the calibration.
Note : Please do not touch the joystick before calibrating, only enter the calibration mode to move the
joystick. After calibration, you can view the status of the joystick after calibration through APP . (reference
P33)

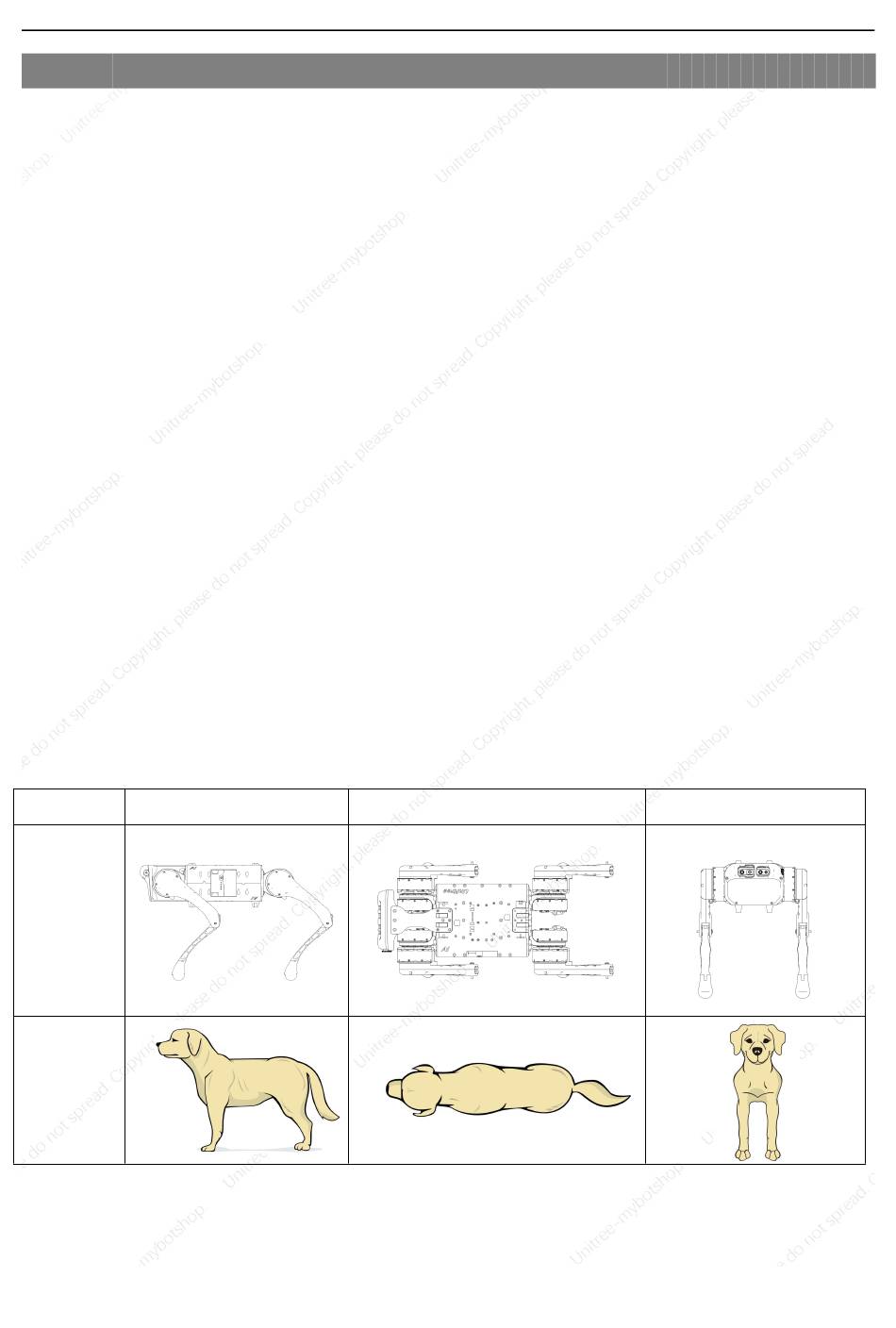

Robot and Robot Schematic
Side View
Robot
Robot
Schematic
Top View
