Here's a summary of the steps to install your System
Familiarize yourself with these steps before you start!
1 ) Mount the Cabinet on the wall
2) Mount the Control Box and Datalog-Keypad on the wall
3) Insert Key Panels

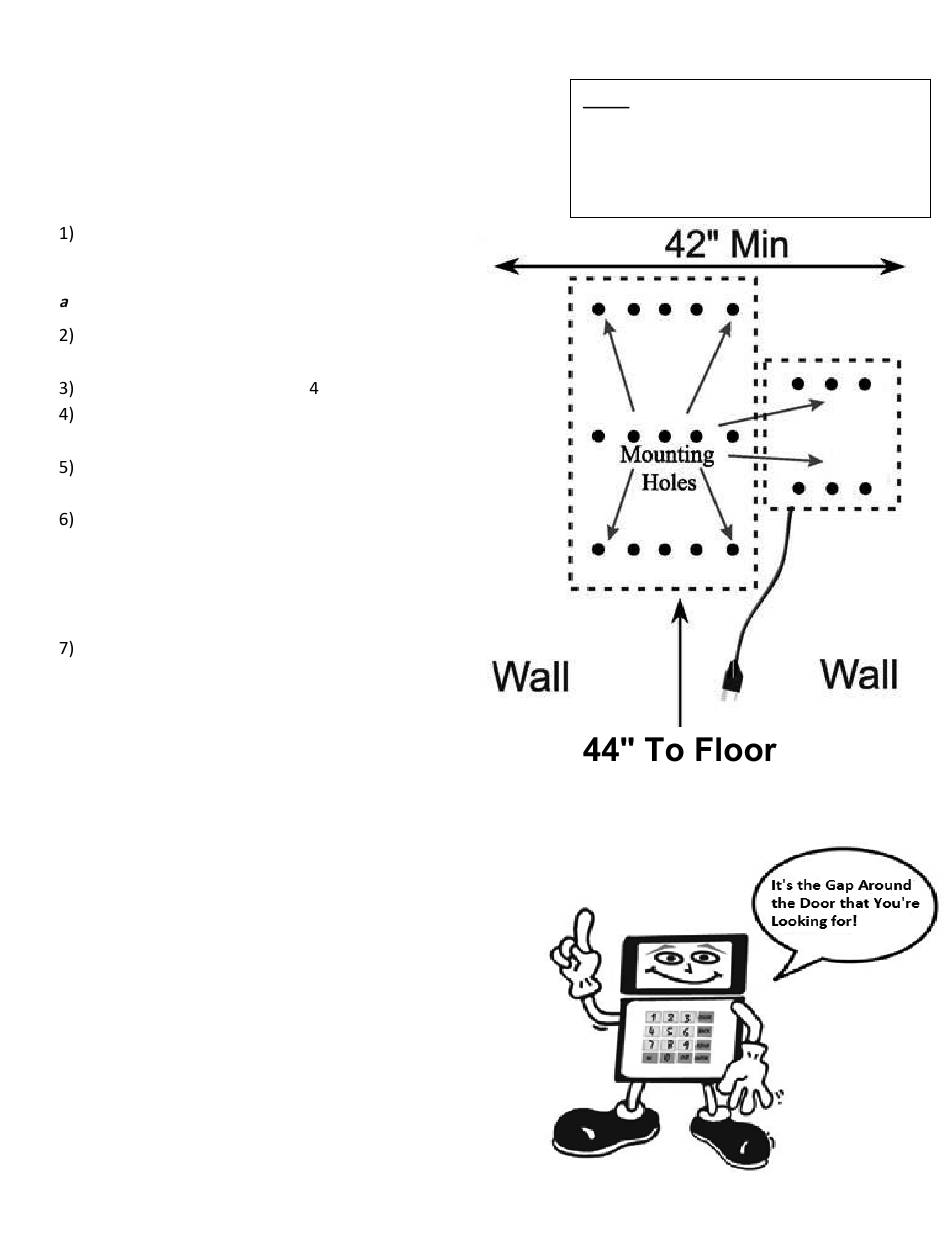

Cabinet Installation Instructions
Find a stud on wall. Align stud with at least
one of the six drilled stud holes at the top of
the cabinet. We strongly recommend � a
ttaching the cabinet to a stud, if possible.
Stack box cabinet came in and box that
control box came in on top of each other.
This will give you a platform 4 " high.
Place cabinet on top of these two boxes
and a level on top of cabinet.
Upon leveling the cabinet, use a pencil to
mark your holes.
When all holes are marked, use screws
that penetrate at least 2 inches into stud and
wall anchors that are capable of holding at
least 50 lbs. Follow the manufacturer's
directions for wall anchors.
Mounting the cabinet. Lift the cabinet into
place. Tighten all fasteners snug, but not too
tight. Place your level on top of the cabinet
and check repeatedly as you tighten all of the
fasteners.
Door Alignment
Check the gap between door and door frame at
the top, bottom and side. If gap is not uniform
all the way around, the cabinet will have to be
shimmed to compensate for the uneven wall
surface. Tips when shimming:
1) Use metal or plastic. Wood and rubber
don't hold their shape well.
2) If gap at top is greater than gap at
bottom, shim top of cabinet at the right
hand corner.
3) If gap at bottom is greater than gap at
top, shim bottom of cabinet at the right
hand corner.
�
NOTE : A minimum of 9 screws/bolts
should be used when mounting the cabinet
to the wall. ALL 4 corner holes and side
mounting holes should be used in order to
securely mount the cabinet to the wall.
