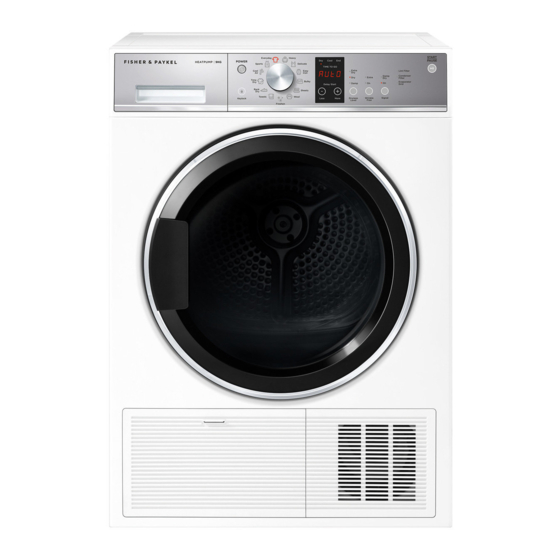

HEAT PUMP CLOTHES DRYER
DH9060P models
INSTALLATION GUIDE / USER GUIDE
NZ AU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DH9060P and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher & Paykel DH9060P

Summary of Contents for Fisher & Paykel DH9060P

  • Page 1 HEAT PUMP CLOTHES DRYER DH9060P models INSTALLATION GUIDE / USER GUIDE NZ AU...

  • Page 3: Table Of Contents

    CONTENTS Introduction Safety and warnings Installation instructions Control panel Drying cycles Sorting and loading Getting started quickly Customising drying cycle Caring for your dryer Before you call for service Fault codes Troubleshooting Manufacturer’s warranty Customer care IMPORTANT! Registration SAVE THESE INSTRUCTIONS Register your product with us so we can The models shown in this User guide may provide you with the best service possible.

  • Page 5: Introduction

    INTRODUCTION Welcome to your new heat pump clothes dryer Thank you for purchasing a Fisher & Paykel clothes dryer. We are proud of this dryer and trust it will serve you well for many years. At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic, energy efficient and kind to the environment.

  • Page 6: Safety And Warnings

    SAFETY AND WARNINGS Meaning of symbols on the dryer Warning: Risk of fire/Flammable materials Read the instructions WARNING! Fire Hazard Only dry fabrics that have been washed with water. Do not use heat to dry articles containing foam rubber or similarly textured rubber–like materials, dry on ‘Air Dry’.
  • Page 7 SAFETY AND WARNINGS When using this appliance always exercise basic safety precautions including the following: Dryer use This dryer has been designed for domestic use only, not for commercial applications, such as massage/beauty clinics where there may be increased lint accumulation or flammable materials in the atmosphere or load.
  • Page 8 SAFETY AND WARNINGS Lint Accumulated lint in the dryer can become a fire hazard; it also reduces the efficiency of the dryer by causing longer drying times and increased power consumption. Clean the lint filter before every load. Ensure the area around the dryer is clear of lint. At regular intervals have the interior of the dryer cleaned of any accumulated lint.
  • Page 9 SAFETY AND WARNINGS Spontaneous combustion IMPORTANT! To reduce the risk of fire in a tumble dryer the following should be observed: Items that have been spotted or soaked with vegetable oil or cooking oil are a fire hazard and should not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as a tumble dryer.

  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS Read and follow the ‘Safety and warnings’ and ‘Installation instructions’ sections carefully before using your dryer! Moving your appliance When moving your dryer only tip towards the right hand side (when viewed from the front). If the dryer has not been transported as described, leave it standing upright for at least one hour before turning on.
  • Page 11 INSTALLATION INSTRUCTIONS Installation options Your dryer can be installed one of two ways, either freestanding, or stacked on top of a Fisher & Paykel front loading washer. Free standing The dryer stands on the floor and can easily be moved into position. Stacking Your dryer has been designed to be able to be stacked on top of any Fisher &...
  • Page 12 INSTALLATION INSTRUCTIONS Draining The dryer is equipped with a condenser unit which accumulates water during the drying cycle. This water is collected in the removable water tank located at the top left of the dryer. The accumulated water must be emptied after each drying cycle. However you can also set up your dryer to drain automatically using the drain hose provided.
  • Page 13 INSTALLATION INSTRUCTIONS Electrical connection This appliance must be connected to a 220V – 240V, 50Hz, sinusoidal, 10A electrical supply. Uncoil the power cord, remove and discard the plastic pin cover and plug into a power socket. Connect the appliance to an earthed outlet protected by a fuse of suitable capacity. Check the power cord for damage and make sure it is not squashed or twisted when installing the dryer.
  • Page 14 INSTALLATION INSTRUCTIONS Machine specifications DH9060P Capacity (kg)* DIMENSIONS (mm) Width Depth Height** Length of drain hose 1300 ELECTRICAL Volts 220 – 240 Amps (maximum) Power consumption (W) * Capacity refers to the maximum dry weight of items the machine can dry at any one time.

  • Page 15: Control Panel

    CONTROL PANEL POWER Press to turn the dryer on/off. Keylock Touch and hold for 3 seconds to disable all buttons on the display panel, except ‘POWER’ button. This prevents accidental button presses. SmartTouch™ Rotate to select your desired drying cycle. control dial The icon illuminates to indicate the selected drying cycle.
  • Page 16 CONTROL PANEL Timed cycles (Time Dry, Rack Dry, Wool, Cool Air and Freshen) When a timed cycle is selected the machine dries for the selected time regardless of the level of moisture in the load. It is important to check the items throughout the timed programmes to avoid over drying.

  • Page 17: Drying Cycles

    DRYING CYCLES Your dryer has a number of drying cycles to suit your laundry needs. Selecting the most appropriate cycle for each particular load will help ensure you get the best result. MAX. DEFAULT LOAD CYCLE DESIGNED FOR DESCRIPTION DRYNESS SIZE LEVEL* (KG)

  • Page 18: Sorting And Loading

    SORTING AND LOADING When preparing your load there are some important things to consider: Sorting We recommend sorting your garments before placing them into the dryer. Sort into loads of similar items, and loads that will likely take similar times to dry. Heavier items (eg towels, and flannelette sheets) are best dried separately from lightweight items (eg synthetics, polyester-cotton sheets and shirts).
  • Page 19 SORTING AND LOADING Before you load Check pockets for items that could damage your clothes or get caught in the dryer. Close zippers, hooks and eyes, and other fastenings (ie fasten the openings of duvet/ doona covers), and remove loose bra wires. These may damage both your dryer and your clothes.
  • Page 20 SORTING AND LOADING Drying times Drying very small loads is inefficient. Try to dry medium to large loads. Heavier items (towels, flannelette sheets) will take longer to dry than light items (synthetics and polyester cotton sheets and shirts). Drying times can be reduced by spinning the wash load at the highest spin speed suitable for the load type in your washing machine.

  • Page 21: Getting Started Quickly

    GETTING STARTED QUICKLY Check if the lint filter is clean and the water tank is empty before every load. Ensure both are replaced correctly before using your dryer. Sort and load items into the dryer drum, ensuring no items are in the way of the door. Close the door (you will hear it click shut).

  • Page 22: Customising Drying Cycle

    CUSTOMISING DRYING CYCLE Delay Start The ‘Delay Start’ option enables you to delay the start of the drying cycle from between 5 minutes and 12 hours. Delayed start options are 5 minutes, 15 minutes, 30 minutes, 1 hour, then hourly up to 12 hours. This can be useful to time your drying to finish when you arrive home from work, or to start when power rates are lower.
  • Page 23 CUSTOMISING DRYING CYCLE DESCRIPTION OPTIONS Dryness Level Five dryness levels from When your dryer senses that the ‘Damp’ through to ‘Extra Dry’. clothes have dried to the dryness level If you want to change from the  selected, the dryer will automatically default dryness, you can choose finish the cycle.

  • Page 24: Caring For Your Dryer

    CARING FOR YOUR DRYER When you have finished using your dryer Unplug the machine from the power socket. Wipe around the door to remove any remaining condensation and foreign matter. Clear the lint filter and empty the water tank (if not set up to automatically drain). Cleaning your dryer Before you start cleaning your dryer, ensure that it is disconnected from the power (ie unplug the machine from the power socket).
  • Page 25 CARING FOR YOUR DRYER Cleaning the condenser filter and evaporator grid To maintain optimum performance of your dryer the condenser filter and evaporator grid must be cleaned. The condenser filter and lint filter lights will flash when the condenser filter requires cleaning, then turn off once you touch to start your cycle.
  • Page 26 CARING FOR YOUR DRYER Emptying the water collection tank During the drying cycle, steam condenses into water and is collected in the water tank, located at the top left of the dryer. It is important to empty the water tank after every load. If the water tank becomes full during operation, the dryer will pause, display a user prompt and beep to alert you.

  • Page 27: Before You Call For Service

    BEFORE YOU CALL FOR SERVICE User warnings Your dryer is capable of diagnosing a number of its own problems. It will sound a continuous series of beeps and display a user prompt when it has a problem that you can correct yourself. To stop the beeps sounding, touch any button on the control panel.
  • Page 28 BEFORE YOU CALL FOR SERVICE PROBLEM WARNING WHAT TO DO The door is Close the door fully and touch not closed Try opening and closing the door again. Reposition the load, making sure the load is correctly in the drum and that protruding items are not preventing the door from closing.

  • Page 29: Fault Codes

    FAULT CODES When a continuous series of beeps sounds, all the lights turn off on the control panel and a number appears on the display, a fault has occurred. The dryer will automatically enter this mode if a fault occurs. The word ‘Fault’ will be shown in the control panel display followed by a number.

  • Page 30: Troubleshooting

    TROUBLESHOOTING The following is a list of problems you may encounter when using this appliance and some suggestions that may help to correct the problem. If you still have problems, contact your Fisher & Paykel trained and supported service technician. PROBLEM POSSIBLE CAUSES WHAT TO DO...
  • Page 31 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Dryer is taking Drying cycle selected not Select an appropriate cycle for the too long / appropriate for the load. load. Refer to ‘Drying cycles’. results were Dryness level selected not Select a higher dryness level. not satisfactory appropriate for the load.
  • Page 32 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Clothes getting too Cycle selected not Ensure the cycle selected is hot or damaged appropriate for the load. appropriate for items in the load. Refer to ‘Drying cycles’. Items removed from dryer Removing items before cool down before the end of cycle cool may damage clothing if it is not down had finished.
  • Page 33 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Noises Dryer is overloaded. Remove some items from the dryer. Dryer has a fault. Continuous beeping or a musical series of beeps with a message displayed on the display. Refer to ‘Fault codes’. Beeps signalling the end End of cycle beeps can be turned off of a drying cycle.
  • Page 34 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Linting Lint filter not cleaned or Ensure the lint filter is cleaned after replaced. every cycle and replaced correctly. Refer to ‘Cleaning the filters’. Loads not sorted correctly. Dry lint givers separately from lint receivers.
  • Page 35 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Dye transfer White/light and coloured Remember to separate white/light items not separated and coloured items before placing before drying. them in the dryer. Wet items left sitting in Refer to ‘Sorting’ for tips to prevent the dryer for long periods dye transfer.

  • Page 36: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY For New Zealand and Australia only. You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this Heat pump clothes dryer covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase.
  • Page 37 MANUFACTURER’S WARRANTY Service under this manufacturer’s warranty must be provided by Fisher & Paykel trained and supported service technician. Such service shall be provided during normal business hours. This warranty certificate should be shown when making any claim. For Australian Customers This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights.

  • Page 38: Customer Care

    CUSTOMER CARE Before you call for service or assistance... Check the things you can do yourself. Refer to your User guide and check: Your product is correctly installed. You are familiar with its normal operation. You have read the ‘Before you call for service’, ‘Fault codes’ and ‘Troubleshooting’ sections at the back of the book.

  • Page 39: Registration

    CUSTOMER CARE Registration Register your product with us so we can provide you with the best service possible. To register your product visit our website: fisherpaykel.com Complete and keep for safe reference: Model Serial No. Purchase Date Purchaser Dealer Suburb Town Country...

  • Page 40: Fisherpaykel.com

    FISHERPAYKEL.COM © Fisher & Paykel Appliances 2019. All rights reserved. The product specifications in this document apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
