- Page 1 FABRIC CARE SOLUTION DRYER INSTALLATION DH9060HG1 and DH9060H1 models INSTALLATION GUIDE NZ AU...
-
Page 2: Components Required
COMPONENTS REQUIRED TOOLS Not supplied Box cutter Phillips screwdriver Level PARTS Supplied 1x Y Join 1x Straight hose 1x Cold water hose 1x Shoe Rack 3x Spare condenser foam filters 1x Drain hose extension (display models only) - Page 3 ACCESSING YOUR PRODUCT SPECIFICATIONS For full product, cabinetry and service specifications, refer to the Planning Guide. To access the Planning Guide, scan the QR code or visit fisherpaykel.com/specify. Search by appliance type, product name or model code.
-
Page 4: Prior To Installation

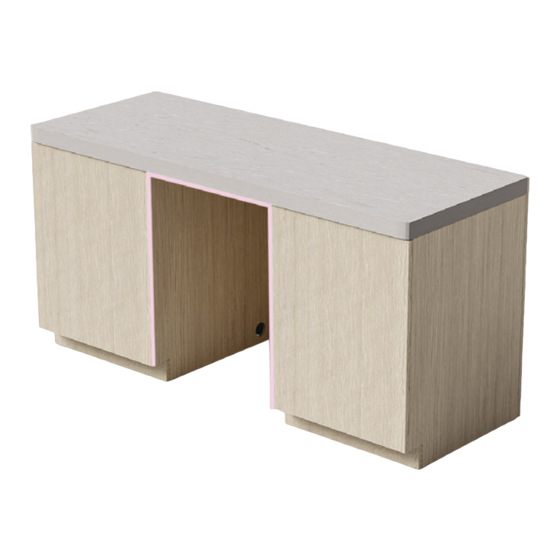

PRIOR TO INSTALLATION 1. Ensure cabinetry and servicing specifications have been met and clearances have been considered. Refer to the Planning Guide for details. fisherpaykel.com/specify 2. Ensure floor is level and clear and a finished return has been created. 3. Ensure power will remain accessible following install to allow access for any future product maintenance. - Page 5 UNPACK 1. Cut the straps and the line printed on the top of the carton. Lift to remove. Discard braces and corner posts. Remove any packaging and accessories from the drum and base packer. 2. Dispose of packaging responsibly. 3. Protect flooring before positioning dryer as close to the installation location as possible, ensuring enough...
- Page 6 REVERSE DOOR (OPTIONAL) The dryer door has reversible hinge and latch fittings and can be switched to open to the left or right, as needed. 1. Unscrew hinge, remove door and place face down on a protected surface. Remove plugs (x 8) from inner door flanges, then remove screws.
- Page 7 REVERSE DOOR (OPTIONAL) 4. Unscrew latch, and slide to remove. 5. Rotate latch and insert on opposite side of dryer. Secure with screw. Refit and secure latch cover with latch cover screws. 6. Refit door hinge and secure with hinge screws.
- Page 8 LEVEL 1. Adjust the feet until the dryer is level front to back and corner to corner. 2. Move the dryer into its final position, allowing for required clearances. 3. Recheck dryer is level, then remove from the alcove to complete connection steps.
- Page 9 CONNECT CABLES AND HOSES 1. Refer to the Planning Guide for full service information. Supply: 220 - 240V, 50Hz Service: 10A Outlet: 3-prong grounding-type Supply: Hoses provided Pressure: 50KPa (7psi) - 1MPa (150psi). Min 6 litres/min. fisherpaykel.com/specify 2. Optional: Fit the drain hose extension if dryer can be connected to a drain.
- Page 10 CONNECT CABLES AND HOSES 4. Turn off cold water tap for washer, and undo washer cold hose at tap end. 5. Connect washer and dryer straight ends to the top of the supplied Y join. 6. Connect the dryer straight hose to the bottom of the Y join.
- Page 11 CONNECT CABLES AND HOSES 7. Partially push dryer into the alcove. 8. Route the power cables and hoses through service holes. Ensure power will remain accessible following install to allow access for any future product maintenance. 9. Connect the cold hose to cold water tap and turn tap on.
- Page 12 CONNECT CABLES AND HOSES 10A. Standpipe Installations Route the drain hose through the guide and place into the standpipe. Ensure a maximum of 20mm of the hose rests in the standpipe. 10B. Spigot Installations Drill out blanking insert from the spigot. Route the drain hose through the guide and place into the spigot.
- Page 13 INSTALL DRYER 1. Push dryer into the alcove. Take care not to damage hoses or cords. 2. Check alignment and ensure required clearances are maintained. Adjust as required.
- Page 14 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
