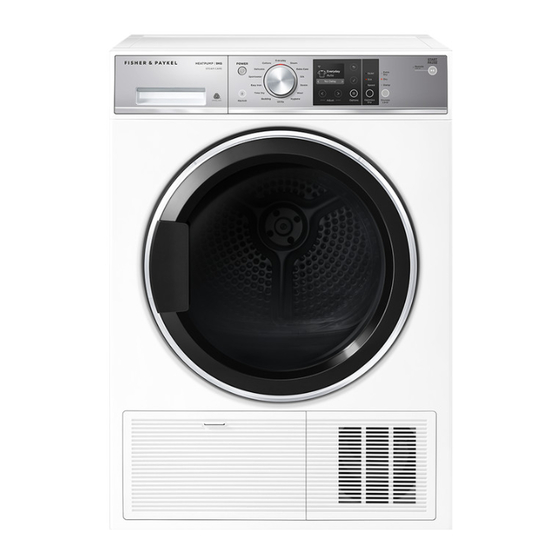

HEAT PUMP CLOTHES DRYER
DH9060FS
USER GUIDE
NZ AU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DH9060FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher & Paykel DH9060FS

Summary of Contents for Fisher & Paykel DH9060FS

  • Page 1 HEAT PUMP CLOTHES DRYER DH9060FS USER GUIDE NZ AU...

  • Page 3: Table Of Contents

    CONTENTS Safety and warnings Control panel WiFi connection & remote mode Dry cycles Dry preparation Getting started quickly Dry cycle options Customising a dry cycle Dryer settings Caring for your dryer Before you call for service Fault codes Troubleshooting Manufacturer’s warranty Customer care Registration To register your product visit our website: fisherpaykel.com/register...

  • Page 5: Safety And Warnings

    SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet box), ensure that it is positioned so that it does not come into contact with water or moisture.
  • Page 6 MODEL MAXIMUM CAPACITY (KG) DH9060FS *Capacity refers to the maximum dry weight of items the dryer can dry at any one time Never put dripping wet clothes in or on top of the dryer as excess water may cause an electrical hazard.
  • Page 7 SAFETY AND WARNINGS Do not dry curtains in your dryer. Sunlight makes them brittle and they may disintegrate during drying. Do not use the water collected in the water tank for drinking or food processing. Never run the dryer without the water tank in place. If the water tank becomes full, the tumble dryer will pause drying and will sound an alarm.
  • Page 8 SAFETY AND WARNINGS Disposal Extreme care must be taken when disposing of your old appliance to avoid hazards. When disposing of the dryer, it is recommended that the door is removed to avoid children getting trapped inside, and that the electrical cable is cut off close to the dryer.

  • Page 9: Control Panel

    CONTROL PANEL Power Press to turn the dryer ON/OFF Keylock Press to disable all buttons on the control panel, except the button. This prevents accidental button presses. POWER SmartTouch™ Rotate to select your desired drying cycle. Control Dial Red LED illuminates to indicate the selected dry cycle. Digital display Shows the following: screen...
  • Page 10 CONTROL PANEL Timed cycles When a timed cycle is selected the machine dries for the selected time regardless of the level of moisture in the load. It is important to check the items throughout the timed programmes to avoid over drying. To adjust the length of timed cycles: Select the desired cycle.
  • Page 11 CONTROL PANEL To turn your dryer on if and the dryer is powered KEYLOCK Press , then press and hold POWER for three seconds. This will activate the control panel. Dry cycles and options can now be selected. If a button is pressed while KEYLOCK activated, beeps will be heard and will flash.

  • Page 12: Wifi Connection & Remote Mode

    WIFI CONNECTION & REMOTE MODE Your appliance can be connected to your home wireless network and operated remotely using the app. Getting started Ensure your home WiFi network is turned on. You will be given step by step guidance on both your appliance and mobile device. It may take up to 10 minutes to connect your appliance.
  • Page 13 WIFI CONNECTION & REMOTE MODE Enabling remote mode Press and hold for three seconds. will appear in the REMOTE ENABLED Remote display screen. enabled Remote enabled is now enabled. Certain REMOTE MODE functions of your washer can now be accessed via the app. For safety reasons, cannot be enabled if the dryer door is open.

  • Page 14: Dry Cycles

    DRY CYCLES Your dryer has a number of dry cycles to suit your laundering needs. Selecting the most appropriate cycle for each particular dry load will help ensure you get the best dry result. MAX. DEFAULT CYCLE SUB-CYCLE DESIGNED FOR LOAD SIZE DRYNESS (KG)
  • Page 15 DRY CYCLES MAX. DEFAULT CYCLE SUB-CYCLE DESIGNED FOR LOAD SIZE DRYNESS (KG) LEVEL A longer, high heat cycle Hygiene designed to eliminate >99.9% of Extra Dry household bacteria. A low heat cycle designed for special care of washable woollen Wool² items that complies with Woolmark Apparel Care criteria.

  • Page 16: Dry Preparation

    DRY PREPARATION Sorting Sort items into loads of similar items, and loads that will likely take similar times to dry. This prevents the possibility of some items becoming over-dried whilst others are still damp. Separate coloured items from white/light items where possible, especially when new. Colour run may be an issue, especially if you intend to delay the start of the drying cycle.
  • Page 17 DRY PREPARATION Before you load Check pockets for items that could damage your clothes or get caught in the dryer. Close zippers, hooks and eyes, and other fastenings (ie fasten the openings of duvet/ doona covers), and remove loose bra wires. These may damage both your dryer and your clothes.
  • Page 18 DRY PREPARATION SHOW ONE OPTION SCREEN, Drying rack EG DRY RACK The drying rack is installed in your dryer when it leaves the factory. There are many items that would benefit from being dried on a drying rack. For example items such as hats, sneakers and delicate soft toys are items that may be damaged if they are tumbled.

  • Page 19: Getting Started Quickly

    GETTING STARTED QUICKLY Check the lint and condenser filters are clean and replaced correctly before every load. Ensure the water tank is empty or drain hose secure before using your dryer. Sort and load items into the dryer drum, ensuring no items are in the way of the door. Close the door (you will hear it click shut).
  • Page 20 GETTING STARTED QUICKLY Heavy Auto Start in 8hrs Heavy If you prefer to start the wash cycle at a later Auto time, set a delay for the start time by using Start in 8hrs ADJUST Press to start the cycle. If you wish to change a cycle or select a different option once a drying cycle has started, press...

  • Page 21: Dry Cycle Options

    DRY CYCLE OPTIONS Options All dry cycles default to the recommended settings for that cycle based on the average expected load to be dried. You can adjust and customise the dry options to create your desired cycle. WRINKLE FREE Options At the end of the cycle, the drum will rotate periodically to Wrinkle minimise wrinkling and creasing.
  • Page 22 DRY CYCLE OPTIONS To change a dry cycle option Options Wrinkle Free Options Options Options Wrinkle Wrinkle Wrinkle Free Free Free Press , the screen will show the OPTIONS default dry cycle option. Options Damp Dry Signal Options Options Options Damp Dry Damp Dry Damp Dry...

  • Page 23: Customising A Dry Cycle

    CUSTOMISING A DRY CYCLE Delay Start You can delay the start of the dry cycle between 15 minutes and 12 hours. This can be useful to time your drying to finish when you arrive home from work. Everyday Auto Start in 8hrs Everyday Auto Press the...
  • Page 24 CUSTOMISING A DRY CYCLE Optimise Dry Your dryer offers you three optimise dry modes – – allowing you SPEED, ECO QUIET to reduce noise, save energy or save time. Only one mode can be selected at a time. For clothes care reasons not all options are available on all cycles. These dry modes are available on cycles.
  • Page 25 CUSTOMISING A DRY CYCLE To set a favourite After using your dryer a few times you may discover there are some options you prefer for some cycles. You can programme your dryer to remember the dry options you prefer for each cycle.
  • Page 26 CUSTOMISING A DRY CYCLE From options Select the cycle using the control dial. Select the start time ( NO DELAY time) of your choice. DELAY START Options Favourite Options Options Favourite Favourite Scroll through using OPTIONS ADJUST Options and select .

  • Page 27: Dryer Settings

    DRYER SETTINGS Settings WiFi WiFi Allows WiFi Setup and indicates if WiFi is ON/OFF Settings: (Default), SETUP Settings Cycle information Cycle Information Displays details of what the cycles are designed for. Settings: (Default), Beeps Settings Turns on/off sounds. Beeps The sound when touching the buttons. The series of beeps that sound at the end of a cycle to alert you that the dryer has finished.
  • Page 28 DRYER SETTINGS Settings User prompts User Prompts Turns on/off the user-prompts that are not related to warnings or faults. Settings: (Default), Editing settings Dryer within can be used to adjust default settings to your preference for SETTINGS OPTIONS beeps, drum light, screen brightness, user prompts and factory reset. To change a setting Options Options...

  • Page 29: Caring For Your Dryer

    CARING FOR YOUR DRYER When you have finished using your dryer Unplug the dryer from the power socket. Wipe around the door to remove any remaining condensation and foreign matter. Clear the lint and condenser filters and empty the water tank (if not set up to automatically drain).
  • Page 30 CARING FOR YOUR DRYER To clean the door lint filter: Open the dryer door. Remove the lint filter by pulling it up and out of the filter slot. Open it out and wipe the surfaces clean with your hand or a soft cloth. Close the lint filter and place it back in the opening.
  • Page 31 CARING FOR YOUR DRYER To clean the condenser filter: Switch off the power supply and remove the power plug. Open the condenser filter cover. Turn the four condenser lock levers 90° then pull out the condenser filter. Use your hand, a cloth or a vacuum with a crevice nozzle to remove any lint build-up from the mesh surface of the filter.
  • Page 32 CARING FOR YOUR DRYER To clean the filter foam: Remove the bracket securing the foam to condenser filter. Remove the foam and vacuum lint build-up with a crevice nozzle. Replace the filter foam and secure with the bracket. The condenser filter foam should be replaced regularly, three filter foams are provided with your dryer.
  • Page 33 CARING FOR YOUR DRYER To clean the evaporator grid: With the condenser filter removed you will be able to see the evaporator grid. Cut Hazard. The surface of the evaporator has sharp edges and contact may result in injury. Handle with care when cleaning the grid and always keep blades away from fingers and body.
  • Page 34 CARING FOR YOUR DRYER Cleaning the sensors There are sensors in your dryer that detect whether the laundry is dry or not. These sensors need to be cleaned periodically (we recommend approximately four times a year). To clean the sensor: Open the door of your dryer. Allow the dryer to cool if drying has been carried out.
  • Page 35 CARING FOR YOUR DRYER Emptying the water collection tank During the drying cycle, steam condenses into water and is collected in the water tank, located at the top left of the dryer. It is important to empty the water tank after every load. If the water tank becomes full during operation, the dryer will pause, display a user prompt and beep to alert you.

  • Page 36: Before You Call For Service

    BEFORE YOU CALL FOR SERVICE User warnings Your dryer is capable of diagnosing a number of its own problems. It will sound a continuous series of beeps and display a user prompt when it has a problem that you can correct yourself.

  • Page 37: Fault Codes

    FAULT CODES When a continuous series of beeps sound, all the lights turn off on the control panel and a number appears on the display, a fault has occurred. The dryer will automatically enter this mode if a fault occurs. The word will be shown in the control panel display followed FAULT by a number.

  • Page 38: Troubleshooting

    TROUBLESHOOTING The following is a list of problems you may encounter when using this appliance and some suggestions that may help to correct the problem. If you still have problems, contact your Fisher & Paykel trained and supported service technician. PROBLEM POSSIBLE CAUSES WHAT TO DO...
  • Page 39 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Dryer is taking Drying cycle selected not Select an appropriate cycle for the too long. appropriate for the load. load. Refer to ‘Drying rack’. Results were Dryness level selected not Select a higher dryness level. not satisfactory.
  • Page 40 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Dryer is not Drain hose not connected Ensure the drain hose is connected draining to the water tank. correctly. Refer to your installation guide for guidance on draining. Water tank not in Ensure water tank is properly place correctly.
  • Page 41 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Small amount Water tank needs to Refer to ‘Emptying the water of water in be emptied. collection tank’. the drum at Environmental conditions If conditions are particularly hot, end of cycle may be affecting humid or cold, it is possible vaporised dryer operation.
  • Page 42 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Linting Lint filter not cleaned Ensure the lint filter is cleaned after or replaced. every cycle and replaced correctly. Refer to ‘Cleaning the filters’. Loads not sorted correctly. Dry lint-giving items separately from lint receivers. Also, dry similar colours together, eg light coloured items with light coloured items, dark items with dark items.
  • Page 43 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Tangling Loads not separated Try separating out larger items during loading. from smaller items. Items loaded into the Load items individually into the dryer incorrectly. dryer. Do not place folded items in the dryer. Incorrect cycle selection. Try using the cycle to EASY IRON...

  • Page 44: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY For New Zealand and Australia only. You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this heat pump clothes dryer covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase.
  • Page 45 MANUFACTURER’S WARRANTY This product has been designed for use in a normal domestic (residential) environment. This product is not designed for commercial use (whatsoever). Any commercial use by a customer will affect this product’s Manufacturer’s Warranty. Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel trained and supported service technician (refer to the ‘Before you call for service’).

  • Page 46: Customer Care

    CUSTOMER CARE Before you call for service or assistance Check the things you can do yourself. Refer to your User guide and check: 1 Your product is correctly installed. 2 You are familiar with its normal operation. 3 You have read the ‘Customising a dry cycle’, ‘Customising a dry cycle’ and ‘Troubleshooting’...
  • Page 47 CUSTOMER CARE Registration Register your product with us so we can provide you with the best service possible. To register your product visit our website: fisherpaykel.com/register Complete and keep for safe reference: Model Serial No. Purchase Date Purchaser Dealer Suburb Town Country...
  • Page 48 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
