Summary of Contents for Havis DS-PAN-1300 Series

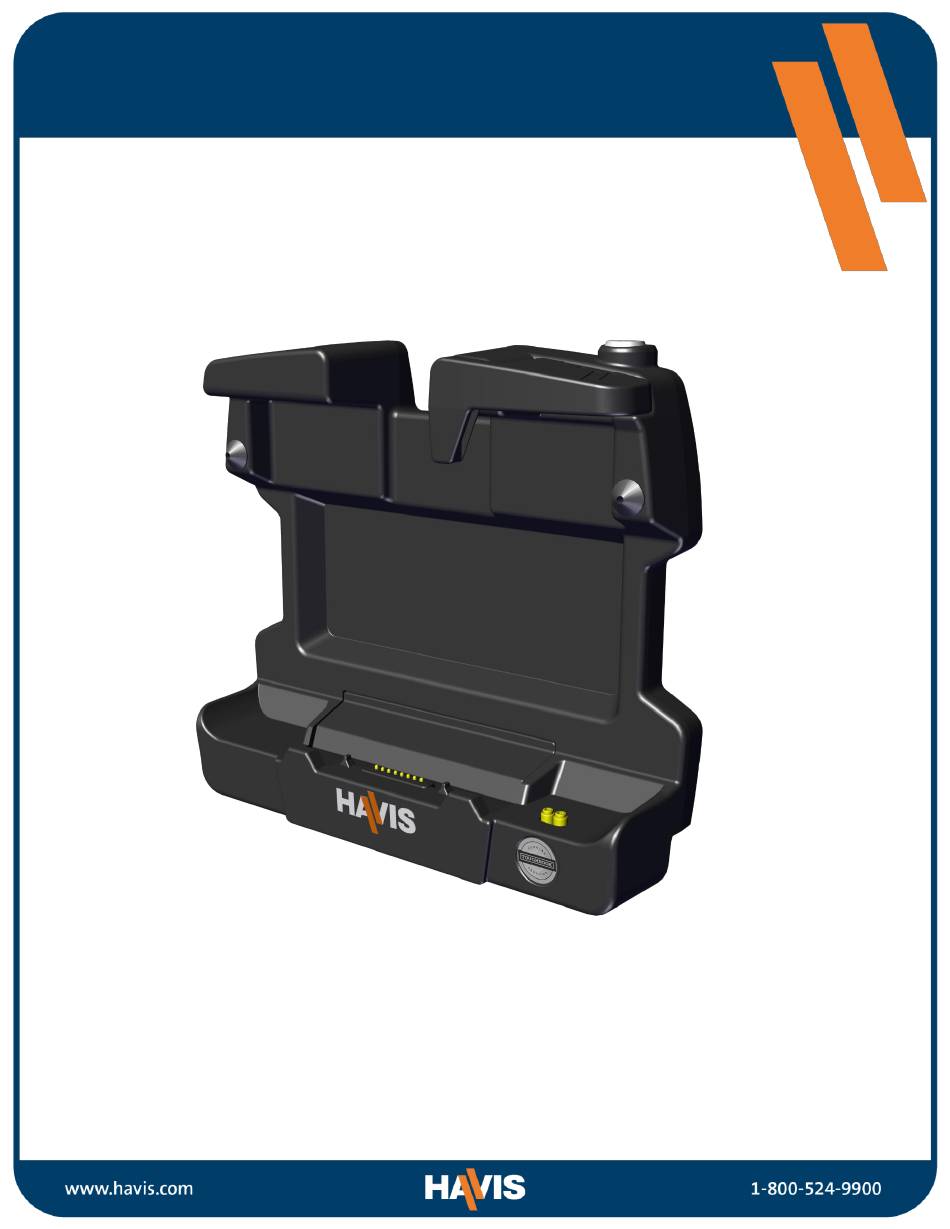

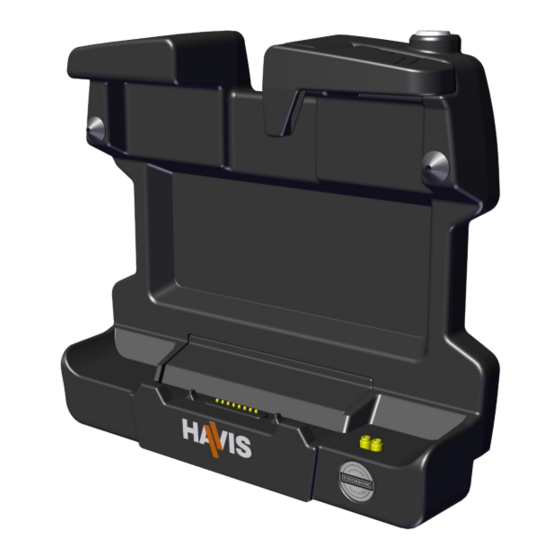

- Page 1 Owner’s Manual Havis Docking Station For Panasonic TOUGHBOOK L1 Tablet DS-PAN-1300 Series DS-PAN-1301 DS-PAN-1302 DS-PAN-1303 DS-PAN-1301-2 DS-PAN-1302-2 DS-PAN-1306 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-PAN-1300-SERIES_OMN_9-19...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-PAN-1300 Series Docking Station for the Panasonic TOUGHBOOK L1 Tablet. For questions regarding the set-up of your DS-PAN-1300 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. -
Page 3: Specifications
Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA Declares under our sole responsibility that the product: Product name: Havis Docking Station For Panasonic TOUGHBOOK L1 Tablet Only Model: DS-PAN-130X, where ‘X’ may be any alphanumeric character and which describes product options. -
Page 4: Parts Included
Parts Included Docking Station Barrel Lock Latch Handle Alignment Posts (x2) Docking Connector Pass-Through Antenna (Dual, optional) Mounting Holes VESA 75 (M4 x 0.7mm) Strain Relief Points Ports... -
Page 5: Antenna Identification
Parts Included (continued) Hardware Kit (HWK-0042) This Hardware Kit includes: 1. Zip Ties (5) 2. Keys (2) 3. M4 x 0.7 x 12mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: •... -
Page 6: Port Replication Capability
Port Replication Capability DS-PAN-1301, DS-PAN-1301-2 External Antenna USB 2.0 Power Input Antenna (TNC) Switch Optional: Part IDs DC IN 5 V ON / OFF DS-PAN-1301-2... -
Page 7: Installation
(Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10% A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218). Washer, M4 Lock Washer, M4 M4 x 0.7 x 20mm... -
Page 8: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects. -
Page 9: Operation - Docking
NOTE: Ensure a proper connection by aligning the tablet’s Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts on the Alignment Sockets on the bottom of DS-PAN-1300 Series Docking Station Panasonic TOUGHBOOK L1 Tablet Docking Station and Accessory Compatibility Standard Battery... - Page 10 Operation - Docking (continued) 1) Ensure Docking Station is unlatched by lifting Latch Handle. 2) Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station. Do not dock TOUGHBOOK L1 in reverse position or damage can occur.
- Page 11 Operation - Docking (continued) 3) Pivot tablet so it sits flush in the Docking Station and hold while lowering the Latch Handle to secure tablet in place. 4) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2).
-
Page 12: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock Docking Station using supplied key. 2) Secure tablet to avoid inadvertent ejection from Docking Station. Unlatch by lifting Latch Handle. 3) Once unlatched grab both sides of tablet, rock the top forward and carefully lift out of Docking Station, top end first. -
Page 13: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-160 10W Power Supply External in-vehicle power supply and cable for Panasonic TOUGHBOOK L1.
