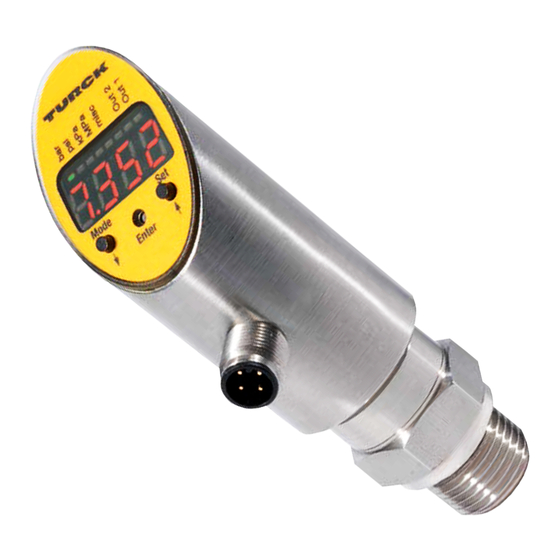

turck PS Series Quick Start Manual

Pressure sensors
Hide thumbs Also See for PS Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Your Global Automation Partner
PS SERIES
PRESSURE SENSORS
IO-Link Parameters

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for turck PS Series

Summary of Contents for turck PS Series

  • Page 1 Your Global Automation Partner PS SERIES PRESSURE SENSORS IO-Link Parameters...
  • Page 2 IO-Link Parameters Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...

  • Page 3: Table Of Contents

    Contents About these Instructions Target groups Explanation of symbols Additional documents Feedback on these instructions Notes on the Product Product identification Manufacturer and service Software-Supported IO-Link-Parameterization IO-Link Parameters General parameters Process data 4.2.1 Representation 4.2.2 Value range 4.2.3 Calculation of the pressure value General service PDU Specific service PDU –...

  • Page 4: About These Instructions

    Should you have any suggestions for a better design or any information is missing from the instructions, please send your suggestions to techdoc@turck.com. Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...

  • Page 5: Notes On The Product

    45472 Mülheim an der Ruhr Germany Turck supports you with your projects, from initial analysis to the commissioning of your ap- plication. The Turck product database contains software tools for programming, configuration or commissioning, data sheets and CAD files in numerous export formats. You can access the product database at the following address: http://www.turck.de/products/...

  • Page 6: Software-Supported Io-Link-Parameterization

    On-Request Data Objects (ORDO), the parameters can be written into the device (Write) or the device status can be read from the device (Read). Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...

  • Page 7: Io-Link Parameters

    (hexa- decimal) decimal) IO-Link revision ID Imported IO-Link version Vendor ID 1 Vendor ID 317 for Hans Turck GmbH & Co. KG IM/Vendor_ID_Table.xml Vendor ID 2 Device ID 1 Device ID (assigned by the manufacturer) Device ID 2 see table...

  • Page 8: Process Data

    If the process value IOL is given for a -1…10 bar sensor, the pressure is calculated in bar as follows: 11 bar Pressure = ( (IOL value – 1280) × ) – 1 bar 15103 – 1280 Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...

  • Page 9: General Service Pdu

    General service PDU The sensors of the PS series support data traffic via so-called SPDUs. The data is only transferred when required and on a special data channel. The SPDU transfer also makes it possible to set the parameters and configuration of the sensors.

  • Page 10: Specific Service Pdu - Overview

    -1…+1 bar 0x2000 PS003V -1…+2.5 bar 0x146D PS010V -1…+10 bar 0x09E9 PS016V -1…+16 bar 0x082D PS025V -1…+25 bar 0x0714 Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...

  • Page 11: Specific Service Pdu

    Type Measuring range Default value PS040V -1…+40 bar 0x0651 PS100R 0…+100 bar 0x0500 PS250R 0…+250 bar 0x0500 PS400R 0…+400 bar 0x0500 PS600R 0…+600 bar 0x0500 PS001A 0…+1 bar 0x0500 PS003A 0…+2.5 bar 0x0500 PS010A 0…+10 bar 0x0500 PS016A 0…+16 bar 0x0500 PS025A 0…+25 bar...
  • Page 12 400 bar – – – – – – – – 600 bar – – – – – – – – Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...
  • Page 13 Index 0x55: Measured value update time/rotating/disabling a display Value (hexadecimal) Menu item Function 0x00 50 ms measured value update time 0x01 200 ms measured value update time 0x02 600 ms measured value update time 0x03 50 ms measured value update time/display rotated 180° 0x04 r200 200 ms measured value update time/display rotated 180°...
  • Page 14 Value (hexadecimal) Function 0x0000 0.00 s 0x0001 0.01 s 0x0002 0.02 s … … 0x018F 3.99 s 0x0190 4.00 s Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...
  • Page 15 Index 0x71: Damping of the switching output see Index 0x70: Damping of the analog output Index 0x78: Switching delay of switch point of output 1 Transfer is executed according to the “big endian” specification. Damping value Value (hexadecimal) Function 0x0000 0.0 s 0x0001 0.1 s...

  • Page 16: Error Types

    129 (0x81) 255 (0xff ) EEPROM FAILURE The EEPROM failed, stable operation is not possible anymore. Replace the device! Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim/Ruhr, Germany | T +49 208 4952-0 | more@turck.com | www.turck.com...

  • Page 17: Events

    Events Code Type Name Description 30480 Error Short circuit Check installation (0x7710) 36001 Error Overload (0x8ca1) 36002 Error Underload (0x8ca2) 36003 Warning Overrun (0x8ca3) 36004 Warning Underrun (0x8ca4) 36006 Notification New maximum (0x8ca6) value recorded 36007 Notification New minimum (0x8ca7) value recorded 36009 Error...
  • Page 18 Over 30 subsidiaries and 60 representations worldwide! 100003866 | 2018/10 *100003866* www.turck.com...
