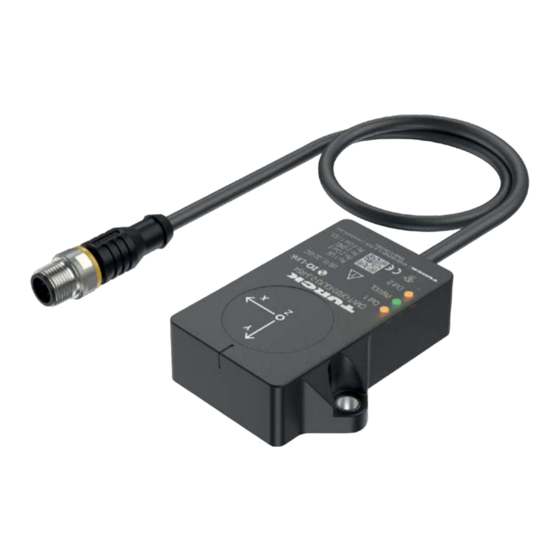

- Page 1 Your Global Automation Partner CMVT… Condition Monitoring Sensors with IO-Link Instructions for Use...
- Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 3: Table Of Contents
Operation ............................ 16 LED display ........................ 16 Setting .............................. 17 Settable functions and features ................. 17 Setting via FDT/IODD.................... 19 Setting and visualization with the Turck Vibration Monitor ........ 19 9.3.1 IO-Link master – opening the web server................ 20 9.3.2 Reading in IODD in the web server .................. 20 9.3.3... - Page 4 11 Maintenance............................ 24 12 Repair.............................. 24 12.1 Returning devices...................... 24 13 Disposal .............................. 24 14 Technical data ........................... 25 15 Turck subsidiaries – contact information.................. 27 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 5: About These Instructions
This symbol denotes actions that the user must carry out. RESULTS OF ACTION This symbol denotes relevant results of actions. Other documents Besides this document, the following material can be found on the Internet at www.turck.com: Data sheet Commissioning manual IO-Link devices IO-Link parameters manual... -
Page 6: Notes On The Product
CAD files in numerous export formats. The contact details of Turck subsidiaries worldwide can be found on p. [} 27]. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 7: For Your Safety
The product is designed according to state-of-the-art technology. However, residual risks still exist. Observe the following warnings and safety notices to prevent damage to persons and property. Turck accepts no liability for damage caused by failure to observe these warning and safety notices. -
Page 8: Product Description
Acceleration measuring range from 0…16 g on three axes Temperature measurement from -40…+85 °C, resolution 0.1 °C Protection type IP68/IP69K Communication via IO-Link Two configurable switching outputs (PNP/NPN) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 9: Operating Principle
Operating principle The condition monitoring sensors use an acceleration measuring cell with capacitive measure- ment. The monitoring of vibrations and oscillations makes it possible to detect deviations early on and take countermeasures. The process value is transferred to the controller via IO-Link for monitoring. -
Page 10: Temperature Measurement
(16-bit telegrams). The measurement range is -40…+85 °C with a resolution of 0.1 °C. The meas- urement has an accuracy of ±3 °C. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 11: Technical Accessories
Technical accessories Dimension drawing Type Description USB-2- 6825482 IO-Link adapter V1.1 with IOL-0002 integrated USB interface LED: USB-Mini CH1 (C/Q) LED: PWR CH2 (DI/DO) IN-DC Error M12 × 1 FEN20-4IOL 6814140 Compact multiprotocol I/O mod- ule for Ethernet, 4 IO-Link master channels, protection type IP20 30 [1.18] 19.5 [0.77]... - Page 12 More information on this is available from the Turck product database at www.turck.de/products in the Connectivity area. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 13: Installing
Installing NOTE Ensure the rigid installation of the device in order to prevent inaccuracies caused by vibration. Protective covers can likewise reduce accuracy. The maximum tightening torque of the screws is 3 Nm. „ Align one of the three measurement axes of the device to the direction of vibration. „... -
Page 14: Connection
2 WH out 2: switch 3 BU 1 BN out 1: switch/IO-Link 4 BK – Fig. 7: Pin assignment Fig. 8: Wiring diagram Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 15: Commissioning
Commissioning After connecting and switching on the power supply, the device is automatically ready for operation. V01.01 | 2022/03... -
Page 16: Operation
Device is operational Green flashing IO-Link communication active Out 1 Yellow Out 1 switching state (configurable) Out 2 Yellow Out 2 switching state (configurable) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 17: Setting
Setting Settable functions and features Parameter Meaning Reset device The device is restarted. Communication is interrupted momentarily. The meas- ured maximum vibration values are reset. Resetting the application The application-specific parameters are reset. Communication is not interrupted. The sensor is switched to a defined operating state. Identification parameters are not affected. - Page 18 When setting the limit values for vibration speed and temperature manually, it is possible to set values for the pre-alarm and warning or alarm for each measure- ment axis. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 19: Setting Via Fdt/Iodd
V3.3.2.0 TBEN-LL-8IOL V1.1.1.0 TBEN-S2-4IOL V3.4.1.0 Refer to the instructions for use of the relevant device for information on the Turck IO-Link masters. „ Connect the IO-Link master to the power supply. „ Connect the IO-Link master to a PC via the Ethernet interface. -
Page 20: Io-Link Master - Opening The Web Server
Set the input port of the IO-Link master as an IO-Link port. „ Open the IODD Configurator tab in the web server. Fig. 9: Web server – IODD Configurator Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 21 „ Load the device-specific IODD into the web server via Load IODD. Fig. 10: Loading the IODD V01.01 | 2022/03...
-
Page 22: Turck Vibration Monitor - Overview
The measurement axes are visualized in different colors: X axis: red Y axis: green Z axis: blue Vector sum of the three measurement axes: gray Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 23: Troubleshooting
Troubleshooting If the device does not function as expected, first check whether ambient interference is present. If there is no ambient interference present, check the connections of the device for faults. If there are no faults, there is a device malfunction. In this case, decommission the device and replace it with a new device of the same type. -
Page 24: Maintenance
Disposal The devices must be disposed of correctly and must not be included in general household garbage. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 25: Technical Data
Technical data Technical data CMVT-QR20-IOLX3-H1141 CMVT-QR20-IOLX3-0.3-RS4 100016543 100029966 Vibration – acceleration Scan rate, acceleration 6.6 KHz measurement cell RMS measuring range ±16 g RMS resolution 0.01 g at 79,6 Hz RMS linearity deviation ≤ 3 % at 79.6 Hz RMS repeatability ≤... - Page 26 Protection type IP68, IP69K Indication elements Operating voltage indication 1 × LED, green Switching state indication 2 × LED, yellow Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 27: Turck Subsidiaries - Contact Information
Turck subsidiaries – contact information Germany Hans Turck GmbH & Co. KG Witzlebenstraße 7, 45472 Mülheim an der Ruhr www.turck.de Turck Australia Pty Ltd Australia Building 4, 19-25 Duerdin Street, Notting Hill, 3168 Victoria www.turck.com.au Belgium TURCK MULTIPROX Lion d'Orweg 12, B-9300 Aalst www.multiprox.be... - Page 28 Árpád fejedelem útja 26-28., Óbuda Gate, 2. em., H-1023 Budapest www.turck.hu Turck Inc. 3000 Campus Drive, USA-MN 55441 Minneapolis www.turck.us Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 29 Over 30 subsidiaries and over 60 representations worldwide! 100031992 | 2022/03 100031992 www.turck.com...
