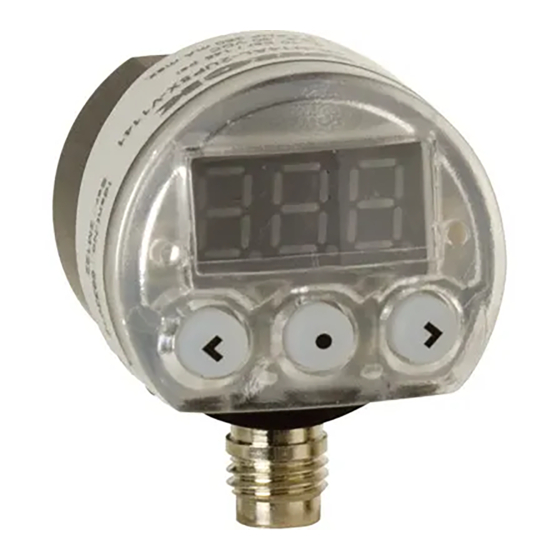

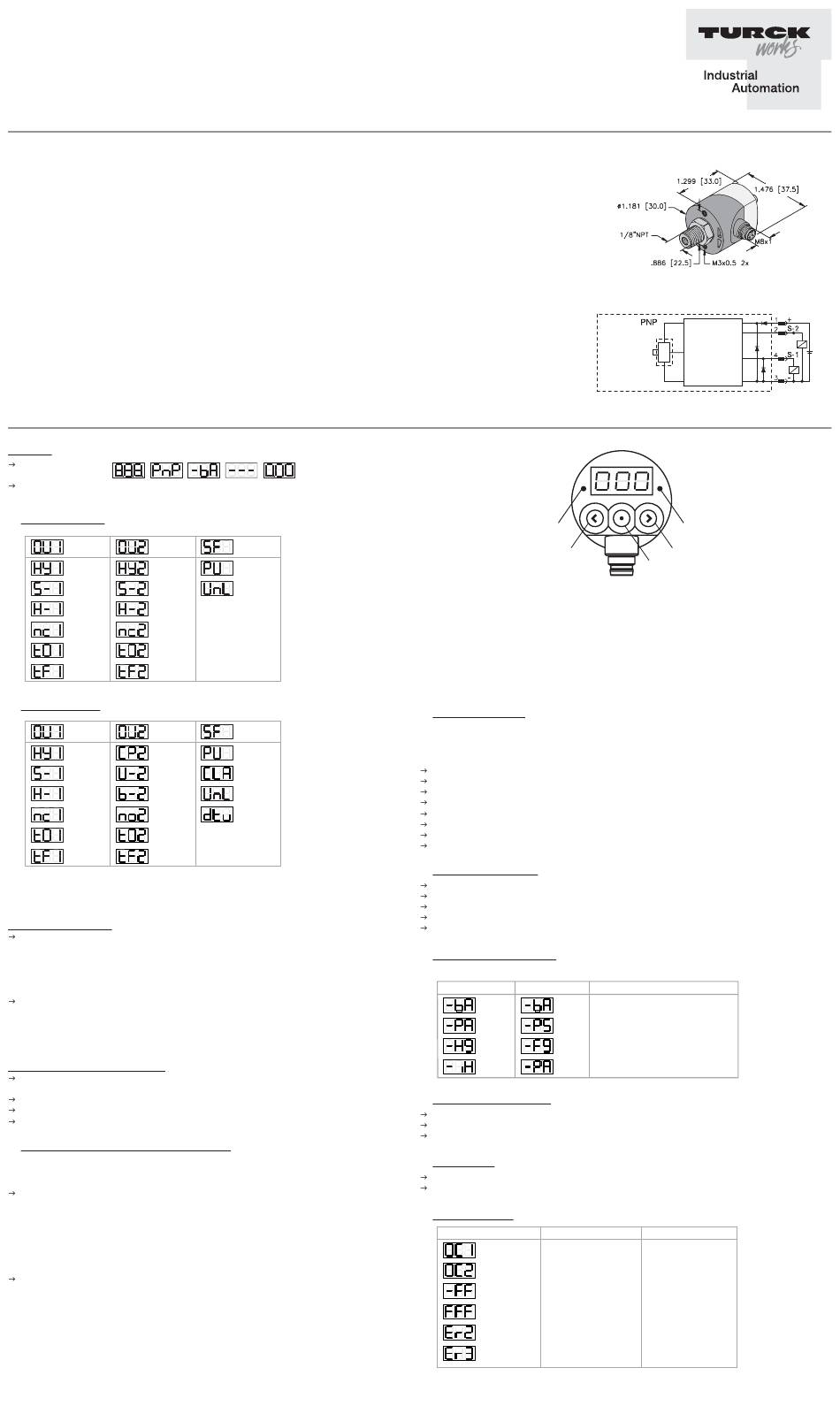

turck PK01VR N Series Quick Start Manual

PK01VR...N vacuum
PK010R...N pressure
Technical Data
Electrical Data
• Response time <2.5 ms
• Operating frequency 400 Hz
• Supply voltage 10.8-30 V, keyed residual ripple 10%
Power supply must be limited to 150 VA max
• Input current during programming <55 mA
• Input current in normal operation <35 mA
• Switchable outputs 2x PNP 125-250 mA
short-circuit protected
• Display 3 digit 7 segment display
• Ambient temperature effect: 3% of measured
value of 0 to 50°C
• Repeat accuracy: 0.2% of measured value
• Hysteresis adjustable: 0 to 100%
• Measuring range: 0 to -1 bar/0 to 10 bar
• Max. over pressure: 5 bar/16 bar
Programming
Start-Up
Apply Voltage
Segment Type
Display
Check
1. Factory Settings
Output 1 Output 2
Hysteresis Hysteresis
Mode Mode
-0.46 bar -0.79 bar
0.07 bar 0.07 bar
NC Mode NC Mode
0 sec. 0 sec.
0 sec. 0 sec.
2. Setting Options
Output 1 Output 2
Hysteresis Comparator
Mode
Mode
Upper
Switching
Switching
Threshold
Threshold
Lower
Hysteresis Switching
Threshold
Normally
Normally
Open
Closed
Closing
Closing
Delay
Delay
Release
Release
Delay
Delay
- Menu items listed under OU1 are settings specifi c to output 1
- Menu items listed under OU2 are settings specifi c to output 2
- Menu items listed under SF OU2 are general settings which infl uence both outputs.
Output setting options
Hysteresis mode
- Switching threshold
- Hysteresis
- Type of contact (normally open, normally closed)
- Closing delay
- Release delay
Comparator mode
- Upper switching threshold
- Lower switching threshold
- Type of contact (normally open, normally closed)
- Closing delay
- Release delay
Special functions settings options
Vacuum unit for PK01VR => bar, mmHg, inHg, KPa
Pressure unit for PK01VR => bar, psi, MPa
Clear All => factory setting loaded
Key lock activated = BLC, inactive = UnL
Rotate display 180°
3. General Procedure for Adjusting Settings
By following the fl ow diagram, you can move to any menu item you wish
using the three buttons (Up, Down and Mode).
For example: output 2
- Comparator mode
- Lower threshold -0.3 bar
- Upper threshold -0.5 bar
- Position of normally closed contact
- Closing delay 0 sec.
- Release delay 0 sec.
Procedure: Measure mode output
a) Briefl y press Mode button
b) Briefl y press Up button
c) Briefl y press Mode button to enter Menu level
d) Proceed to desired menu item with Up or Down
button and confi rm by pressing the Mode button.
e) In this case: confi rm HY2 with Mode button.
f ) Go to the desired setting with the Up or Down button.
In this case: CP2. Then confi rm setting with Mode button.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
Environmental Conditions
• Protection: IP 65
• Measuring medium: fi ltered compressed air,
lubricated or unlubricated, inert gases
•
Emitted interference adheres to DIN EN 50081-1
• Interference immunity adheres to DIN EN 50082-2
• High voltage test 1000 VDC 1 min
• Insulation resistance >100 MΩ at 500 VDC
• Operating temperature: 0 to +50°C
• Storage temperature: -20 to +85°C
• Permissible humidity: 10 to 90% RH
• Shock resistance: 10G XYZ
• Vibration resistance: 10 to 55 Hz, 1.5 mm,
• XYZ 2 hours
Mechanical Data
• Electrical connector: M8 4-pin
• Process connector: male 1/8" NPT
• Weight: approx. 40 g
• Wetted parts: nickel plated brass
Pressure Measure
Unit Mode
Display
Special
Functions
Pressure
Unit Bar
Unlock
The Clear All special
function loads the
factory settings, and
all previous settings
are cleared.
Special
Functions
Pressure
Unit
Factory
Settings
Unlock
Rotate
Display 180°
=> OU1 display
=> OU2 display
=> HY2 display
=> HY2 display fl ashes
Status LED
Out 1
Down
g) To adjust further settings, follow the procedure in (d) above. In this case, set U-2
(lower threshold) and confi rm with Mode button.
h) Adjust the desired setting with the Up or Down button.
In this case: set U-2 to 0.50 and then confi rm setting with Mode button.
i) Proceed in the same way for all other settings.
j) To enter another setting level, e.g. output 1 (OU1) or special functions (SF), you use
the Up or Down button to go to the menu item rEt (Return). If this is confi rmed with
the Mode button, you arrive at the previous level. In this case you would arrive at
the menu item OU2 and now you can switch between the menu items Output 1 or
Special functions with the Up or Down button in order to adjust settings.
4. Activate Key Lock
The locking function ensures that the switch settings are safeguarded against
unintentional changes or manipulation. To activate the locking function, proceed
as follows:
Starting state is Measure
Briefl y press Mode button (select level)
Press Up or Down button until SF reached
Briefl y press Mode button until menu entered
Press Up or Down button until UnL reached
Briefl y press Mode button until menu entered
Set BLC with Up or Down button
Confi rm setting with Mode button
5. Deactivate Key Lock
Briefl y press Up, Down and Mode buttons simultaneously
Briefl y press Mode button once
Set UnL with Up or Down button
Confi rm with Mode button
Return to Measure state via rEt (Return) menu item
6. Selectable Display Units
The following units of measurement are available
PK01VR Display PK010R Display
bar bar
KPa Psi
mmHg bar
inHg MPA
7. Setting Display To Zero
Operate switch in Measure mode
Depress Mode button for 3 sec.
Display is set to zero
8. Peak Values
Briefl y press Down button, the lowest measured value will be displayed for 3 sec.
Briefl y press Up button, the highest measured value will be displayed for 3 sec.
9. Error Messages
Error Messages Cause
Overcurrent Output 1 overloaded
Out1 (current > 125 mA)
Overcurrent Output 2 overloaded
Out2 (current > 125 mA)
Pressure instead
Pressure instead of vacuum
of vacuum
Applied vacuum Applied vacuum >
> range measuring range
EEPROM EEPROM defective, data
defective memory defective
Vaccuum or pressure was
Distance to
higher than +/- 3% of the
zero point >3%
measuring range
Dimensions
Circuits
Status LED
Out 2
Up
Mode
=> U-2 display fl ashes
=> Display: Pressure activated
=> Display OU1
=> Display SF
=> Display PU
=> Display UnL
=> Display UnL fl ashes
=> Display BLC fl ashes
=> Display Measure
=> Display BLC
=> Display BLC fl ashes
=> Display UnL fl ashes
=> Display UnL static
Procedure for adjusting settings
- Looking at the flow diagram, select the
menu item SF (special functions) and
briefly press Mode button.
- PU appears on the display (pressure unit).
- Select PU with Mode button. Now the
desired unit can be selected with the Up or
Down button.
- Confirm the selected unit with the Mode
button and exit the menu via the rEt
function (Return).
Remedy
Increase load impedance
Increase load impedance
Apply vacuum
Put the vacuum within the
measure range
Switch defective, replace
Reset zero point to
ambient pressure
