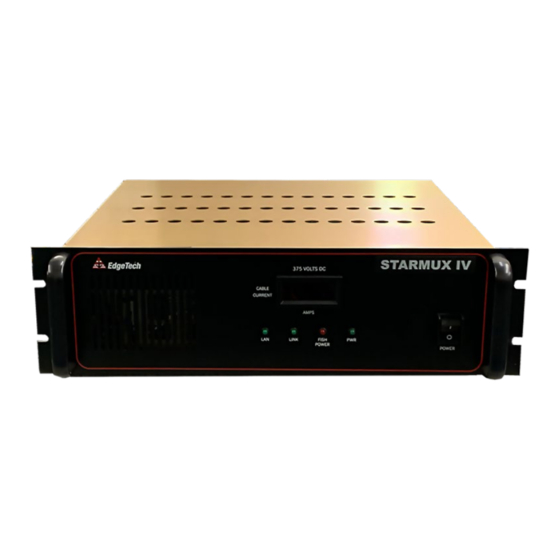

- Page 1 STARMUX IV U S E R H A R D W A R E M A N U A L 0023786_REV_C August 2022 EdgeTech 4 Little Brook Road West Wareham, MA 02576 Tel: (508) 291-0057 Fax: (508) 291-2491 www.EdgeTech.com...
- Page 2 The information, figures, and specifications in this manual are proprietary. They are issued in strict confidence on the condition that they not be copied, reprinted, or disclosed to a third party, either wholly or in part, without the prior written consent of EdgeTech. Any reproduction of EdgeTech-supplied software or file sharing is strictly prohibited.
-
Page 3: Attention - Read This First
ATTENTION – READ THIS FIRST! All personnel involved with the installation, operation, or maintenance of the equipment described in this manual should read and understand the warnings and cautions provided below. CAUTION! This equipment contains devices that are extremely sensitive to static electricity. -
Page 4: Hardware Variations And Compatibility
HARDWARE VARIATIONS AND COMPATIBILITY The Starmux IV contains both standard and proprietary hardware. EdgeTech may change the standard components due to their availability or performance improvements. Although the component manufacturers and their models and styles may change from unit to unit, replacement parts will generally be interchangeable. -
Page 5: About This Document
Purpose of this Manual The purpose of this manual is to provide the user with information on the setup and use of EdgeTech's Starmux IV. Although this manual encompasses the latest operational features of the Starmux IV, some features may be periodically upgraded. -
Page 6: Warranty Statement
All equipment manufactured by EdgeTech is warranted against defective components and workmanship for a period of one year after shipment. Warranty repair will be done by EdgeTech free of charge. Shipping costs are to be borne by the customer. Malfunction due to improper use is not covered in the warranty, and EdgeTech disclaims any liability for consequential damage resulting from defects in the equipment's performance. -
Page 7: Software Service Overview
EdgeTech provides software services free of charge. This software agreement does not address customer- specified modifications or enhancements. These services may be ordered separately. Furthermore, EdgeTech software upgrades are meant for the sole use of EdgeTech customers. Any reproduction of EdgeTech-supplied software or file sharing is strictly prohibited. -
Page 8: Returned Material Authorization
USTOMER ERVICE correspondences as well. All returned materials must be shipped prepaid. Freight collect shipments will not be accepted. EdgeTech will pay freight charges on materials returning to the customer after being evaluated and/or repaired. CAUTION! If your product is a portable topside, never attempt to ship it in the 6U case alone. - Page 9 4. Small items can be shipped prepaid directly to EdgeTech by FedEx, DHL, UPS, Airborne, etc. 5. If the equipment is the property of EdgeTech (formerly EG&G Marine Instruments Division), please insure for full value. 6. Fax one invoice, packing list, and a copy of the airway bill to EdgeTech upon shipment.
-
Page 10: Customer Service
CUSTOMER SERVICE Customer service personnel at EdgeTech are always eager to hear from users about our products. Your feedback is welcome and a valuable source of information we use to continually improve these products. We encourage you to contact EdgeTech Customer Service to offer any suggestions or to request technical... -
Page 11: Company Background
USBL positioning systems, and bathymetric systems—that have become standards in the industry. EdgeTech has also consistently anticipated and responded to future needs through an active research and development program. Current efforts are focused on the application of cutting-edge CHIRP and acoustic... -
Page 12: Table Of Contents
3.3 Starmux IV Control, Indicator, and Connection Configurations ........... 3-5 3.3.1 Starmux IV Controls, Indicators, and Connections ..............3-6 3.3.2 Starmux IV and EdgeTech 2U Computer Controls, Indicators, and Connections ....3-7 3.4 Connecting the System Components ..................3-11 3.4.1 Connecting the Starmux IV to a Computer ................3-11 3.4.2 Connecting and Attaching the Tow Cable to the Towfish ............ - Page 13 xiii 3.4.4 Connecting a FSK Trigger ...................... 3-13 3.5 Activating the Unit ........................3-14 4.0: MAINTENANCE ........................4-15 5.0: TROUBLESHOOTING ....................... 5-16...
-
Page 14: List Of Figures
Figure 2-1: Starmux IV ICD (0022246) ......................2-3 Figure 2-2: Starmux IV in 6U Case ICD ....................... 2-4 Figure 3-1: Starmux IV Front and Rear Panel Controls, Indicators, and Connections ....... 3-6 Figure 3-2: Labeled Front Panels of Starmux IV Rackmount ..............3-8 Figure 3-3: Labeled Rear Panels of Starmux IV Rackmount ............... - Page 15 LIST OF TABLES Table 2-1: Starmux IV Configuration Specifications ................... 2-2 Table 3-1: Starmux IV Front and Rear Panel Controls, Indicators, and Connection Descriptions ..... 3-7 Table 3-2: EdgeTech 2U Computer Controls, Indicators, and Connections Descriptions ......3-10 Table 3-3: Reserved IP Numbers By System and Component ..............3-12...
-
Page 16: Overview
It can be bought independently, combined with an EdgeTech Computer in a rugged 6U case, or as a component of a complete EdgeTech sonar system. The Starmux IV has replaced the Starmux III digital link. -
Page 17: Specifications
2.0: SPECIFICATIONS Starmux IV Digital Link Rack Mount (Starmux IV DL and 2U Computer in 6U Case) 13.2 cm (5.2 in.) high 76.2 cm (30 in.) high Size 48.2 cm (19 in.) wide 76.2 cm (30 in.) wide 50.5.2 cm (20 in.) deep 64.9 cm (23.37 in.) deep... -
Page 18: Mechanical Drawings
2.1 Mechanical Drawings Figure 2-1: Starmux IV ICD (0022246) -
Page 19: Figure 2-2: Starmux Iv In 6U Case Icd
Figure 2-2: Starmux IV in 6U Case ICD... -
Page 20: Setup And Activation
Discover software manuals. 3.1 Unpacking and Inspecting Carefully unpack the Starmux IV and check the packing list to ensure that all items are present. If any items are missing, report it to . Likewise, if any items have been damaged during... -
Page 21: Starmux Iv Controls, Indicators, And Connections
Starmux Power Switch LAN, LINK, Fish Power, Cable Fault Indicator Lights AC Fuse Power Switch FSK Sync Data Ethernet Port Sea Cable Connector Connector Grounding Line VAC Connector Figure 3-1: Starmux IV Front and Rear Panel Controls, Indicators, and Connections... -
Page 22: Starmux Iv And Edgetech 2U Computer Controls, Indicators, And Connections
3.3.2 Starmux IV and EdgeTech 2U Computer Controls, Indicators, and Connections The Starmux IV and EdgeTech 2U computer are mounted in a rugged 6U case. Components can be removed and rack-mounted if desired. The Starmux IV and Computer controls, indicators, and connectors are described in 3-2, respectively. -
Page 23: Figure 3-2: Labeled Front Panels Of Starmux Iv Rackmount
Digital Current Meter Display Power Indicator Light LAN, LINK, Fish Power, Cable Fault Indicator Lights Starmux Power Switch CPU Power and Reset DVD/RW Drive USB Connectors Figure 3-2: Labeled Front Panels of Starmux IV Rackmount... -
Page 24: Figure 3-3: Labeled Rear Panels Of Starmux Iv Rackmount
Data Ethernet Connector AC Fuse Power Sea Cable Connector Switch Grounding FSK Sync Line VAC Video Card Connector PC COM-1 Connector Power Switch PC COM-3 USB Connectors Ethernet Connectors Figure 3-3: Labeled Rear Panels of Starmux IV Rackmount... -
Page 25: Table 3-2: Edgetech 2U Computer Controls, Indicators, And Connections Descriptions
Table 3-2: EdgeTech 2U Computer Controls, Indicators, and Connections Descriptions NOTE: The Starmux IV Digital Link will automatically switch off power in the event of an extreme overcurrent. To reactivate the power, turn the power switch off and then on again. Only use a designated, uninterrupted power source to prevent this from happening. -
Page 26: Connecting The System Components
3.4.1 Connecting the Starmux IV to a Computer The Starmux IV Topside digital link and computer are physically connected by an Ethernet cable plugged into the Starmux’s rear panel Data Ethernet Connector and an Ethernet port on the computer's rear panel. -
Page 27: Figure 3-5: Windows Manual Ip Properties Window
3-12 A data connection between the computer and Starmux IV digital link configured setting computer's network interface card IPv4 address. This will preconfigured if you have purchased the Starmux IV with an EdgeTech computer. If you are connecting your own computer, you must manually set the IPv4 address of your computer to 192.9.0.nnn,... -
Page 28: Connecting And Attaching The Tow Cable To The Towfish
Always connect the tow cable to the towfish first. The tow cable connector is connected to the Sea Cable Connector on the rear panel of the Starmux IV. Sea Cable Connector Figure 3-6: Starmux IV Rear Panel Tow Cable Connector 3.4.4 Connecting a FSK Trigger... -
Page 29: Activating The Unit
To activate the Starmux IV Digital Link System: 1. Turn the computer and launch the Discover application. 2. Turn on the line power switch on the rear panel of the Starmux IV Digital Link. This switch can be left in the position at all times if desired. -
Page 30: Maintenance
4-15 4.0: MAINTENANCE The Starmux IV is rigidly built and requires little maintenance. Occasional cleaning of the Starmux IV and computer cooling fan vents by blowing the dust out with canned air may prevent overheating and aid in extending the unit's life. Beyond this, no maintenance is required. -
Page 31: Troubleshooting
The POWER switch in the front Verify that both POWER or rear of the unit is not turned switches are ON. Verify that the Starmux IV is The green PWR indicator does connected to AC power. Check not illuminate when the unit is No AC power. -
Page 32: Table 5-1: Starmux Iv Troubleshooting Guide
"Network," the displayed topside). address is 192.9.0.101 with "Port" set to 1700. Verify the tow vehicle using a different digital link. Verify the The tow vehicle is faulty. digital link with a different tow vehicle. Table 5-1: Starmux IV Troubleshooting Guide...
