Titan Fitness NEMESIS CFNTLTNR300 Operator's Manual

Titan Fitness NEMESIS CFNTLTNR300 Operator's Manual

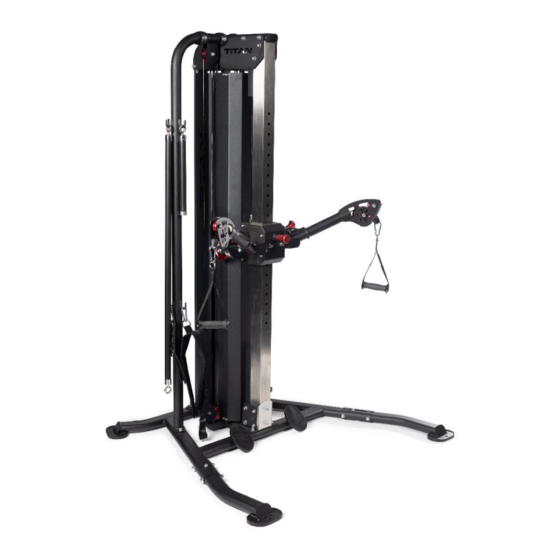

Functional trainer

Advertisement

Quick Links

NEMESIS
CFNTLTNR300
401464
TM
FUNCTIONAL TRAINER
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEMESIS CFNTLTNR300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Titan Fitness NEMESIS CFNTLTNR300

  • Page 1 NEMESIS FUNCTIONAL TRAINER CFNTLTNR300 401464 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2 PARTS DIAGRAM / EXPLODED VIEW...
  • Page 3: Weight Plate

    DESCRIPTION DESCRIPTION RIGHT FRONT BASE BASE FRAME (35) FRAME MAIN FRAME (41) FRONT FIXING PLATE UPRIGHT FRAME (47) WEIGHT PLATE (14) RIGHT COVER (62) HANDLE LEFT FRONT BASE (34) FRAME ASSEMBLY INSTRUCTIONS STEP 1 A. Assemble the Left Front Base Frame (34) on Base Frame (1), using Flat Washer Φ11*Φ20*2 (86), Spring Washer Φ10 (90), Nut M10 (93), Hex Bolt M10*105 (71) and Hex Bolt M10*20 (101).
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 2 A. Remove the Bolts, Washer and Nut form the Main Frame (2). B. Connect Main Frame (2) and Base Frame (1), using Flat Washer Φ11*Φ20*2 (86), Spring Washer Φ10 (90), and Hex Bolt M10*25 (78). And then reinstall the bolt that was removed earlier.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 3 A. Connect Upright Frame (3) and Main Frame (2), using Flat Washer Φ11*Φ20*2 (86), Spring Washer Φ10 (90), Nut M10 (93), Hex Bolt M10*30 (77) and Hex Bolt M10*25 (78). TIGHTEN ALL THE BOLTS.
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 4 A. Remove the Guide Rod Bushing (45), Top Weight Stack (48), and Support Frame (37), then fixing the Guide Rod on Rear Support (2). B. Tilt the Guide Rod outward, then install the Weight Stack (47) on the Guide Rod, Reinstall the Top Weight Stack (48) and Guide Rod Bushing (45).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 5 Connect Right Cover (14) with logo at top to Main Frame (2), using Flat Washer Φ8.4*Φ24*2 (97), Spring Washer Φ8 (91), Rubber Bumper (61) and Hex Bolt M8*65 (83). TIGHTEN ALL THE BOLTS AND ADJUST MACHINE SMOOTHLY BEFORE USE. MAIN FRAME RIGHT COVER...
  • Page 8 FULL PARTS DIAGRAM / EXPLODED VIEW...
  • Page 9: Floor Mat

    DESCRIPTION DESCRIPTION (52) BASE FRAME Φ19 METAL BUSHING (53) MAIN FRAME RUBBER PAD (54) UPRIGHT FRAME BUFFERED WASHER (55) SLIDING FRAME RUBBER BAFFLE (56) ADJUSTABLE FRAME STOPPER 30*70*20 (57) SWING ARM FRAME END CAP 40*80*2.5 (58) PULLEY FRAME FLOOR MAT SWING ARM FRONT (59) TAPERED RUBBER BUMPER...
  • Page 10 (26) (77) Φ50 PULLEY HEX BOLT M10*30 (27) (78) ROLLER HEX BOLT M10*25 (28) (79) SPACER BUSH Ф12*Ф6*16 HEX BOLT M10*20 (29) (80) BEARING PULLEY HEX BOLT M6*20 (30) (81) CABLE Ф5*10690 HEX BOLT M6*15 (31) (82) CABLE Ф5*1630 HEX BOLT M5*10 DOUBLE THREADED SHAFT (32) (83)
  • Page 11 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
  • Page 12 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
