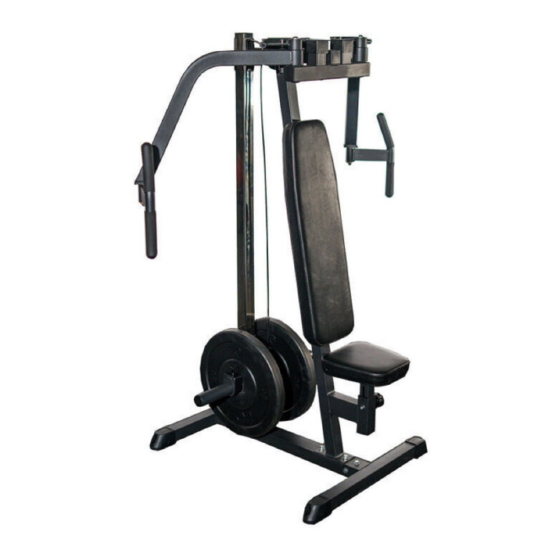

PLATE-LOADED FLY MACHINE
CBFLY
400923
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit. For an Operator's Manual and Decal
Kit in French or Spanish Language, please see your dealer.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Titan Fitness CBFLY
Summary of Contents for Titan Fitness CBFLY
- Page 1 PLATE-LOADED FLY MACHINE CBFLY 400923 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 DESCRIPTION DESCRIPTION BASE FRAME (24) PIPE SLEEVE Φ50 BACK CUSHION FRAME (25) HOLLOW SLEEVE SEAT CUSHION FRAME (26) STOP COLLAR UPRIGHT FRAME (27) RUBBER BUMPER Φ38* Φ7*15 METAL BUSH Φ38* Φ32* SUPPORT FRAME (28) Φ25.2*18 SLIDING FRAME (29) PULLEY Φ114 LEFT ARM FRAME (30) END CAP Φ50*2...
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1: Connect BACK CUSHION FRAME 2) CONNECTING FRAME (11) and UPRIGHT FRAME (4) using FLAT WASHER (38), NUT M10 (39) and CARRIAGE BOLT M10*65 (37). STEP 1 STEP 2 STEP 2: Fix BASE FRAME (1) on CONNECTING FRAME (11) using FLAT WASHER (38) and HEX BOLT M10*25 (44)
- Page 5 ASSEMBLY INSTRUCTIONS STEP 3: Plug SLIDING FRAME (6) into UPRIGHT FRAME (4). STEP 3 STEP 4 STEP 4: Connect BACK CUSHION FRAME (2), SUPPORT FRAME (5), and UPRIGHT FRAME (4), using FIXING PLATE (19), FLAT WASHER (38), NUT M10 (39) and HEX BOLT M10*70 (41).
- Page 6 ASSEMBLY INSTRUCTIONS STEP 5: Fix LEFT & RIGHT ARM FRAME (7 & 8), BEARING WASHER (18), and CAM (9) on SUPPORT FRAME (5), using FLAT WASHER (36), SPRING WASHER (42), and HEX BOLT M10*20 (43). STEP 5 STEP 6 STEP 6: Fix HANDLE BAR (10) on LEFT &...
- Page 7 ASSEMBLY INSTRUCTIONS STEP 7: Fix SEAT CUSHION (11) on SEAT CUSHION FRAME (3), using HEX BOLT M10*25 (26) and FLAT WASHER (24). Fix BLACK CUSHION (6) on MAIN FRAME (1), using HEX BOLT M10*25 (26) and FLAT WASHER (24). STEP 7 STEP 8 STEP 8: Loosen SCREW M8*8 (46) on CAM (9), insert one side of CABLE (20) into CAM (9), then tighten...
- Page 8 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 9 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
