SPECIFICATIONS:
Model ........................................ 249CP24
Frequency Range ...................... 244 To 254 MHz
*Gain .......................................... 14.74 dBic
Front to back .............................. 20 dB Typical
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.5:1 Typical
Input Connector .......................... "N" Female
Power Handling .......................... 1.5 kW
FEATURES:

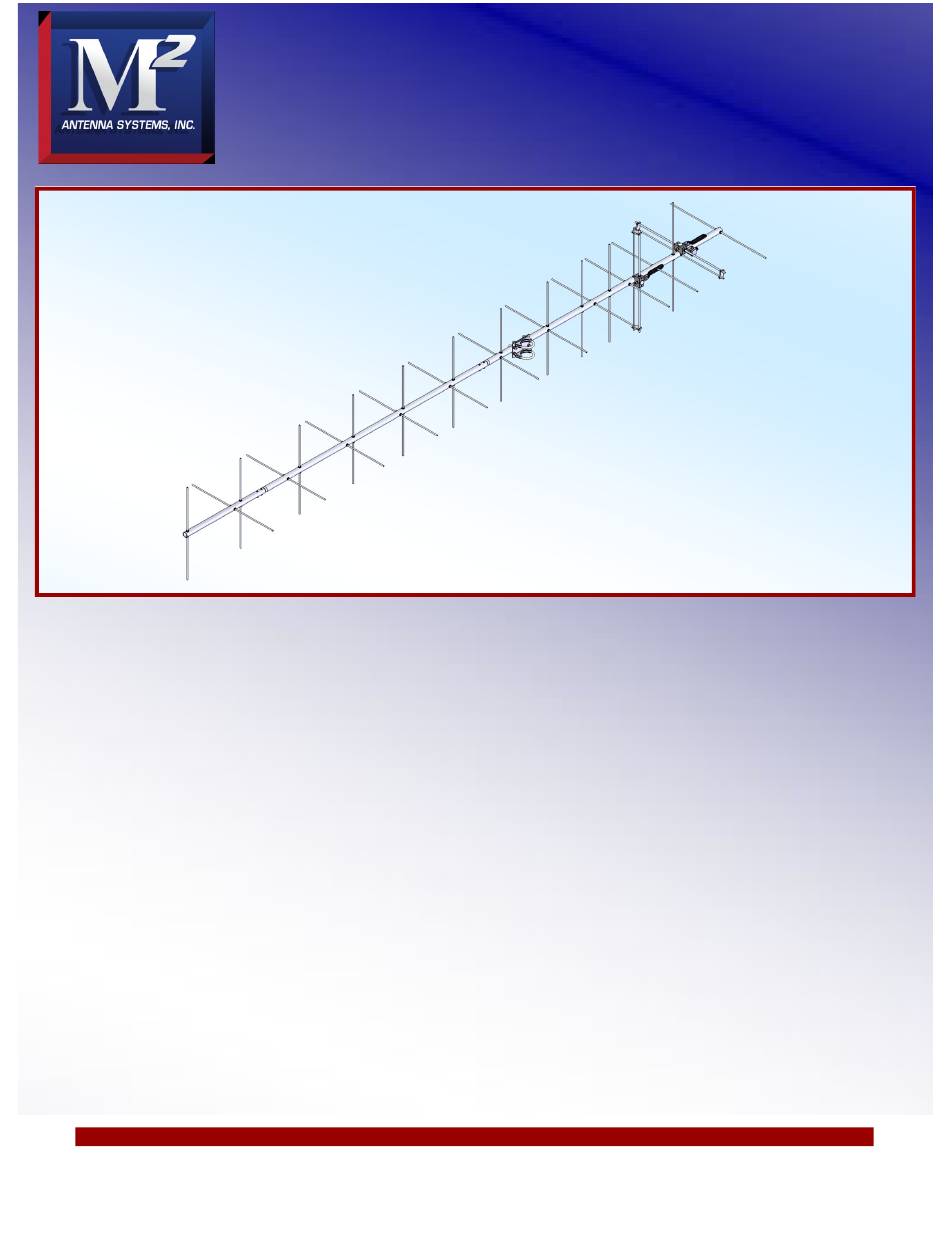

The 249CP24 is high performance circular polarized antenna with a remarkably clean pattern. The pattern is
important in order to match the antenna's noise temperature with modern low noise preamps. This antenna is ideal
for satellite work but is also excellent for terrestrial uses.
The CNC machined driven element module is O-ring sealed and weather tight for low maintenance and long-term
peak performance. Internal connections are encapsulated in a space-age silicone gel that seals out moisture and
improves power handling. The 3/16" 6061-T6 rod elements are centered to minimize interaction and maintain good
ellipticity. Insulators are UV stabilized and locked in place with stainless keepers. Rugged construction,
uncompromising performance for the boom length.
M2 Antenna Systems, Inc.
Model No: 249CP24
*Subtract 2.14 from dBi for dBd
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2022 M2 Antenna Systems Incorporated
Boom Length / Dia ..................... 153" / 1"
Maximum Element Length ......... 23"
Turning Radius: ......................... Call
Stacking Distance ...................... Call
Mast Size ................................... 1-1/2" to 2" Nom.
Wind area / Survival .................. 0.89 Sq. Ft. / 100 MPH
Weight / Ship Wt. ....................... 7 Lbs. / 9 Lbs.
08/22/22
Rev.01
Advertisement
Table of Contents
Related Manuals for M2 Antenna Systems 249CP24
Summary of Contents for M2 Antenna Systems 249CP24
- Page 1 *Subtract 2.14 from dBi for dBd FEATURES: The 249CP24 is high performance circular polarized antenna with a remarkably clean pattern. The pattern is important in order to match the antenna’s noise temperature with modern low noise preamps. This antenna is ideal for satellite work but is also excellent for terrestrial uses.
- Page 2 249CP24 DIMENSION SHEET...
- Page 3 249CP24 ASSEMBLY MANUAL ASSEMBLY INSTRUCTIONS FOR THE 249CP24 Before beginning assembly, read over the parts list and check for missing or damaged parts. Contact the M2 Antenna Systems, Inc. directly, (559) 432-8873 if any discrepancy is found. Tools required: A medium size flat blade screwdriver, an 11/32 nut driver or equivalent, a 1/2 inch wrench or nut driver, a 7/16 inch wrench and a tape measure.
- Page 4 249CP24 ASSEMBLY MANUAL 11. When all the elements in one plane are in place, start at one end using a tape measure. Center each element to 1/16 inch or better. We recommend you DO NOT install the keepers at this time, just center each element.
- Page 5 249CP24 PARTS & HARDWARE 249CP24 PARTS LIST DESCRIPTION QTY. Boom section, 1” x 0.058 x 60" SOE ........2 Boom section, 1” x 0.058 x 38" PLAIN ........ 1 Elements, 3/16" Alum. Rod x (See Dim Sheet) ....24 Driven Element Block Assembly .......... 2 Junction Block Assembly (SADE0065) .......
