SPECIFICATIONS:
Model ......................................... 222M HO LOOP
Frequency Range ....................... 220 To 224 MHz
Gain, Typical @ 84" ................... 4.75 dBd @ 7 deg.
Gain, 2 Stack @ 84" & 117" ....... 8.2 dBd 7 deg.
Polarity ..................................... Horizontal Omni
Impedance ................................. 50 Ohms, Unbalanced
Power Handling. ......................... 800W, 1.5kW for Stack
FEATURES:
The new 222 MHz HO loop provides easy SSB and CW communications out to 200 miles or more. HO LOOPs pro-
duces an omnidirectional, HORIZONTALLY polarized signal ideal for mobile and base operations. Horizontal polarity per-
mits the HO loop to pick up 5+dB of ground gain that verticals can't. As with most horizontally polarized antennas, perfor-
mance improves dramatically with height above ground. By stacking two HO LOOPS, another big gain jump occurs.
Physically, the 222 HO loop is a 7.75" square, size loop, fabricated from two 3/8" dia. aluminum tubes to minimize losses.
The sealed feed block provides weather protection with minimum wind drag. The heart of this unique design is the short-
ed stub matching to a 50 ohm coaxial feedline. Mounting is via a single 3/8" hole that is standard for most mobile hard-

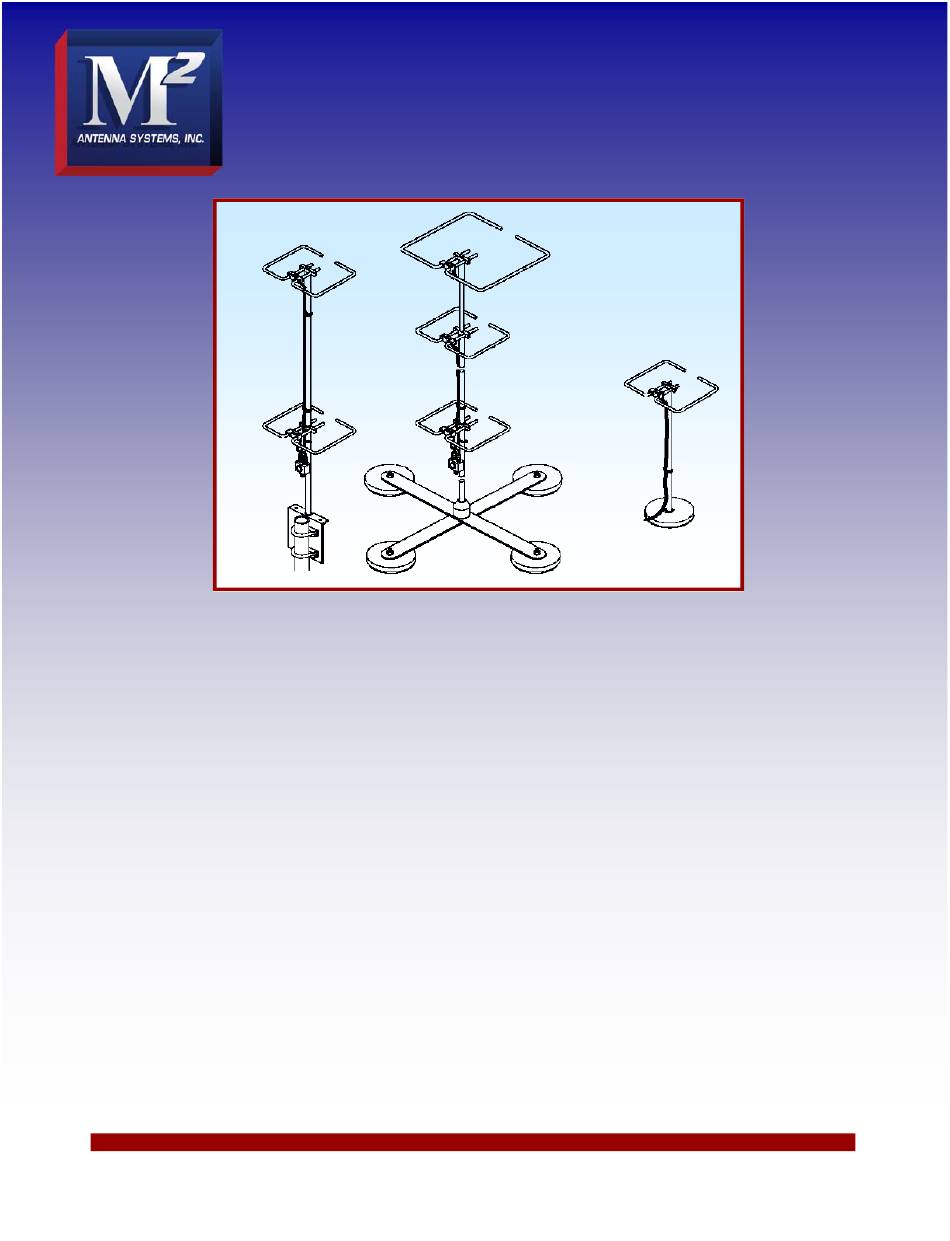

ware. For enhanced performance, add a second HO LOOP and STACKING KIT, it has all you need, phasing lines, "T"
junction block, upper and lower 1/2 " and 5/8" mast sections. For easy base-station installation use the optional wall /
mast mounting bracket and U-bolts. For a powerful mobile signal, stack an array of HO loops on our optional "BIG FOOT",
mag-mount (shown above). Use, the optional 5" magnet and 18" mast for single band mobile operation.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 222 HO LOOP
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2017 M2 Antenna Systems Incorporated
Feed Connector .......................... SO-239
Mounting ..................................... 3/8-24
Vehicle Mounting Height ............ 18" or more
Stacking Separation ................... 33" to 36"
Wind Area ................................... 0.02 sq ft.
Weight ........................................ 12 oz.
07-20-17
Rev.02
Advertisement
Table of Contents
Related Manuals for M2 Antenna Systems 222 HO LOOP
Summary of Contents for M2 Antenna Systems 222 HO LOOP
- Page 1 By stacking two HO LOOPS, another big gain jump occurs. Physically, the 222 HO loop is a 7.75” square, size loop, fabricated from two 3/8” dia. aluminum tubes to minimize losses. The sealed feed block provides weather protection with minimum wind drag. The heart of this unique design is the short- ed stub matching to a 50 ohm coaxial feedline.
- Page 2 222 HO LOOP ASSEMBLY MANUAL 1.Insert the 1/4-20 x 1/4" set screws a few threads into the two connector blocks. Use the 1/8" Allen wrench provided. Insert the 1/4-20 x 1/4" set screws a few threads into the ends of the shorting bar.
- Page 3 222 HO LOOP ASSEMBLY MANUAL...
- Page 4 222 HO LOOP STACK KIT Mount both antennas with no phasing cables installed. Make sure the feed connectors are facing each other and the larg- er feed blocks are on the opposite side on each anten- na. (2M and 222 only). Creating a 180°phase shift.
- Page 5 MOUNTING & OPTIONAL KITS UNIVERSAL MAST BRACKET KIT (PT# FGMASTBRKTKIT) SIDE MOUNT TOP MOUNT STACKING KITS 6M, 2M, 222, 432 BIG FOOT MAG HO LOOP MAG MOUNT (PT# FGBIGFOOT) (PT# FGHOMAGKIT)
- Page 6 222 HO LOOP PARTS & HARDWARE HO LOOP, STANDARD PARTS LIST DESCRIPTION H.O. LOOP HALF H.O. FEED ASSEMBLY WITH SO-239 CONN H.O. SHORTING BAR SET SCREW, 1/4-20 X 1/4 S.S. ALLEN WRENCH, 1/8 BOLT, 3/8-24 X 1” SS FLAT WASHER, 3/8 SS...
