SPECIFICATIONS:
Model ........................................ 2M5-440XP
Frequency Range ...................... 144-148 / 430-450 MHz
*Gain 2M / 440 ........................... 11.14 / 14.14 dBi
Front to back 2M / 440............... 15 dB / 25 dB
Feed Impedance........................ 50 Ohms Unbalanced
VSWR ........................................ 1.3:1
Connectors................................. "N" Female
Power Handling 2M / 440 .......... 1.5 kW / 750W
FEATURES:

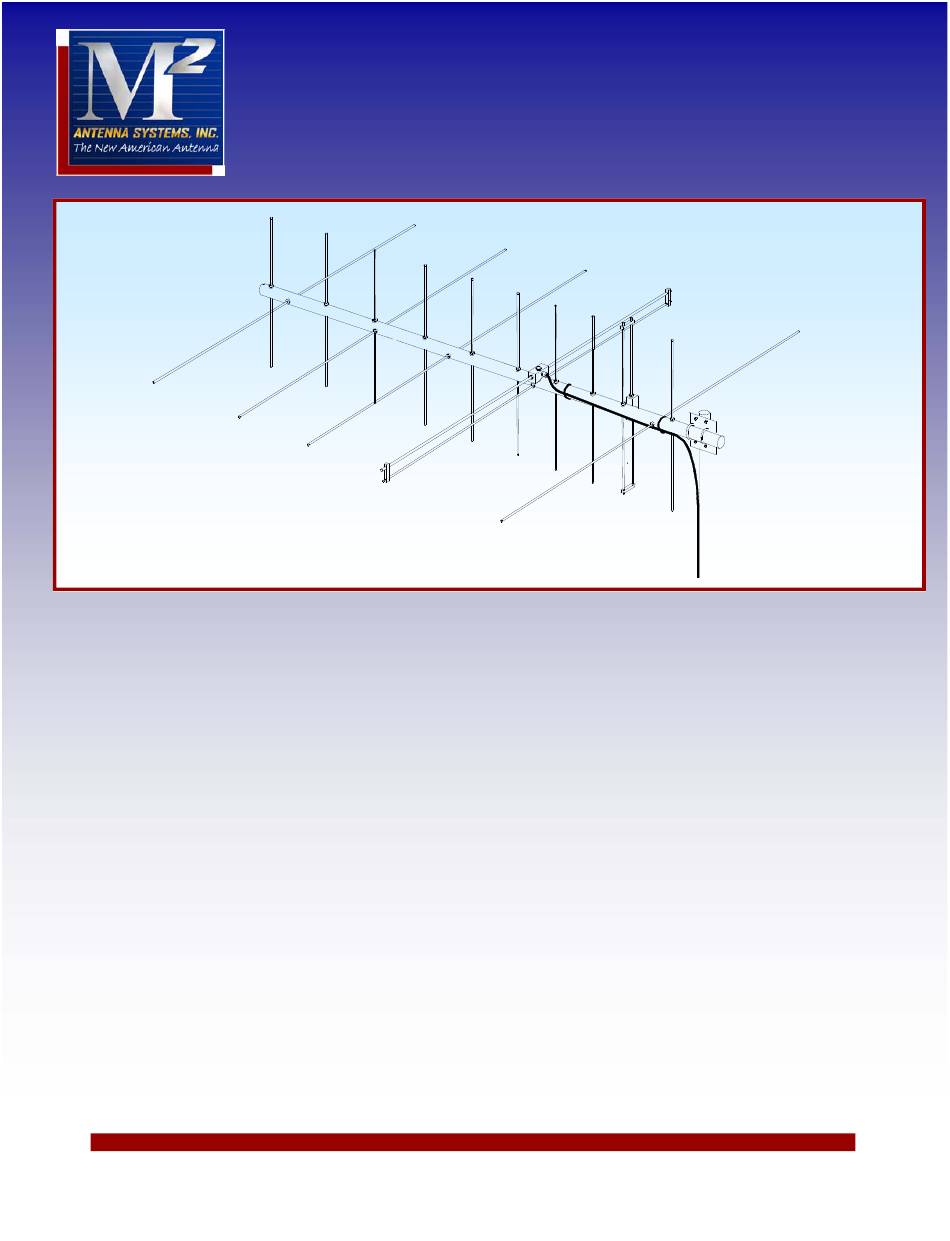

The 2M5-440XP is ideal for linking repeaters and remote bases utilizing both 2 meters and 440 MHz. Elements
are cross polarized to avoid the severe performance compromises on 440 MHz common to other dual band antennas that
have all elements in the same polarity. The XP also works well on the OSCAR frequencies and is handy wherever dual
band capability and compact size are required. Recently, with PACKET users finding horizontal polarization better on 2
meters, it has become even more useful.
Construction is designed for long term mechanical and electrical integrity. The heart of this antenna is the CNC-
machined Driven Element Block. Connectors are O-ring sealed and the internal connections are encapsulated in a space-
age silicone gel with nearly 4 times the dielectric strength of air. Balun connectors are triple sealed and nut-sealed at the
block connectors. Elements are 3/16" 6061-T6 aluminum rod, centered through the boom on UV stabilized insulator
buttons. All hardware except U-bolts is stainless steel (S.S. nuts and lockwashers are supplied for them, too).
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 2M5-440XP
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2011 M2 Antenna Systems Incoporated
Boom Length / Dia ..................... 60" / 1"
Maximum Element Length ......... 40"
Turning Radius:.......................... 70"
Stacking Distance ...................... Call Factory
Mast Size ................................... 1-1/2" to 2" Nom.
Wind area / Survival................... 1.1 Sq. Ft. / 100 MPH
Weight / Ship Wt. ....................... 5.5 Lbs. / 7 Lbs.
08/10/11
Rev.00
