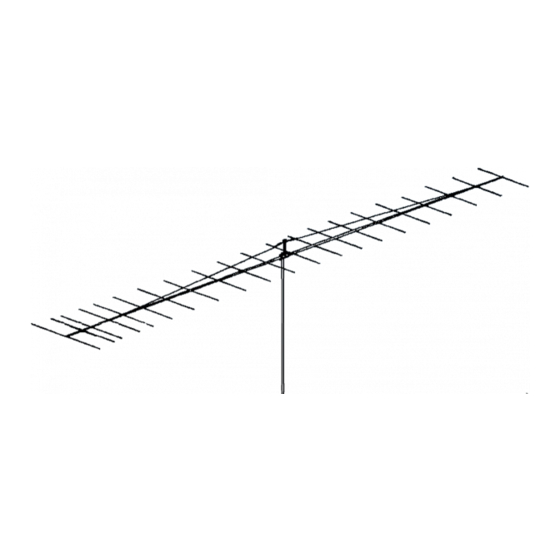

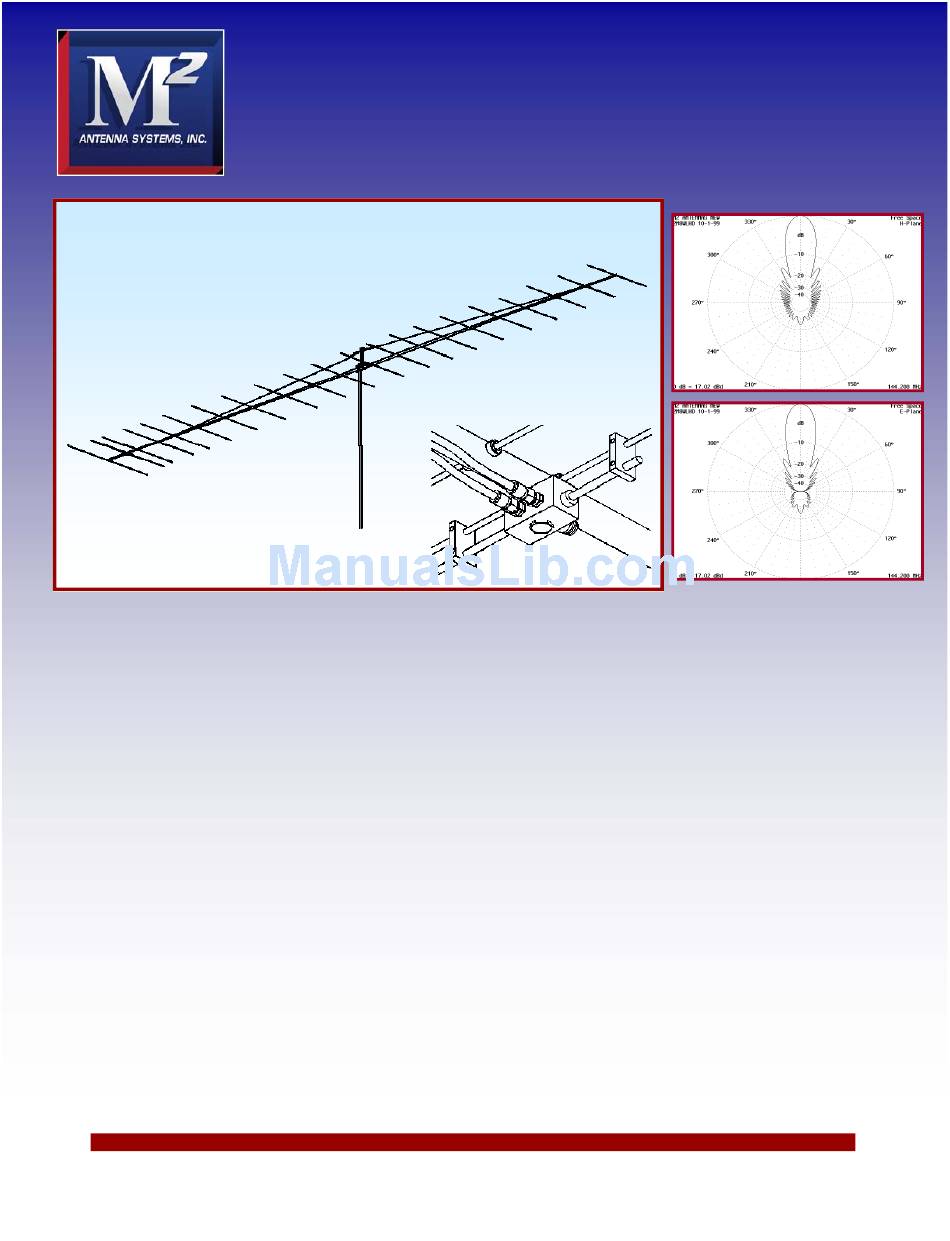

M2 Antenna Systems 2M8WL Assembly Manual

SPECIFICATIONS:
Model ......................................... 2M8WL
Frequency Range ....................... 144 To 144.6 MHz
*Gain .......................................... 18.5 dBi
Front to back .............................. 26 dB Typical
Beamwidth ............................... E=20° H=21°
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.5:1
Input Connector .......................... "N" Female
FEATURES:
The 2M8WL provides the user with not just improvements in gain and front to back ratio but also features a robust
boom design, making the antenna capable of handling winds over 100 MPH. The 2M8WLHD features the same highly
reliable, CNC machined, driven element components used on our other VHF and UHF yagis. The boom tapers from 2.5"
in the 23 foot middle section to 1.5" at the rear and front. It is top guyed with dacron cord. A single 2M8WL provides the
gain requirement to make EME contacts with even small 4 yagi stations. It passes the echo test by producing its own
audible echoes even when pointed up with no ground gain! Obviously it is dynamite on Tropo! There's absolutely nothing
else like it.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 2M8WL
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2009 M2 Antenna Systems Incoporated
Power Handling .......................... 2.5 kW
Boom Length / Dia ...................... 55' / 2-1/2" To 1-1/2"
Maximum Element Length .......... 21-3/16"
Turning Radius: .......................... 29'
Stacking Distance ....................... 17' High & 17' Wide
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 5.5 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 50 Lbs. / 59 Lbs.
5/8/09
Rev.00
