SPECIFICATIONS:

Model ......................................... 2M-440XPSS
Frequency Range ....................... 144-148 / 420-450 MHz
*Gain 2M / 440 ........................... 8.3 / 11 dBi
Front to back 2M / 440 ............... 20 dB / 18 dB
Feed Impedance. ....................... 50 Ohms Unbalanced
VSWR ......................................... 1.5:1
Connectors ................................. SO-239
Power Handling 2M / 440 ........... 500W / 500W

FEATURES:

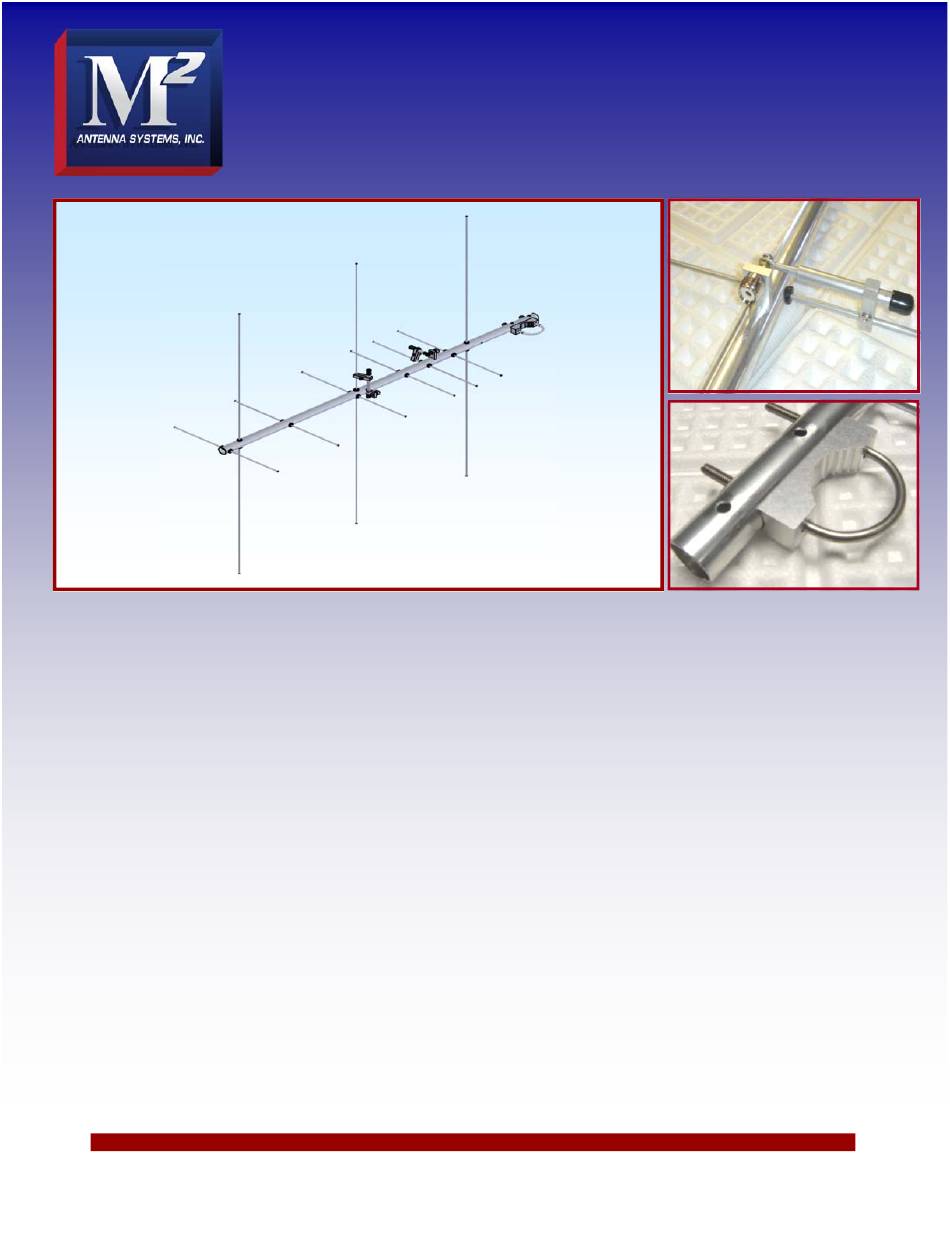

The 2M-440XPS is ideal for linking repeaters and remote bases utilizing both 2 meters and 440 MHz. Elements
are cross polarized to avoid the severe performance compromises on 440 MHz common to other dual band antennas that
have all elements in the same polarity. The XP also works well on the OSCAR frequencies and is handy wherever dual
band capability and compact size are required. Recently, with PACKET users finding horizontal polarization better on 2
meters, it has become even more useful.
Construction is designed for long term mechanical and electrical integrity. Elements are 3/16" 6061-T6 aluminum
rod, centered through the boom on UV stabilized insulator buttons. All hardware is stainless steel.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 2M-440XPSS
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2016 M2 Antenna Systems Incorporated
Boom Length / Dia ...................... 41-1/4" / 1"
Maximum Element Length .......... 40"
Turning Radius ........................... 42"
Stacking Distance ....................... Call Factory
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 0.31 Sq. Ft. / 75 MPH
Weight / Ship Wt. ........................ 2 Lbs. / 5 Lbs.
10/05/2016
Rev.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2M-440XPSS and is the answer not in the manual?

Questions and answers

Summary of Contents for M2 Antenna Systems 2M-440XPSS

  • Page 1 Construction is designed for long term mechanical and electrical integrity. Elements are 3/16” 6061-T6 aluminum rod, centered through the boom on UV stabilized insulator buttons. All hardware is stainless steel. M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722 Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com 10/05/2016 ©2016 M2 Antenna Systems Incorporated...
  • Page 2 2M-440XPSS ASSEMBLY MANUAL Tools handy for assembly process: Phillips head screwdriver, 5/16”,11/32” spin-tight or socket, 7/16” end wrenches / sockets, measuring tape. (Note: Repeat Steps 1—15 for both antennas). 1. This antenna uses a one-piece boom that will be rear mounted.
  • Page 3 2M-440XPSS ASSEMBLY MANUAL 11. Install the two halves of the Shorting Bar onto the Gamma Tube and the driven element below. Refer to the DIMENSION sheet for proper location of the shorting bar. Tighten the shorting bar in place using a single 8-32 x 7/8” screw and lock nut.
  • Page 4 2M3-SS DIMENSION SHEET...
  • Page 5 440-6SS DIMENSION SHEET...
  • Page 6 GAMMA MATCH PARTS & HARDWARE...
  • Page 7 2M-440XPSS PARTS & HARDWARE DESCRIPTION BOOM SECTION, 1 X .058 X 41-1/4” ........1 2M ELEMENTS, 3/16 ROD X SEE DIM SHEET ....3 2M GAMMA ROD, 3/16 X 3.25 ALUM ROD ......1 2M GAMMA TUBE, 3/8 X .058 X 3.00 ALUM TUBE ....1 2M GAMMA INSULATOR, 1/4”...
