SPECIFICATIONS:
Model ......................................... 2MXP20
Frequency Range ....................... 144 To 146 MHz
*Gain .......................................... 15.3 dBi
Front to back .............................. 25 dB Typical
Beamwidth ............................... E=30° H=34°
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.5:1
Input Connector .......................... "N" Female
FEATURES:
This dual polarized yagi was computer designed for the serious Moonbouncer. The very good G/T is a result of
low side and back lobes and the design has been optimized for stacking. This antenna is remarkable in that the stacking
gain for four antennas exceeds 6 dB. Even using a single Horizontal/Vertical relay, you have a moonbounce package
that can outperform larger, linear arrays. Additional relay switching providing 4 different types of signals. Losses from spe-
cial polarity and Faraday rotation virtually disappear. EME reliability approaches 100%. M
power dividers and phasing lines (using Times' new light-weight, low-loss LMR400 and/or LMR600 cable) coupled with 'T'
brace kits, fiberglass H-frame packages, OR2800P Azimuth Rotator, and our New MT-1000 Elevation Motor provide the
building blocks for a whole new generation of high performance EME arrays.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 2MXP20
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incoporated
Power Handling .......................... 2.5 kW
Boom Length / Dia ...................... 21' 7" / 1-1/2" To 1"
Maximum Element Length .......... 40-1/2"
Turning Radius: .......................... 146"
Stacking Distance ....................... 11' 6" High & 12" Wide
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 1.9 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 8 Lbs. / 12 Lbs.

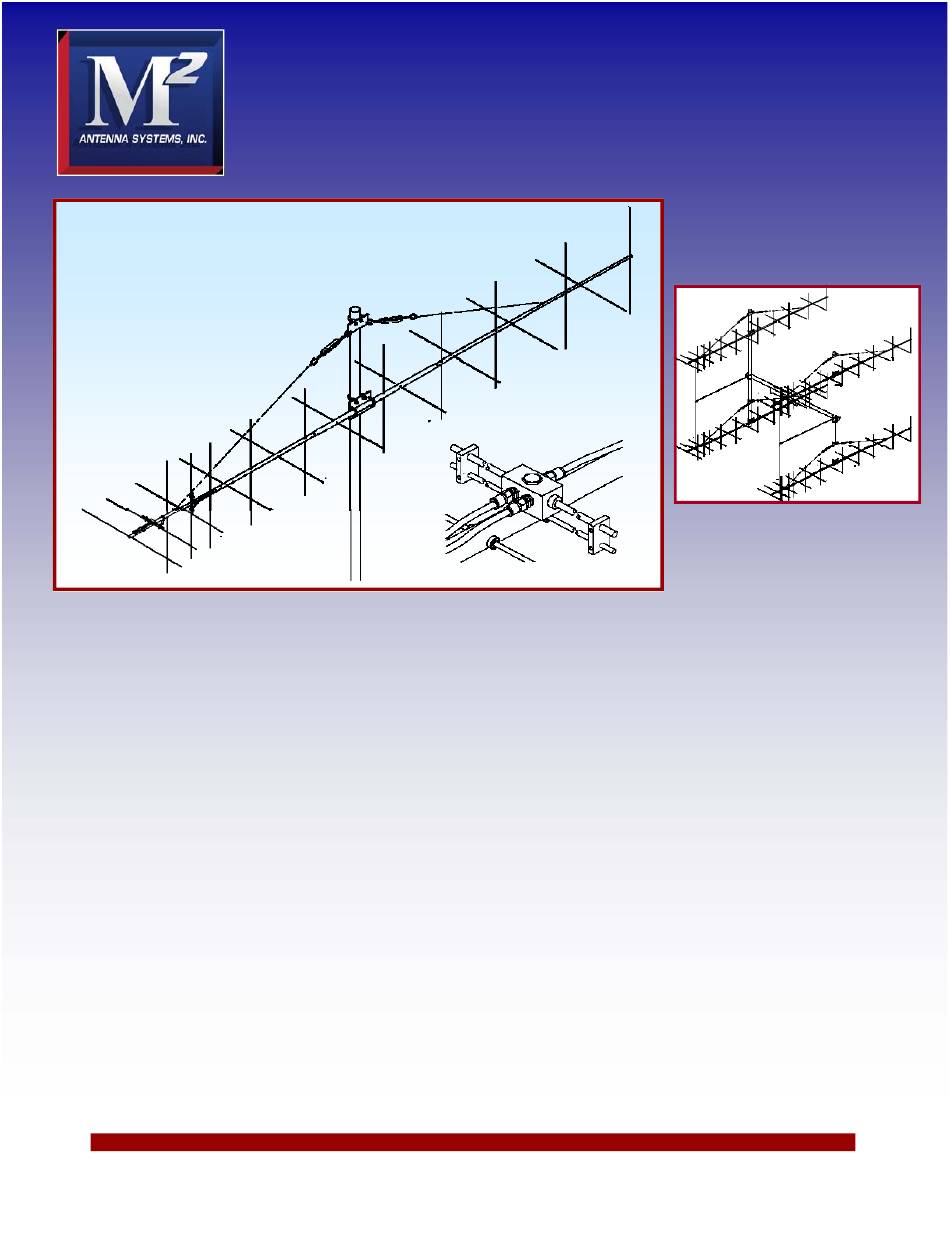

2MXP20 4 Bay Array
2
'
s new 2MXP20 antennas,
05/27/15
Rev.03
Advertisement
Table of Contents
Related Manuals for M2 Antenna Systems 2MXP20
Summary of Contents for M2 Antenna Systems 2MXP20
-
Page 1: Specifications
H-frame packages, OR2800P Azimuth Rotator, and our New MT-1000 Elevation Motor provide the building blocks for a whole new generation of high performance EME arrays. M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722 Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com 05/27/15 ©2015 M2 Antenna Systems Incoporated... - Page 2 2MXP20 ASSEMBLY MANUAL 1. Start by laying out the boom sections using the DIMENSION sheet as a guide. Use 8-32 screws and locknuts to join sections. Sections are swaged to fit each other. 2. Lay out the elements by length and position as shown the DIMENSION sheet. Start with the HORIZONTAL reflector (longest) element and push on a black button insulator to about 1/2”...
- Page 3 2MXP20 ASSEMBLY MANUAL over end of the 3/8 x 3” push tube (Shaft Retainer dished into tube). Hold the element firmly and start the keeper onto the rod by applying pressure with the push tube. Push the Shaft Retainer until up tight against the button insulator (Locking pliers, lightly clamped up against opposite button insulator will help maintain center reference and keep you from pushing the first Shaft Retainer too far).
- Page 4 2MXP20 DIMENSION SHEET...
- Page 5 2MXP20 (FM 145-148) DIMENSION SHEET VERTICAL ELEMENT DIMENSIONS FOR FM BAND 14-148 MHZ 40.125 38.625 36.813 36.00 35.50 35.125 34.625 34.375 34.50 35.188...
- Page 6 2MXP20 PARTS & HARDWARE DESCRIPTION BOOM, 1.0 X .058 X 51” ALUM. TUBE ........ 1 BOOM, 1.0 X .058 X 45.5” ALUM. TUBE ......1 BOOM, 1-1/4 X .058 X 60 SOE, ALUM........ 2 BOOM, 1-1/2 X .058 X 60 SBE ALUM......... 1 BOOM TO MAST PLATE, 3/16 X 4 X 6”...
