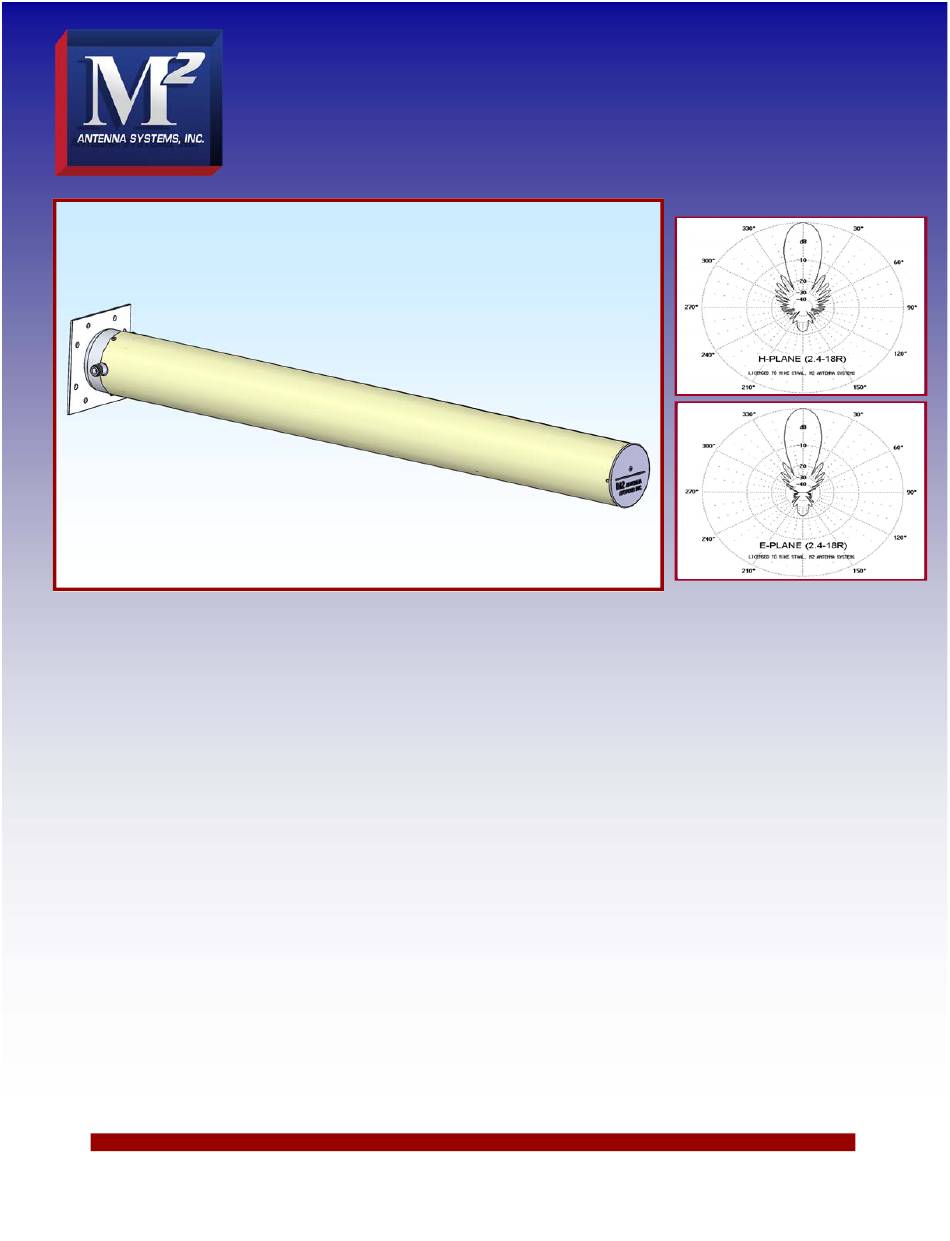

M2 Antenna Systems 2.4-18R Instructions

SPECIFICATIONS:

Model ......................................... 2.4-18R
Frequency Range ....................... 2.4-2.5 GHz
*Gain .......................................... 18 dBi
Front to back .............................. 17 dB
VSWR ......................................... 1.5:1 Max
Polarity ....................................... Vert / Horz
Feed Impedance. ....................... 50 Ohms Unbalanced
Input Connector .......................... "N" Female

FEATURES:

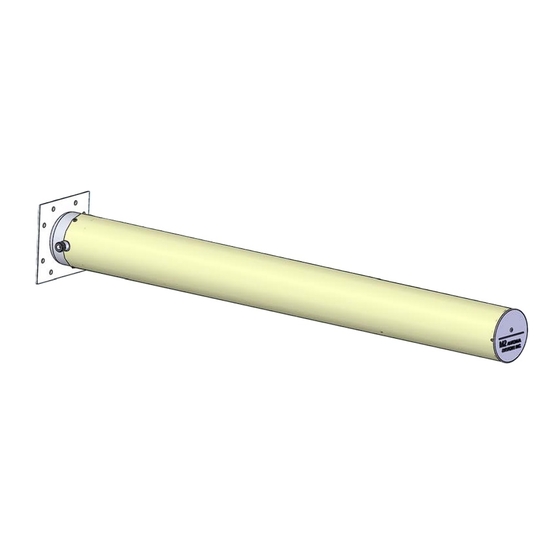

The 2.4-18R is a high gain, Wave Guide Fed Yagi. Computer optimized for use in the 2350-2500 MHz band.
Mechanically optimum computer calculations are held by CNC stamping out the director element structure. The low-loss
Polyethylene Radome covers and adds to the strength of the antenna. Vertical or Horizontal polarization is achieved
simply by rotating the antenna 90 degrees.
The 2.4-18R is one of the best performers for it's size in the market. If more gain is required, stacking two at 8"
apart nets another 3.0 dB gain. All antenna hardware is stainless steel for long life.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 2.4-18R
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incoporated
Power Handling .......................... 500 Watts
Boom Length .............................. 35"
Boom Dia .................................... 3.3"
Stacking Distance ....................... 30' High & 30' Wide
Mast Size .................................... 1-1/4" to 2"
Wind Area ................................... (.2) Sq. Ft.
Wind area / Survival ................... 100 MPH
Weight ........................................ 1.5 Lbs.
05/29/15
Rev.00
