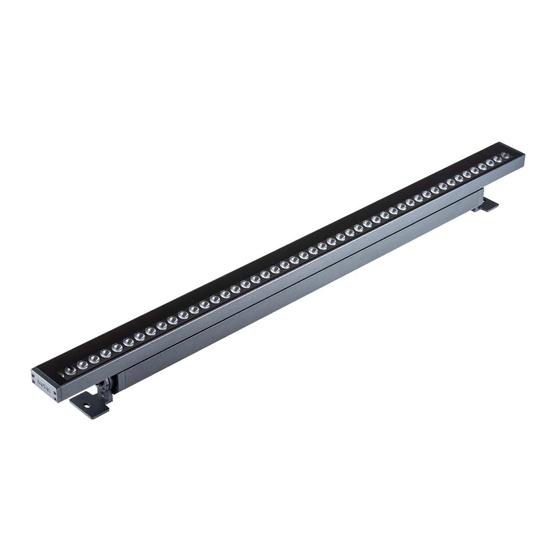

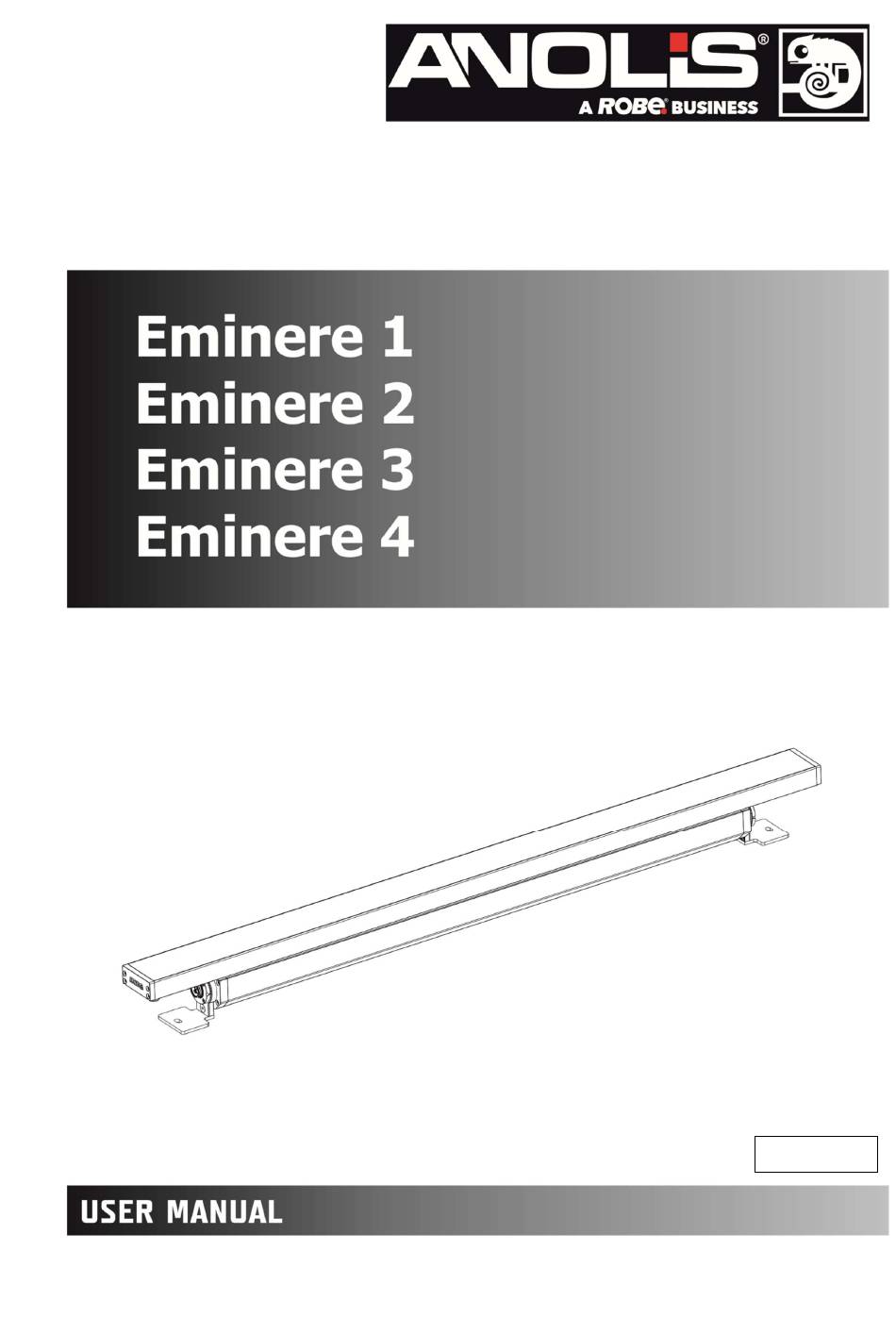

- Page 1 Version 2.2...
-
Page 2: Table Of Contents
Eminere Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to mains ............................. 5 3.3 The Booster box ..............................9 3.4 The Booster box installation ..........................11 4. -
Page 3: Safety Instructions
Eminere FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Eminere ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. -
Page 4: Fixture Exterior View
Eminere The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or maintenance. Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons not qualified to operate the fixture. Most damages are the result of unprofessional operation! Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard EN55103-2 ed.2 Electromagnetic compatibility. -
Page 5: Installation
Eminere 3. Installation 3.1 Mounting the fixture The Eminere can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5), the LED module (2) can be tilted (+95°/-95°) to get access to mounting brackets (5). Ensure that the structure to which you are attaching the unit is secure. - Page 6 Eminere The output panel connector at last fixture in the Eminere chain has to always be covered with the water-tight cap to keep declared IP rating. The Eminere modules should be connected to the E-box which allows power supply of the Eminere modules and their control.
- Page 7 Eminere E-box Pro E-box Lite...
- Page 8 Eminere Number of connected Emineres to one E-box output depends on a cable length, power voltage, type of Eminere and E-box and operation mode. The tables below state max. theoretical number of Emineres connected to the one LED output of the E-box without Booster boxes.
-
Page 9: The Booster Box
Eminere EMINERE 4 Voltage Cable length * 120V 190V 230V 277V 10 m 20 m 30 m 50 m 70 m 100 m 200 m * Cable length is a total cable length between E-box and last connected Eminere. Example: Total cable length=L1+L2+L3 Notice for the E-box Star: The tables above state max. - Page 10 Eminere 200 m 9,18,27,36,45,54,60,72,81 22,44,66,88,110, 32,64,96,128, 47,94,141, 90,99,108,117,126,135,144 132,154,176 153,162,171,180,189, EMINERE 2 Max. number of Emineres 2= 94 Voltage Cable 120V 190V 230V 277V length 10 m 41,82 20 m 41,82 30 m 28,56,84 50 m 17,34,51,68,85 43,86 70 m 12,24,36,48,60,72,84 31,62,93 45,90...
-
Page 11: The Booster Box Installation
Eminere EMINERE 4 Max. number of Emineres 4= 48 Voltage Cable 120V 190V 230V 277V length 10 m 21,42 20 m 21,42 30 m 15,30,45 50 m 9,18,27,36,45 22,44 70 m 6,12,18,24,30,36,42 16,32 23,46 100 m 4,8,12,16,20,24,28,32,36, 11,22,33,44 16,32 23,46 40,44 200 m 2,4,6,8,10,12,14,16,18,20,... - Page 12 Eminere The Cable gland M20x1.5 for Power IN (5) is intended for a cable of a diameter of 7-13mm. Remove the end cap from the cable gland before passing the cable. Power connection (earth) Core (EU) Braun Blue Green/yellow Core (US) Black White Green...
- Page 13 Eminere 3. Screw the cover (2) back on the Booster box.
-
Page 14: Technical Specifications
Eminere 4. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 120 - 277V AC, 50/60 Hz • Power consumption: Eminere 1: 25W Eminere 2: 45W Eminere 3: 65W Eminere 4: 85W • Inrush current: Eminere 1: <70A/250µs Eminere 2: <70A/250µs Eminere 3: <100A/200µs Eminere 4: <100A/200µs Optic... - Page 15 Eminere IP67 • E-box Lite 1 output 1 Main power Input Control: DMX, W-DMX control, RDM Pixel control (1px= 1ft) 120-277V Input Connection via screw terminal blocks, inlets via grommet IP67 Mounting method • Via two L-shape brackets • LED module “tilt” adjustment range: -95°/+95° Sizes •...
- Page 16 Eminere Weight •Eminere 1: 2.5 kg (5.5 lbs) •Eminere 2: 4 kg (8.82 lbs) •Eminere 3: 6.02 kg (13.27 lbs) •Eminere 4: 7.7 kg (17 lbs) Dimensions (All dimensions in mm [inch])
- Page 17 Eminere • Booster box Included items • 1 x Eminere • 1 x User manual Optional accessories CE Leader Cables FF: Leader Cable FF 2m (P/N 13053005) Leader Cable FF 5m (P/N 13053006) Leader Cable FF 10m (P/N 13053007) Leader Cable FF 25m (P/N 13053008) Leader Cable FF 50m (P/N 13053009) US Leader Cables FF: Leader Cable FF 2m (P/N 13053010)
-
Page 18: Cleaning And Maintenance
Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent. Rinse it. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use ROBE OEM parts. -
Page 19: Disposing Of The Product
Technical specifications changed 26/11/2021 Optional accessories changed Specifications are subject to change without notice. November 26, 2021 Copyright © 2019-2021 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
