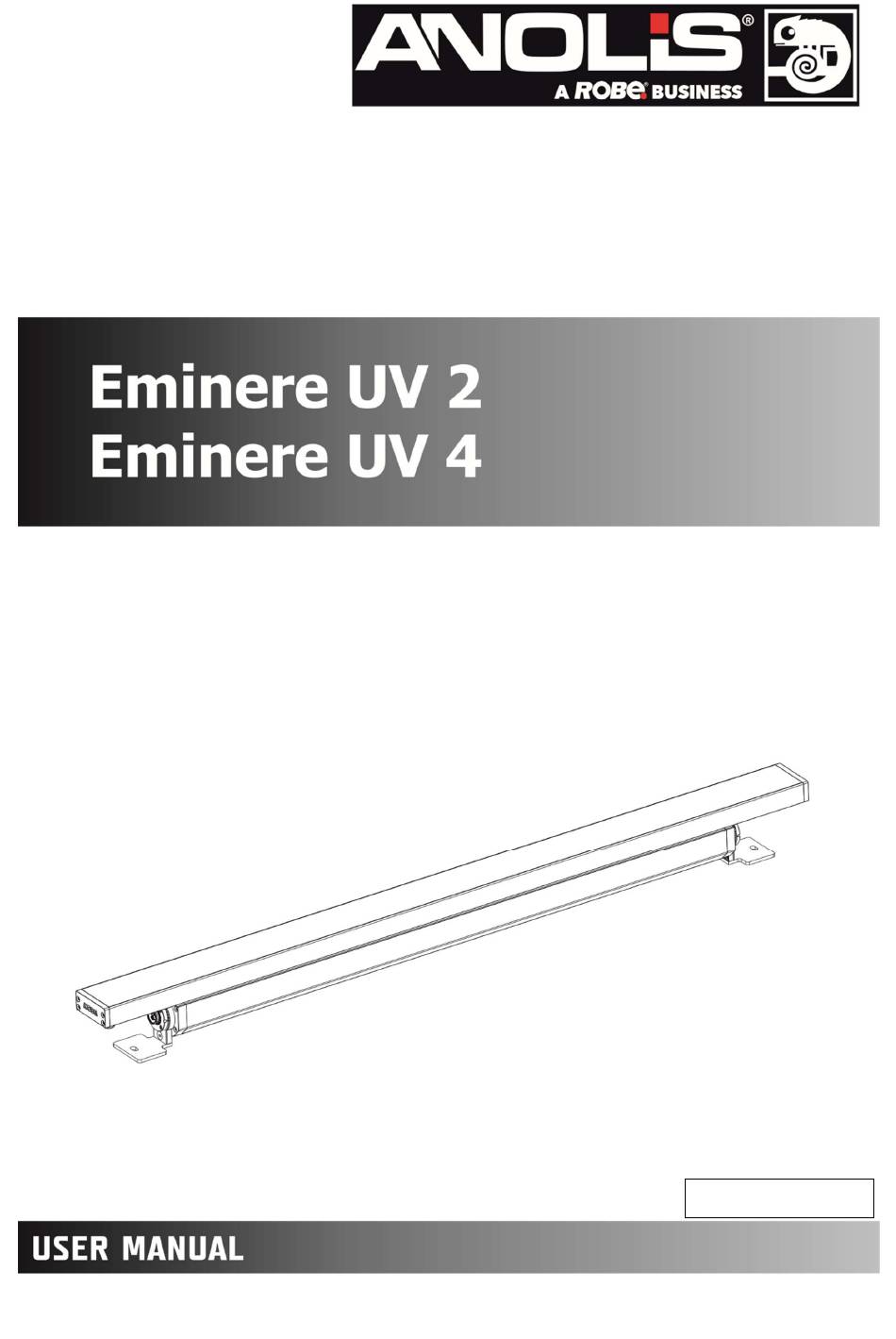

  • Page 1 Preliminary version...

  • Page 2: Table Of Contents

    Eminere UV Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to mains ............................. 5 3.3 The Booster box ..............................9 3.4 The Booster box installation ..........................11 3.5 Jumper cable assembling ............................

  • Page 3: Safety Instructions

    Eminere UV FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Eminere UV ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual.
  • Page 4 Eminere UV DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT! This fixture should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized distributor or local power company. Always disconnect the fixture from AC power before cleaning, servicing or installing.

  • Page 5: Fixture Exterior View

    Eminere UV 2. Fixture exterior view 1. Transparent glass cover 2. LED module 3. Output connector 4. Input connector 5. Mounting brackets 6. Aluminium base 3. Installation 3.1 Mounting the fixture The Eminere UV can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5), the LED module (2) can be tilted (+95°/-95°) to get access to mounting brackets (5).
  • Page 6 Eminere UV The Eminere UV is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 120-277 Volts. The following wiring of the input/output connectors applies to the fixtures marked on their labels only. Older versions of the Eminere UVs have swapped D- and D+ and do not have mark on their labels.
  • Page 7 Eminere UV E-box Star E-box Pro...
  • Page 8 Eminere UV E-box Lite Number of connected Emineres UV to one E-box output depends on a cable length, power voltage, type of Eminere UV and E-box and operation mode. The tables below state max. theoretical number of Emineres UV connected to the one LED output of the E-box without Booster boxes.

  • Page 9: The Booster Box

    Eminere UV Notice for the E-box Star: The tables above state max. total number of Emineres UV connected to 6 LED outputs of the E-box Star (or max. number of Emineres UV connected to one output if the rest of outputs is not connected).The E-box Star has only one power input! 3.3 The Booster box To compensate a voltage drop in large installation, the Booster boxes have to be connected in the chain of...
  • Page 10 Eminere UV 100 m 4,8,12,16,20,24,28,32,36, 11,22,33,44 16,32 23,46 40,44 200 m 2,4,6,8,10,12,14,16,18,20, 5,10,15,20,25,30 8,16,24,32,40 12,24,36 22.24.26,28,30,32,34,36,38 35,40,45 40,42,44,46 Example: E-box Daisy, Power supply= 230V, Cable length=70m, fixture=Eminere UV 2 The Booster box has to be connected after every 45th Eminere UV 2 (fixture 45 and fixture 90) from 94 fixtures.

  • Page 11: The Booster Box Installation

    Eminere UV 3.4 The Booster box installation ALWAYS DISCONNECT THE EMINERES UV FROM MAINS BEFORE CONNECTING/DISCONNECTING THE BOOSTER BOX. The Booster box falls under protection class I. Therefore, every Booster box has to be connected to a mains socket outlet with a protective earthing connection. 1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and two mounting holes of diameter of 4.6 mm (4).
  • Page 12 Eminere UV Cable gland M20 MS: The cable gland M20 MS with a standard seal serves for a cable of diameter of 6-12mm, for smaller diameter of cable (4-8mm) you have to remove the original seal from the cable gland M20 and use the enclosed reducing seal instead of it.

  • Page 13: Jumper Cable Assembling

    Eminere UV 3.5 Jumper cable assembling 1. Dismantle the connector and slide its parts onto the cable (6). Use the seal with inner diameter of 14.5 mm for the Anolis cable (P/N 13053138 or P/N 13053139). The seal with inner diameter of 14.5 mm serves for cable of diameter 10-14.5mm. The seal with inner diameter of 10 mm serves for cable of diameter 8-10mm.
  • Page 14 Eminere UV US version 4. Put parts of the connector on the cable (6) and connect wires to the connector. First connect power wires (L,N, Earth) and after that data wires (D+, D-, 0V). Avoid excessive torsion of data wires! CE version Male Female...
  • Page 15 Eminere UV 5. After connecting wires to the connector, tighten the three data wires (D+,D-, 0V) by means of the cable binder (7). 6. Screw the clamp ring (3) to the connector (1), insert the seal (4) to the clamp ring (3) and tighten the sealing nut (5) enough.

  • Page 16: Technical Specifications

    Eminere UV 4. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 120 - 277V AC, 50/60 Hz • Power consumption: Eminere UV 2: 45W Eminere UV 4: 85W • Inrush current: Eminere UV 2: <70A/250µs Eminere UV 4: <100A/200µs Optic •...
  • Page 17 Eminere UV 120-277V Input Connection via screw terminal blocks, inlets via grommet IP67 Mounting method • Via two L-shape brackets • LED module “tilt” adjustment range: -95°/+95° Sizes • Eminere UV 2 (600mm / 2ft) • Eminere UV 4 (1200mm / 4ft) Housing •...
  • Page 18 Eminere UV Dimensions (All dimensions in mm [inch])
  • Page 19 Eminere UV • Booster box Included items • 1 x Eminere UV • 1 x User manual Optional accessories CE Leader Cables FF: Leader Cable FF 2m (P/N 13053005) Leader Cable FF 5m (P/N 13053006) Leader Cable FF 10m (P/N 13053007) Leader Cable FF 25m (P/N 13053008) Leader Cable FF 50m (P/N 13053009) US Leader Cables FF:...

  • Page 20: Cleaning And Maintenance

    Rinse it. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use ROBE OEM parts. 5.1 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local regulations and codes.
  • Page 21 Eminere UV Specifications are subject to change without notice. February 23, 2022 Copyright © 2019-2022 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
