Summary of Contents for Digitus DA-70143

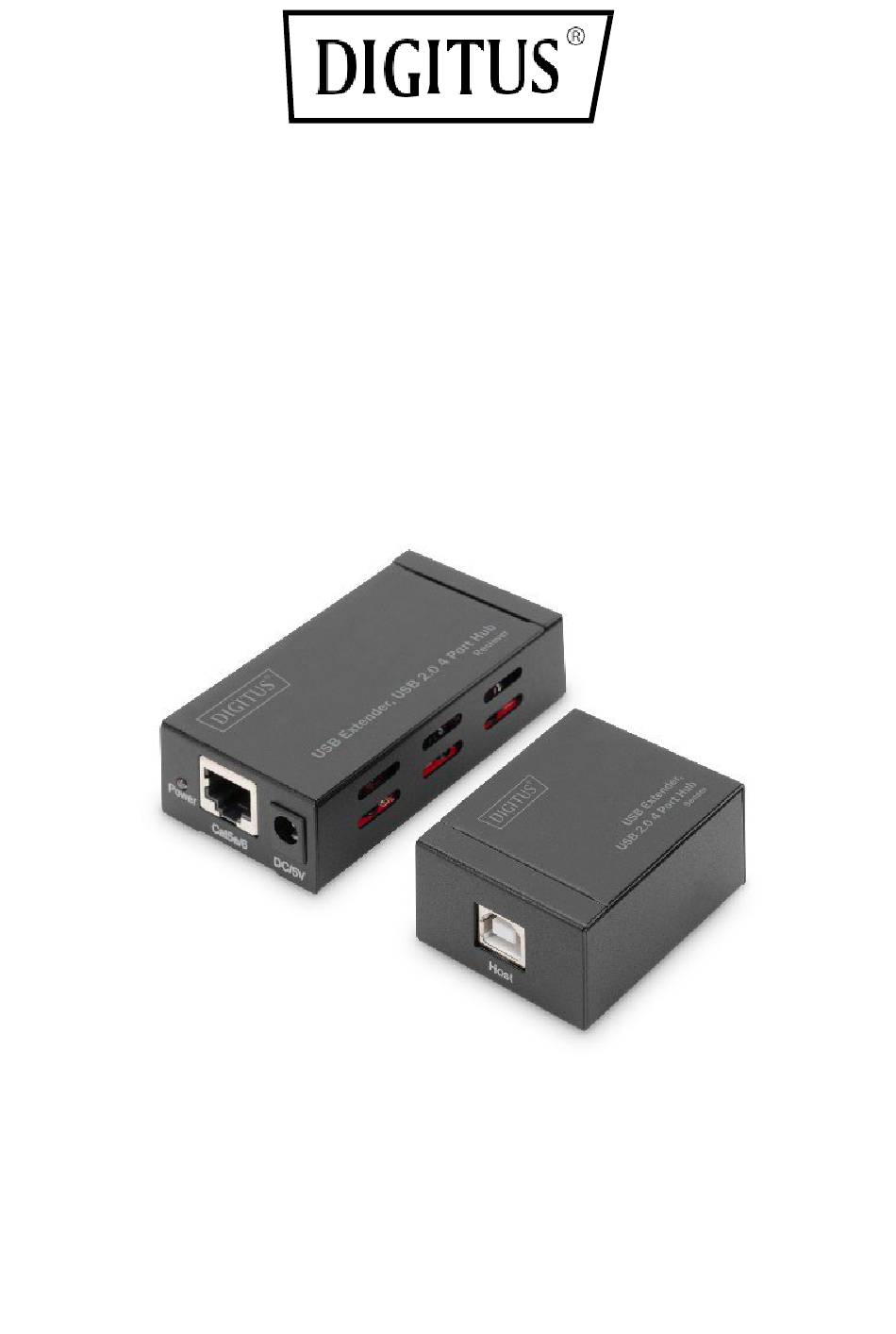

Page 1

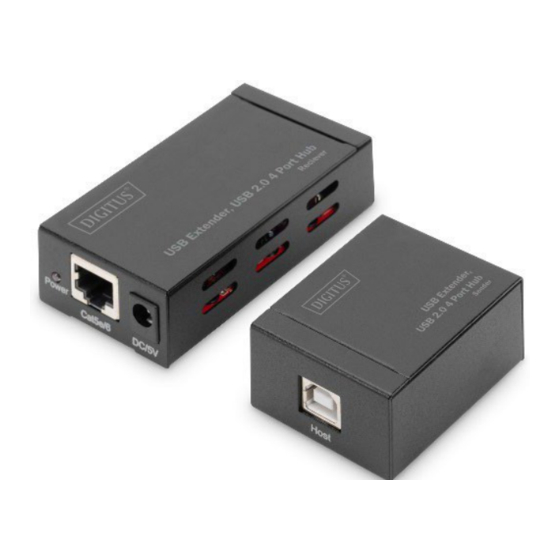

USB Extender, USB 2.0 4-Port Hub Quick Installation Guide DA-70143...
Page 2
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future referen Introduction This USB extender enables you to connect up to 4x USB devices to your computer at a distance of up to 50 m using a Cat 5, 5e or Cat 6 patch cable (UTP, STP or SFP) - not included in the scope of delivery.
Page 3
Connection 1. Using one USB cable to plug USB port of the sender and plug another USB end of the cable into source. 2. Connect the sender with receiver by using one CAT 5e/6 cable. 3. Connect the receiver with USB devices by using USB cables.
Page 4
Specifications Sender Voltage 5V(USB self- powered) Receiver Voltage 5V/2A(External Power) Transmission speed >30MB/S (read) Transmission speed >30MB/S (Write) Max transmits speed 39MB/S Cable Standard Cate5e/Cate6 50m -10°C to +80°C Storage temperature 5% to 90 % RH Storage humidity (no condensation) Operating temperature 0°C~ 45°C Operating Humidity...
