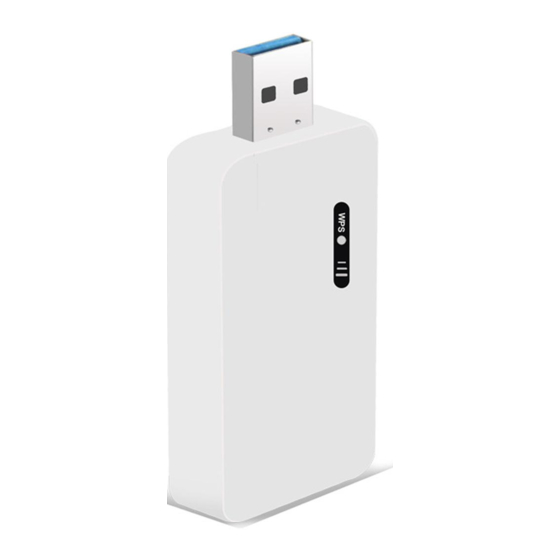

Product Introduction This is a mini size wireless range extender with USB power supply. 2. USB port 1. Reset Button 3. WPS Button 4. Wifi LED USB port For power supply Reset button Press 5 seconds for reset to default setting WPS button Press 1 seconds to start WPS Wifi LED...
Page 3
Prepare: Wireless Network Connection ® (Windows 7/8/8.1/10) If you want to install the wireless network repeater, please make sure your wifi is ON, and your network cable has been detached. To operate, please follow the steps below to connect to the product: 1.
WPS Setting: Just click first the WPS button of the router and also the repeater for one second within 2 minutes, and then a wireless connection will be established automatically. Note: The WPS button will be invalid, if it has connected to one router successfully, you must reset it to factory setting first.
Web Setting: Place the website http://192.168.8.1 in Internet explorer address column, then key in the username and password with “admin”. Enter the main page. You can choose “Clone Router”, and the Repeater’s SSID and password will be the same with the router which you have connect to. Select the router you want to connect and click “Save &...
Page 6
Note: Device will reboot after connecting successfully. If connection failed, please check router’s password or other network problem. Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/53/EU and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address.
