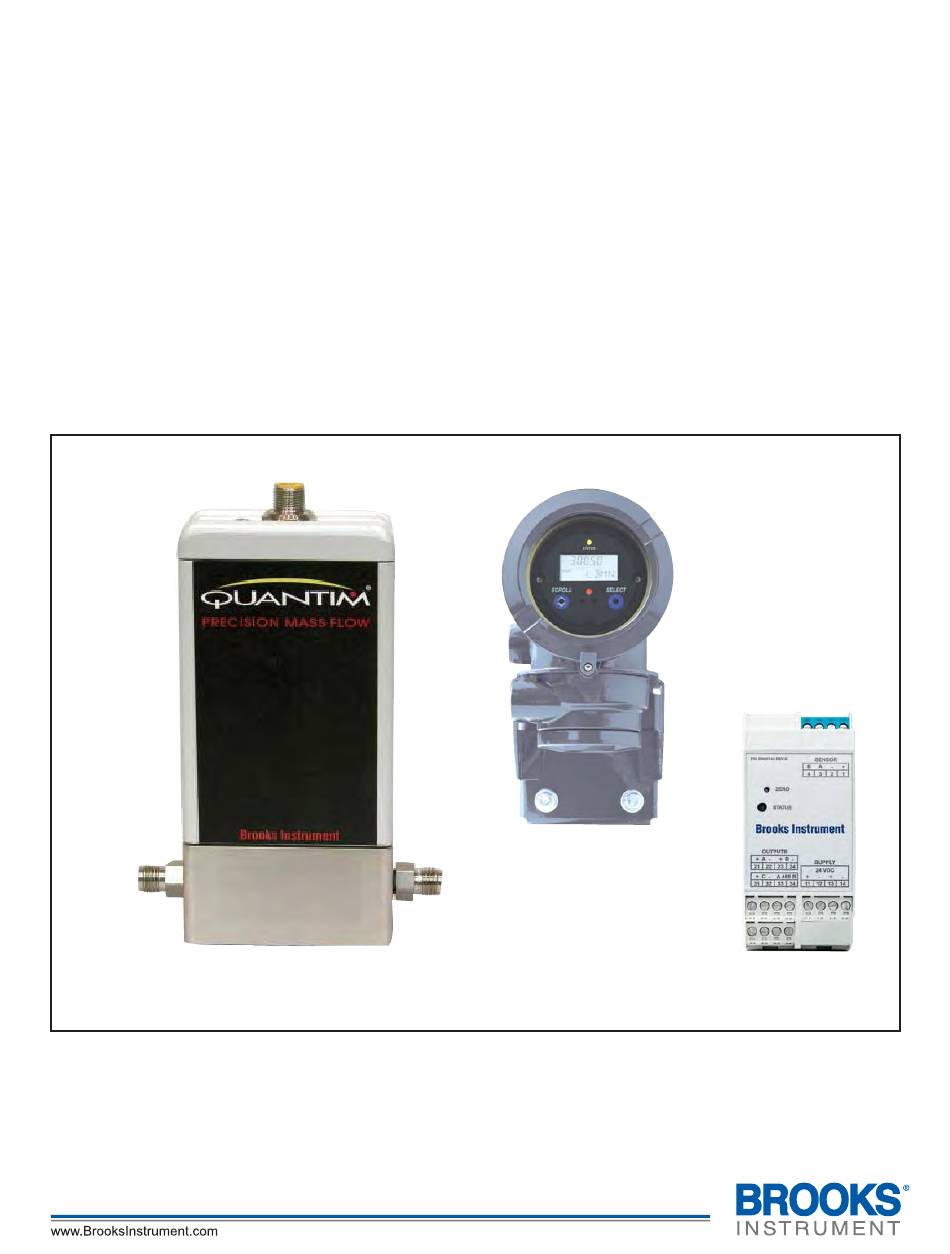

Installation and Operation Manual
X-CM-QmBS-eng
Part Number: 541B052AHG
June, 2008
®
Brooks
"Next Generation" QUANTIM
Ultra Low Flow Coriolis
Precision Mass Flow
QmBS Sensor / QTA Transmitters
TM
With MVD
Technology

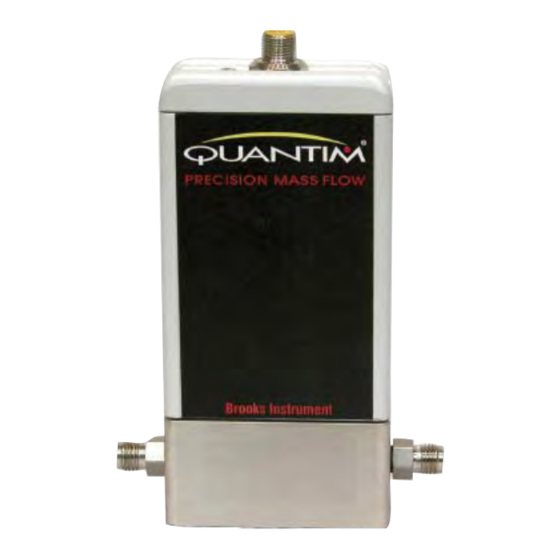

QmBS Sensor
QTA Transmitter
Field Mount
®
QTA Transmitter
DIN Rail Mount
