Summary of Contents for AMP Lighting ONE HydraPro AWL-700IR-25-BBZ

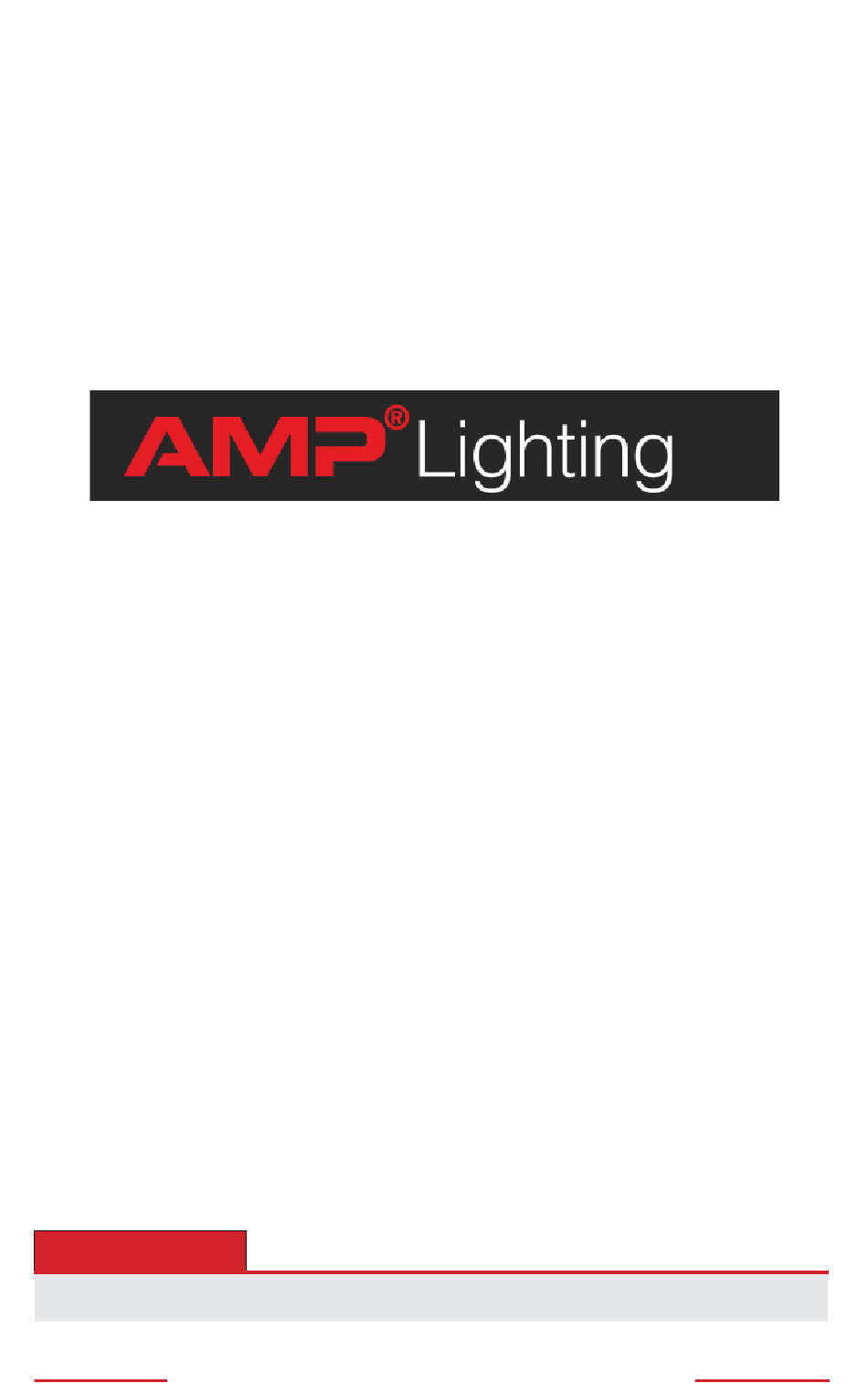

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® AMP ONE HydraPro™ LED In-Grade Light (Dimmable) ® AWL-700IR-25-BBZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE AMP ONE HydraPro™ LED In-Grade Light (Dimmable) ® AWL-700IR-25-BBZ Important: Please Read Before Installation This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instruc- tions may result in serious injury, property damage and void the warranty.
- Page 3 INSTALLATION & MAINTENANCE GUIDE Package Contents AMP ONE HydraPro™ LED In-Grade Light (Dimmable) ® A. (1) Fixture AWL-700IR-25-BBZ B. (1) Stake Install Stake Parts Required (Sold Separately) Board Determine desired location for mounting A. (1) AMP ONE Design-Master the fixture. Hammer stake into ground until ®...
- Page 4 Wire Connection Pigtail Wire Connectors Main Supply Cable Strip both leads from luminaire pigtail. Using two wire connectors (sold seperately), connect leads from luminaire to main supply cable. Install/Replace Glare Guard Remove Faceplate Unscrew screws and remove the Screw faceplate from the fixture. Faceplate Fixture Install Glare Guard...
- Page 5 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2017, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@AMPlighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m is-AWL-700IR-BBZ-ver5.pdf...
