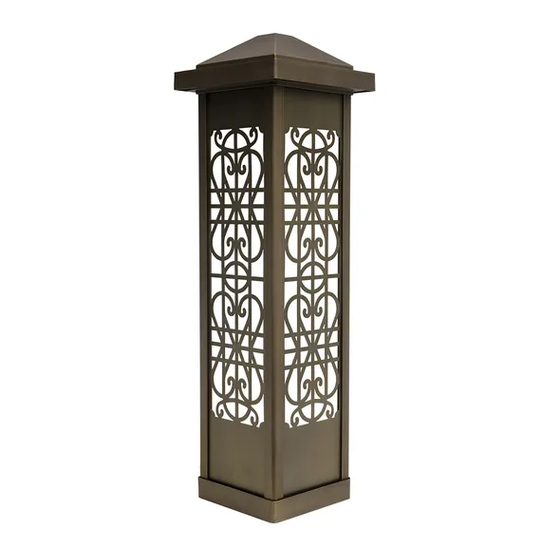

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® Customizable Bollard Light ® APL-3032-26-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Customizable Bollard Light ® APL-3032-26-4-B-BZ Important Safety Instructions: Read Before Installation This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body C. (2) Threaded Couplers B. (2) Bi-Pin Brass Puck Lights Sold Separately A. (4) Side Panels B. Mounting Accessory Product Dimensions 8”x8” 3” 25.87” 6.38”x6.38” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Customizable Bollard Light ® APL-3032-26-4-B-BZ Remove Top Cover Remove Push Top Cover Rotate Fixture Top Cover Push the top cover down and rotate it clockwise to remove it from the fixture. w w w. a m p l i g h t i n g . c o m –4–...
- Page 5 INSTALLATION & MAINTENANCE GUIDE Customizable Bollard Light ® APL-3032-26-4-B-BZ Install Side Panels OPTIONAL SIDE PANELS Side Panel Slot Fixture Insert the side panels of your choice into the slots on the fixture body. customersupport@amplighting.com • 813.978.3900 –5–...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Customizable Bollard Light ® APL-3032-26-4-B-BZ Install Top Cover Align the bolts on the top cover Push to the holes on top of the fixture. Rotate Insert the bolts into the holes and push down. Then rotate the top...
- Page 7 INSTALLATION & MAINTENANCE GUIDE Customizable Bollard Light ® APL-3032-26-4-B-BZ Install Fixture Determine the desired location for the fixture. Insert the stakes into the ground until flange of stakes Fixture are flush to grade. NOTE: If the ground is hard and the...
- Page 8 INSTALLATION & MAINTENANCE GUIDE Customizable Bollard Light ® APL-3032-26-4-B-BZ Replace Bi-Pin Bi-pin Cover Screw Puck Light Cover Socket Base Socket Base Socket 1. Remove the cover off the bottom and top of the fixture. 2. Using a screwdriver, remove the two screws from the socket base.
