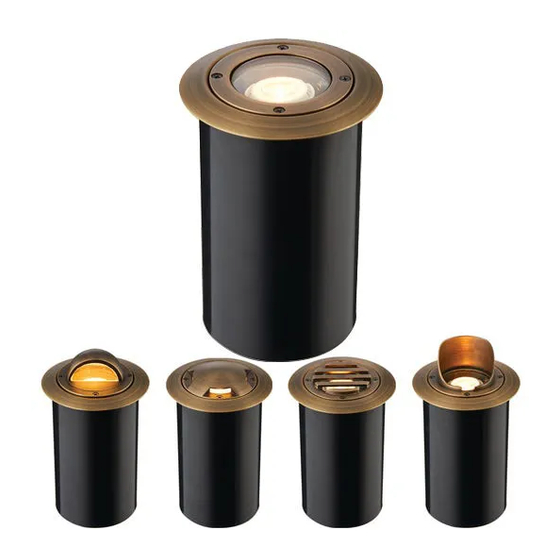

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® HydraPro MR11 Well Light (Lamp Ready) ® AWL-5005-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE HydraPro MR11 Well Light (Lamp Ready) ® AWL-5005-B-BZ Important Safety Instructions: Read Before Installation This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body C. (1) PVC tube B. (1) Holder Parts Required (sold separately) A. (1) MR11 Lamp Product Dimensions 4.15” 3” 2.8” 5.8” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE HydraPro MR11 Well Light (Lamp Ready) ® AWL-5005-B-BZ Remove Faceplate Use a screwdriver to loosen the Screw screws on the faceplate and remove the lens from the fixture body. Faceplate Fixture Body Install Lamp Insert the lamp with the correct watt- MR11 Lamp age and type marked on the fixture label and push firmly into place.
- Page 5 INSTALLATION & MAINTENANCE GUIDE HydraPro MR11 Well Light (Lamp Ready) ® AWL-5005-B-BZ Dig Hole PVC Tube Prepare a hole in the ground. Make sure there are approximately 3” spaces surrounding the PVC tube for 3” 3” pea gravel or sand. 3”...
- Page 6 INSTALLATION & MAINTENANCE GUIDE HydraPro MR11 Well Light (Lamp Ready) ® AWL-5005-B-BZ Fill Hole Install the PVC tube with the PVC Tube Pea Gravel fixture in the hole and fill the with Fixture or Sand hole with pea gravel or sand. Soil Install/Replace Lamp Repeat step 1 - step 3 to remove the faceplate to expose the lamp and...
- Page 7 Install/Replace Faceplate Remove Faceplate Use a screwdriver to loosen the screws on the faceplate and Screw remove the lens from the fixture body. Faceplate Lens Fixture Body Replace Faceplate Place the lens and faceplate onto the fixture body and secure with previously removed screws in a Faceplate star pattern.
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2020, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AWL-5005-B-BZ-ver1.pdf...
