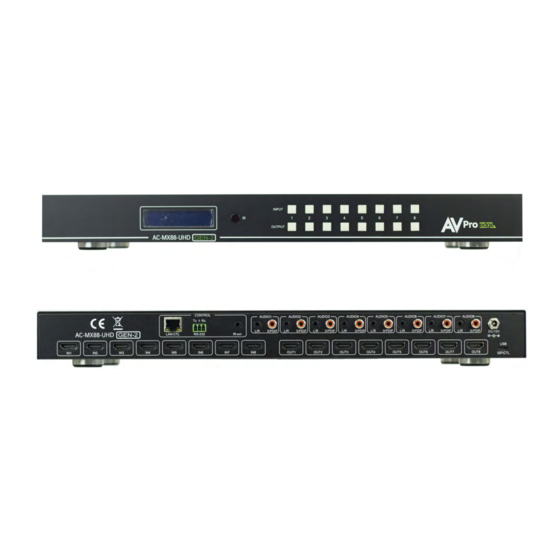

AVProEdge AC-MX88-UHD-GEN2 Quick Start Manual

AC-MX88-UHD-GEN2
8x8HDMI Matrix w/ Audio De-Embedding 4K 60Hz
Quick Start Guide
The AC-MX88-UHD is a true 8x8 HDMI matrix switch. Supporting HDMI 2.0, HDCP 2.2, up to 4K video resolution, and
up to 10.2 Gbpsbandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles,
PCs, etc...) to be shown on any of the connected displays. This matrix equalizes and amplifies the output to
ensure the HDMI signal can be transmitted through long HDMI cables without loss of quality. You can extend
your distance further with the AC-EX70-UHD HDMI Extender. Full EDID management allows maximum flexibility
with todays wide mixture of sources and displays.This is an ideal solution for digital entertainment centers,
HDTV retail, show sites, data centers, schools, conference and training centers and more!
This quick start guide will be going through:
• Install
• Front pannel control
• Edid
• Troubleshooting

InstALLATION

1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX88-UHD
2.Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the AC-MX88-UHD
3.Power on the sources
4.Connect the power supply into the AC-MX88-UHD
5.Turn on output devices/displays
6.You may now use the front panel controls, supplied IR remote or free PC software to control the
switch

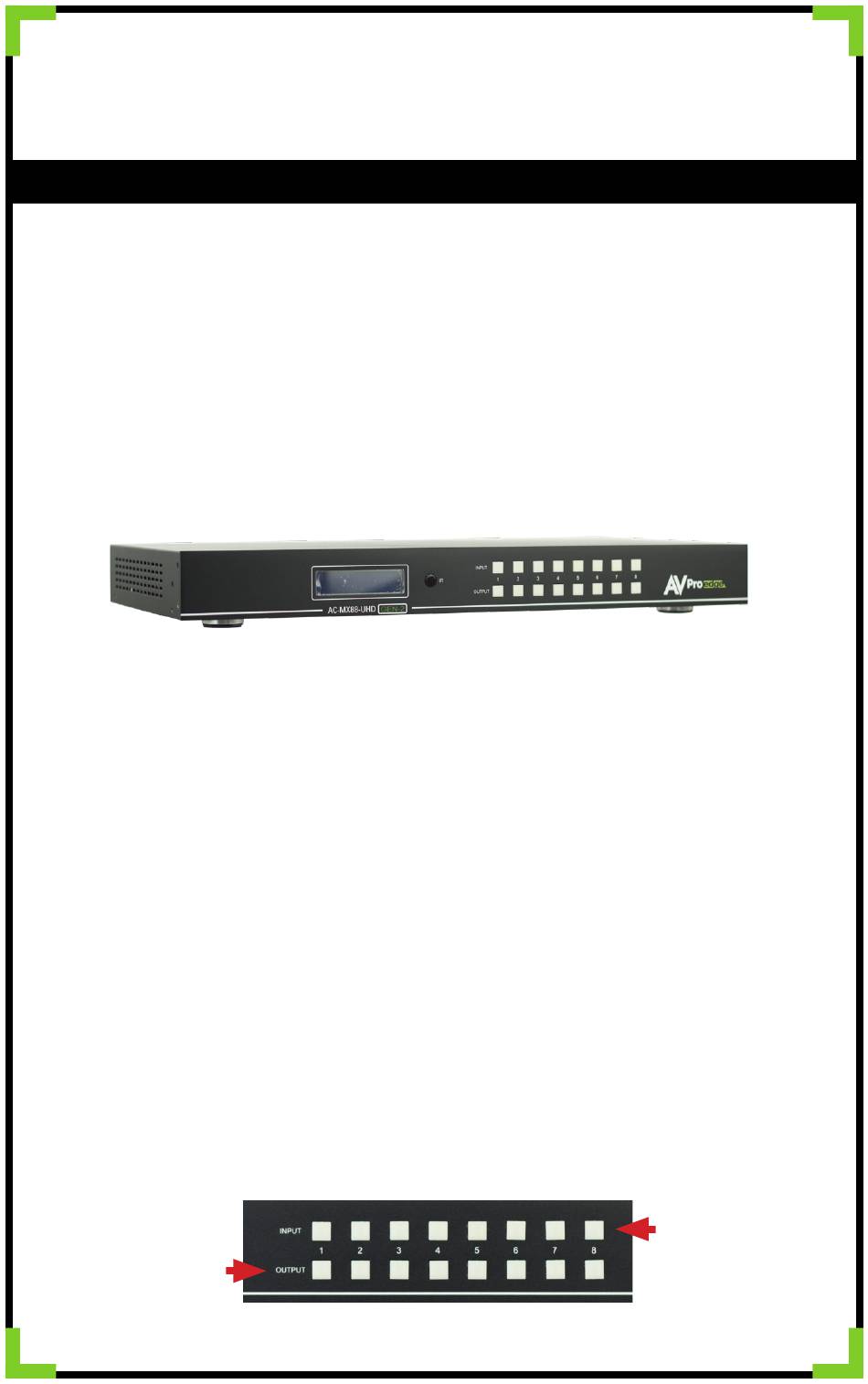

Front Panel Control

inputs to the various outputs.
press a button oN the INPUT row to select the input signal for the selected output.
Select Your
Output First
: The AC-MX-88-UHD front panel controls allow for the selectioN of the
First press a button on the OUTPUT row to choose the output port, then
Then Select
Your Input
