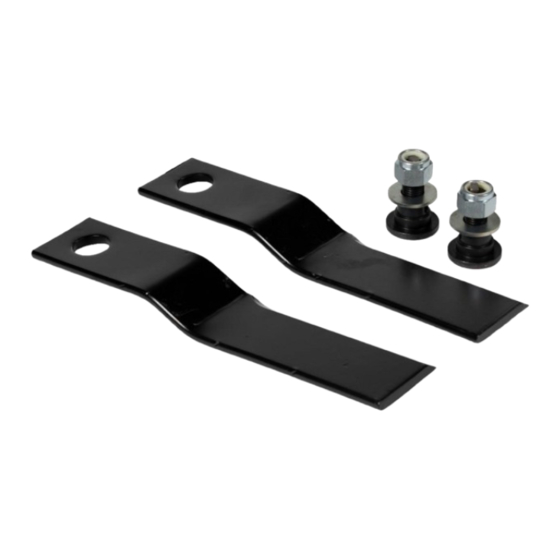

PRO SERIES REPLACEMENT
ROTERY CUTTER BLADES
RBPRORC60, RBPRORC72
191589, 191590
Operator's Manual
Read the Operator's Manual entirely.
When you see this symbol, the
subsequent instructions and warnings are
serious follow without exception. Your life
and the lives of others depend on it!

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Titan Attachments PRO Series

  • Page 1 PRO SERIES REPLACEMENT ROTERY CUTTER BLADES RBPRORC60, RBPRORC72 191589, 191590 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2 PARTS DIAGRAM / EXPLODED VIEW ITEM REF. NO. DESCRIPTION REMARK 4030100348 STSRC48 BLADE MOUNT WELDMENT 4030100352 STSRC60 4020000194 BLADE BOLT 4290200015 STSRC48 CUTTER BLADE 4290200013 STSRC60 4010000163 BLADE PLAIN WASHER 7030500021 LOCKNUT M27 BCL120.00.00.007 FLAT KEY 10X8X16.5...
  • Page 3: Cutting Blade Maintenance

    CUTTING BLADE MAINTENANCE DANGER as follows: To avoid serious injury or death: Place tractor gear selector in park and/or Always disconnect driveline from power • set brakes, shut engine off, and remove take-off shaft before servicing underside of • ignition key. cutter.
  • Page 4: Troubleshooting

    WARNING Carefully check cutting edges of blades in To avoid serious injury or death: relation to blade carrier rotation to ensure A locknut that has been removed can lose its correct blade placement. Blade Rotation is thread locking properties. Reusing a used locknut counterclockwise with cutting edge leading.
  • Page 5 PROBLEM CAUSE SOLUTION CUTTING ON SANDY GROUND RAISE CUTTING HEIGHT BLADES WEARING CONTACTING GROUND EXCESSIVELY RAISE CUTTING HEIGHT FREQUENTLY BLADE BREAKING HITTING SOLID OBJECTS AVOID HITTING SOLID OBJECTS TIGHTEN BLADE HARDWARE BLADE DOES NOT TIGHTEN (REFER TO “CUTTING BLADE PROPERLY MAINTENANCE”...
  • Page 6 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
  • Page 7 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
