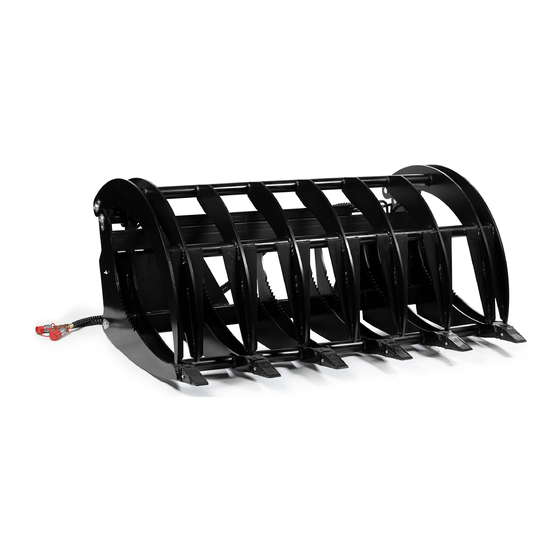

Extreme root grapple rake

Advertisement

Quick Links

EXTREME ROOT GRAPPLE RAKE
HD60RAKE, HD72RAKE, HD84RAKE
113301, 113201, 113104
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD60RAKE and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Attachments HD60RAKE

  • Page 1 EXTREME ROOT GRAPPLE RAKE HD60RAKE, HD72RAKE, HD84RAKE 113301, 113201, 113104 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION THESE ARE STANDARD PRACTICES THAT MAY NOT APPLY TO THE PRODUCTS DESCRIBED IN THIS MANUAL. SAFETY AT ALL TIMES Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them. Do not allow anyone to operate this equipment who has not thoroughly read and comprehended this manual.
  • Page 3: For Your Protection

    BE AWARE OF SAFETY ALERT WORDS DANGER: Indicates imminently hazardous practices. A situation that, if not avoided, will result in death or severe injury. The signal word is limited to the most extreme situation, typically for machine components that, for functional purposes, cannot be guarded. WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or severe injury, and includes hazards that are exposed when guards remove.
  • Page 4: Prepare For Emergencies

    Operator’s Manual for additional information. Work in a clean, dry area • Lower the implement to the ground, put the tractor in park, turn off the engine, and • remove the key before maintenance. • Allow implement to cool completely. Do not grease or oil implement while it is in operation.
  • Page 5 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION TOP JAW HOSE A FRAME HOSE B CYLINDER (10) HOSE C TOP CYLINDER PIN (11) HOSE D BOTTOM CYLINDER (12) HOSE E-FEED/RETURN JAW PIN (13) TOOTH T-FITTING...
  • Page 6 SPECIFICATION CHARTS MODEL 60-IN EXTREME ROOT GRAPPLE RAKE ATTACHMENT HD60RAKE OPENING HEIGHT 50-IN. OVERALL WIDTH 60-IN. TEETH LENGTH 35.5-IN. SIDE THICKNESS 0.5-IN. PRODUCT WEIGHT 815 LB. MODEL 72-IN EXTREME ROOT GRAPPLE RAKE ATTACHMENT HD72RAKE OPENING HEIGHT 50-IN. OVERALL WIDTH 72-IN.
  • Page 7: Maintenance

    MAINTENANCE We recommend applying grease after every 8 hours of use to various grease points on the grapple TEETH REPLACEMENT: Teeth can easily be replaced by removing the pin and inserting another tooth. Contact Titan Customer Service to order additional teeth (MPN: LW80KIT).
  • Page 8 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
  • Page 9 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
