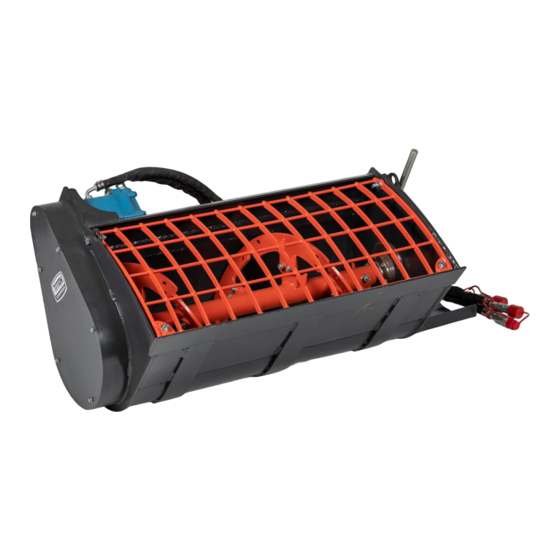

- Page 1 MINI SKID STEER CONCRETE MIXER BUCKET TORO35CBUCKET 191621 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
-
Page 2: General Comments
When servicing your concrete mixer, please remember to use only manufacturer replacement parts. Substituted parts should be purchased from Titan Attachments. To facilitate parts ordering, please record the model No. and serial No. of the metal plate on your unit and contact our customer service team. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION THESE ARE STANDARD PRACTICES THAT MAY NOT APPLY TO THE PRODUCTS DESCRIBED IN THIS MANUAL. SAFETY AT ALL TIMES Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them. Do not allow anyone to operate this equipment who has not thoroughly read and comprehended this manual. -
Page 4: For Your Protection
BE AWARE OF SAFETY ALERT WORDS DANGER: Indicates imminently hazardous practices. A situation that, if not avoided, will result in death or severe injury. The signal word is limited to the most extreme situation, typically for machine components that, for functional purposes, cannot be guarded. WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or severe injury, and includes hazards that are exposed when guards remove. -
Page 5: Practice Safe Maintenance
Engage parking brake when stopped on an incline. • IMPORTANT: Do not tow a load that is more than double the weight of the tractor. Use towing vehicle and trailer of adequate size and capacity. Secure equipment towed • on trailer with tie downs and chains. Sudden braking can cause a towed trailer to swerve and upset. -
Page 6: Wear Protective Equipment
WEAR PROTECTIVE EQUIPMENT Wear protective clothing and equipment appropriate for the job. Avoid loose-fitting • clothing. Prolonged exposure to loud noise can cause hearing impairment or hearing loss. Wear • suitable hearing protection such as earmuffs or earplugs. Operating equipment safety requires the full attention of the operator. Avoid wearing •... - Page 7 OPERATION INSTRUCTIONS The concrete mixer has the lateral discharge hole with manual opening. It can help to realize the quickness and high efficiency to discharge the material. Attach the concrete mixer to the toolbar or quick attach mechanism of your skid steer loader. RAISING OR LOWERING THE CONCRETE MIXER Raise or lower the concrete mixer by raising or lowering the skid steer loader arms through their appropriate skid steer controls.
-
Page 8: Maintenance Instructions
MAINTENANCE INSTRUCTIONS 1. Always keep hydraulic oil clean, keep the hose joint clean, if the hydraulic oil is mixed with dirt, it will possibly cause the whole operation system to operate abnormally. 2. Check daily that all hydraulic lines have good connection to implement and host machine. Also check for wear, cracking, and no loose joints are leaking. -
Page 9: Specifications
SPECIFICATIONS MODEL TORO35CBUCKET TOTAL LENGTH (IN) 22.5 TOTAL WIDTH (IN) TOTAL HEIGHT (IN) 22.25 TOTAL WEIGHT (LBS) BUCKET CAPACITY SYSTEM FLOW (GPM) 5 - 10.5 MAX PRESSURE (PSI) 3045 DISCHARGE MATERIAL FORM SIDE DISCHARGING... - Page 10 PARTS DIAGRAM / EXPLODED VIEW...
- Page 11 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 12 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
