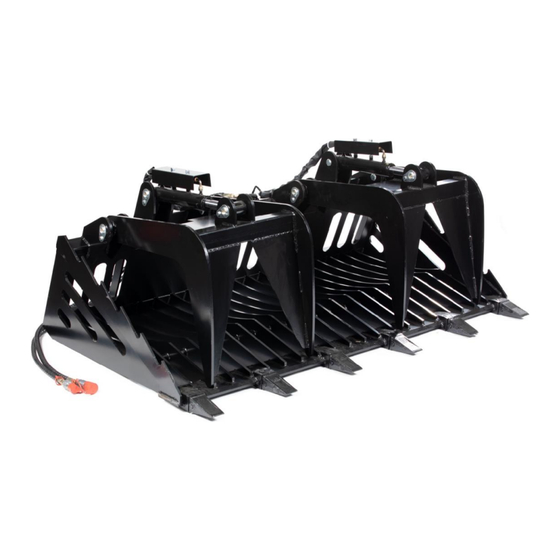

FINE-GRADE SKELETON ROCK GRAPPLE BUCKET
60RBFGGRAP, 72RBFGGRAP, 82RBFGGRAP
115018, 115016, 115017
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Titan Attachments 60RBFGGRAP
Summary of Contents for Titan Attachments 60RBFGGRAP
- Page 1 FINE-GRADE SKELETON ROCK GRAPPLE BUCKET 60RBFGGRAP, 72RBFGGRAP, 82RBFGGRAP 115018, 115016, 115017 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 IMPORTANT NOTES BEFORE PURCHASE OR USE 1. Before purchasing or using, always ensure your loader operating capacity is 2x the weight of the grapple. For example, if the grapple is 500-lbs, your loader should have at least a 1,000-lbs operating capacity. Refer to your user manual or dealer if needed to confirm your machine’s capabilities.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION THESE ARE STANDARD PRACTICES THAT MAY NOT APPLY TO THE PRODUCTS DESCRIBED IN THIS MANUAL. SAFETY AT ALL TIMES Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them. Do not allow anyone to operate this equipment who has not thoroughly read and comprehended this manual. -
Page 4: For Your Protection
BE AWARE OF SAFETY ALERT WORDS DANGER: Indicates imminently hazardous practices. A situation that, if not avoided, will result in death or severe injury. The signal word is limited to the most extreme situation, typically for machine components that, for functional purposes, cannot be guarded. WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or severe injury, and includes hazards that are exposed when guards remove. -
Page 5: Prepare For Emergencies
Operator’s Manual for additional information. Work in a clean, dry area • Lower the implement to the ground, put the tractor in park, turn off the engine, and • remove the key before maintenance. Allow implement to cool completely. • Do not grease or oil implement while it is in operation. -
Page 6: Maintenance
MAINTENANCE REPLACEMENT TEETH Teeth on the grapple can be easily replaced by removing the pin and inserting a new • tooth. Please contact Titan for purchasing replacements (LW80KIT). GREASE POINTS It is recommended that grease is re-applied to the lubrication points every 8 hours of use. •... - Page 7 PARTS DIAGRAM / EXPLODED VIEW...
- Page 8 PART DESCRIPTION NUMBER (1 & 2) P115012-1 TOP JAW ROCK BUCKET GRAPPLE P115012-3 FRAME ROCK BUCKET GRAPPLE P115012-4 RBGRAP CYLINDER P115012-5 PIN FOR GRAPPLE P115012-6 PIN FOR CYLINDER P115012-7 SHIELD FOR CYLINDER P115012-8 WASHER FOR SHILED P115012-9 SPRING WASHER FOR SHIELD P115012-10 (10) NUT M10...
- Page 9 SPECIFICATION CHARTS MODEL 60" ROOT GRAPPLE RAKE 60RBFGGRAP OPENING HEIGHT 35.5-IN. OVERALL WIDTH 61-IN. CUTTING EDGE 1-IN. X 60-IN. SIDE THICKNESS 0.5-IN. MIN LOADER RATED 1,698 LB OPERATING CAPACITY MAX LOADER RATED 3,500 LB OPERATING CAPACITY PRODUCT WEIGHT 849 LB.
- Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 11 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2023 Titan Brands...
