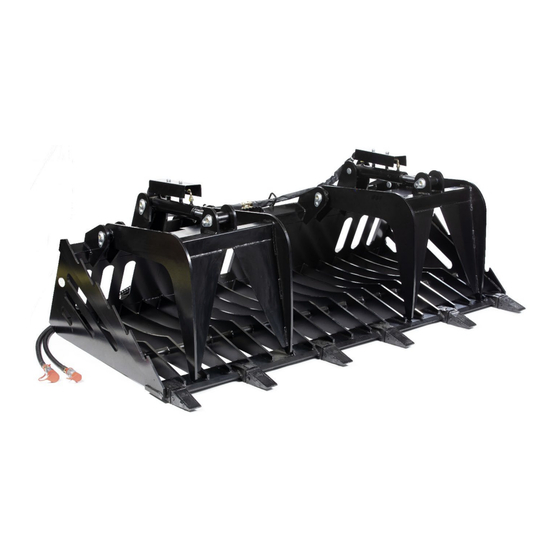

- Page 1 ROCK BUCKET GRAPPLE 72RBGRAP, 82RBGRAP 115012, 115013 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION THESE ARE STANDARD PRACTICES THAT MAY NOT APPLY TO THE PRODUCTS DESCRIBED IN THIS MANUAL. SAFETY AT ALL TIMES Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them. Do not allow anyone to operate this equipment who has not thoroughly read and comprehended this manual. -
Page 3: For Your Protection
BE AWARE OF SAFETY ALERT WORDS DANGER: Indicates imminently hazardous practices. A situation that, if not avoided, will result in death or severe injury. The signal word is limited to the most extreme situation, typically for machine components that, for functional purposes, cannot be guarded. WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or severe injury, and includes hazards that are exposed when guards remove. -
Page 4: Prepare For Emergencies
Operator’s Manual for additional information. Work in a clean, dry area • Lower the implement to the ground, put the tractor in park, turn off the engine, and • remove the key before maintenance. Allow implement to cool completely. • Do not grease or oil implement while it is in operation. -
Page 5: Maintenance
MAINTENANCE REPLACEMENT TEETH Teeth on the grapple can be easily replaced by removing the pin and inserting a new • tooth. Please contact Titan for purchasing replacements (LW80KIT). GREASE POINTS • It is recommended that grease is re-applied to the lubrication points every 8 hours of use. - Page 6 PARTS DIAGRAM / EXPLODED VIEW...
- Page 7 PART DESCRIPTION (1 & 2) P115012-1 TOP JAW ROCK BUCKET GRAPPLE P115012-3 FRAME ROCK BUCKET GRAPPLE P115012-4 RBGRAP CYLINDER P115012-5 PIN FOR GRAPPLE P115012-6 PIN FOR CYLINDER P115012-7 SHIELD FOR CYLINDER P115012-8 WASHER FOR SHILED P115012-9 SPRING WASHER FOR SHIELD P115012-10 (10) NUT M10...
- Page 8 ROCK ROCK MODEL ROCK ROCK ROCK BUCKET BUCKET GRAPPLE GRAPPLE GRAPPLE GRAPPLE GRAPPLE RAKE RAKE RAKE RAKE RACK 82RBFGGRAP 72RBFGGRAP 60RBFGGRAP 72RBGRAP 82RBGRAP 35.5-IN. 35.5-IN. 35.5-IN. 35.5-IN. 35.5-IN. OPENING OVERALL 83-IN. 73-IN. 61-IN. 73-IN. 83-IN. WIDTH INSIDE 82-IN. 72-IN. 60-IN.
- Page 9 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 10 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
