Summary of Contents for Titan Attachments 3SHANKRIP

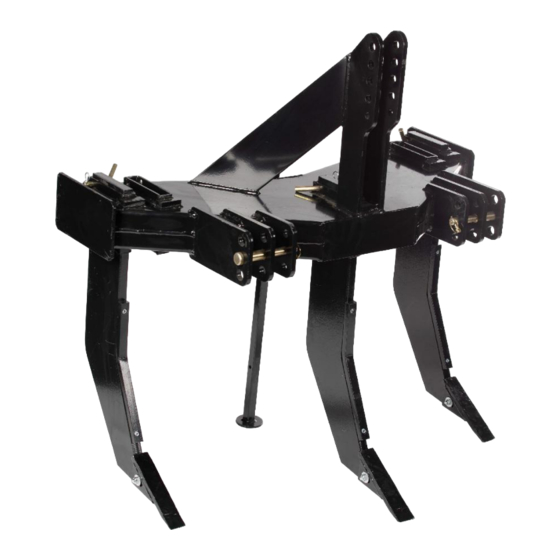

- Page 1 3 SHANK SUBSOILER 3SHANKRIP 191346 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 INTRODUCTION CAUTION THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE 1. Select an area for assembly that is clean and free of any debris which might cause persons working on the assembly to trip. 2.
- Page 3 OPERATIONAL 1. The use of this equipment is subject to certain hazards which cannot be protected against by mechanical means or product design. All operators of this equipment must read and understand this entire manual, paying particular attention to operating, prior to using. If there is something in this manual you do not understand, ask your supervisor, or your dealer, to explain it to you.
- Page 4 3 SHANK RIPPER PARTS DIAGRAM / EXPLODED VIEW ITEM DESCRIPTION ITEM DESCRIPTION MAIN FRAME WEAR STRIP SHANK BOLT M10*20 STAND (10) LOCK PIN TINE (11) LIFT PIN BOLT M10*60 (12) O PIN FLAT WASHER (Φ10) (13) PIN （Φ16） LOCK NUT（M10） (14) HAIR PIN...
- Page 5 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 6 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
