OWNER'S MANUAL
MPN(s): 48TRENCHER
SKU(s): 191503
UPC(s): 840009205682

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 48TRENCHER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan Attachments 48TRENCHER

Summary of Contents for Titan Attachments 48TRENCHER

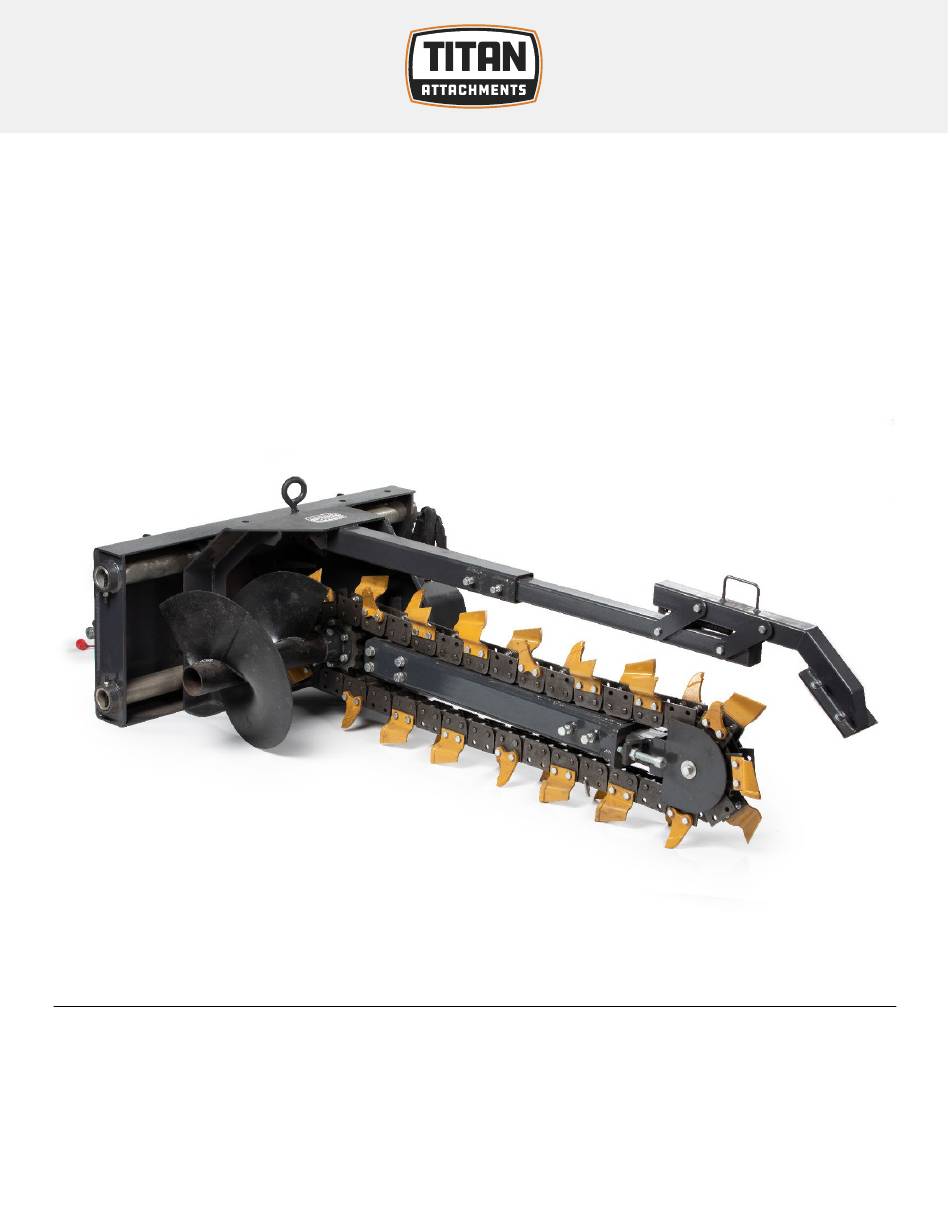

  • Page 1 OWNER’S MANUAL MPN(s): 48TRENCHER SKU(s): 191503 UPC(s): 840009205682...

  • Page 2: Safety Instructions

    • Wear safety clothing, protective glasses during use to ensure safety. • Do not modify the equipment under any circumstance. For part replacements, please contact Titan Attachments Customer Service. • Never operate the host machine or trencher while under the influence of drugs or alcohol.
  • Page 3 TRENCHER KEY COMPONENTS 1. Crumber Arm 2. Chain 3. Teeth 4. Chain Tensioning Assembly 5. Hydraulic Motor 6. Hydraulic Hoses 7. Manual Side Shift Adjustment Pin 8. Mount Plate 9. Auger 10. Skid Plate...
  • Page 4 TRENCHER SPECIFICATIONS...

  • Page 5: Pre-Operation Checklist

    OPERATION INSTRUCTION PRE-OPERATION CHECKLIST 1. Check for any loose or missing guards and shields on the trencher. 2. Inspect hoses and hose connections for any leaks. Replace hoses and hose connections as necessary. 3. Check the chain tension before operating the trencher. 4.
  • Page 6 ENGAGING GROUND: 1. With trencher chain operating and weight applied to the skid plate, gradually rotate the trencher downward so it penetrates the ground. Always keep the skid plate pressed to the ground when cutting. 2. When the flat face of the skid plate is firmly in contact with the ground, slowly reverse the skid steer machine.

  • Page 7: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS 1. DAILY INSPECTIONS a. Check chain tension meets recommend spec above. b. Check for tooth wear: designed for varying trenching conditions this implement comes installed with alternating tooth styles. When replacing teeth, we recommend maintaining this alternating assembly. c.
  • Page 8 PARTS DIAGRAM / EXPLODED VIEW...
  • Page 11 This concludes the 48TRENCHER Owner’s Manual. If applicable to your product, make sure to tighten all nut-and-bolt combinations before use. Enjoy! TITAN LIMITED WARRANTY: TERMS, EXCLUSIONS AND LIMITATION OF REMEDIES This product comes with a one (1) year limited warranty that can be found at palletforks.com/warranty.html.

This manual is also suitable for:

191503

Table of Contents
