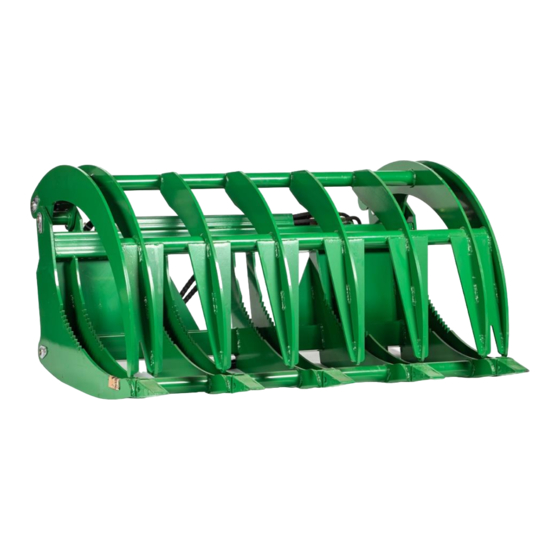

EXTREME ROOT GRAPPLE RAKE
FITS JOHN DEERE TRACTORS
JDHD60RAKE, JDHD72RAKE, JDHD84RAKE
113302, 113202, 113102
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Advertisement
Table of Contents
Related Manuals for Titan Attachments JDHD60RAKE
Summary of Contents for Titan Attachments JDHD60RAKE
- Page 1 EXTREME ROOT GRAPPLE RAKE FITS JOHN DEERE TRACTORS JDHD60RAKE, JDHD72RAKE, JDHD84RAKE 113302, 113202, 113102 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives...
- Page 2 IMPORTANT NOTES BEFORE PURCHASE OR USE 1. Before purchasing or using, always ensure your loader operating capacity is 2x the weight of the grapple. For example, if the grapple is 500-lbs, your loader should have at least a 1,000-lbs operating capacity. Refer to your user manual or dealer if needed to confirm your machine’s capabilities.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION THESE ARE STANDARD PRACTICES THAT MAY NOT APPLY TO THE PRODUCTS DESCRIBED IN THIS MANUAL. SAFETY AT ALL TIMES Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them. Do not allow anyone to operate this equipment who has not thoroughly read and comprehended this manual. -
Page 4: For Your Protection
CAUTION: Indicates a potentially hazardous situation that may result in minor or moderate injury if not avoided. It may also be used to alert against unsafe practices. FOR YOUR PROTECTION Thoroughly read and understand the “Safety Label” section, read all instructions noted on them. SHUTDOWN AND STORAGE Lower machine to the ground, put the tractor in park, turn off the engine, and remove the •... -
Page 5: Prepare For Emergencies
PREPARE FOR EMERGENCIES Be prepared if a fire starts. • Keep a first aid kit and fire extinguisher handy • Keep emergency numbers for doctor, ambulance, hospital, and fire department near the • phone. WEAR PROTECTIVE EQUIPMENT Wear protective clothing and equipment appropriate for the job. Avoid loose-fitting •... -
Page 6: Lifting A Load
LIFTING A LOAD 1. Approach the load with grapple jaws fully open. Always ensure you are approaching and lifting loads with weight centered on grapple. Do not attempt to lift loads that are off- center. 2. Once the lower tines are underneath the load, close the jaws fully to secure the load. Once the jaws are clamping the load, immediately release pressure. - Page 7 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION TOP JAW HOSE A HOOK & PIN FRAME HOSE B CYLINDER (10) HOSE C TOP CYLINDER PIN (11) HOSE D BOTTOM CYLINDER (12) HOSE E-FEED/RETURN JAW PIN (13) TOOTH T-FITTING • Fits John Deere Tractors with the Hook and Pin Attachment •...
- Page 8 SPECIFICATION CHARTS 60" EXTREME ROOT GRAPPLE RAKE JDHD60RAKE RECOMMENDED SERIES SERIES 2, 3, & 4 TRACTORS OPENING HEIGHT 48-IN. OVERALL WIDTH 60-IN. TEETH LENGTH 24-IN. SIDE THICKNESS 0.5-IN. MIN LOADER RATED 1652 LB OPERATING CAPACITY MAX LOADER RATED 3500 LB...
-
Page 9: Maintenance
MAINTENANCE We recommend applying grease after every 8 hours of use to various grease points on the grapple TEETH REPLACEMENT: Teeth can easily be replaced by removing the pin and inserting another tooth. Contact Titan Customer Service to order additional teeth (MPN: LW80KIT). - Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 11 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2022 Titan Brands...
