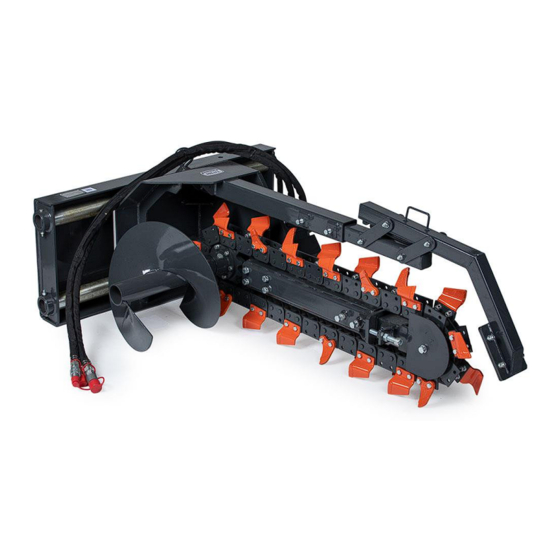

- Page 1 TRENCHER SKID STEER ATTACHMENT 36TRENCHER, 48TRENCHER 191622, 191503 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 • Wear safety clothing, protective glasses during use to ensure safety. • Do not modify the equipment under any circumstance. For part replacements, please contact Titan Attachments Customer Service. • Never operate the host machine or trencher while under the influence of drugs or alcohol.
-
Page 3: Skid Plate
TRENCHER KEY COMPONENTS 1. CRUMBER ARM 2. CHAIN 3. TEETH 4. CHAIN TENSIONING ASSEMBLY 5. HYDRAULIC MOTOR 6. HYDRAULIC HOSES 7. MANUAL SIDE SHIFT ADJUSTMENT PIN 8. MOUNT PLATE 9. AUGER 10. SKID PLATE... -
Page 4: Pre-Operation Checklist
TRENCHER SPECIFICATIONS OVERALL LENGTH 92.7” OVERALL WIDTH 52.4” OVERALL HEIGHT 30.2” WEIGHT 950 LB TRENCHING DEPTH AT 65-DEGREES 47.2” TRENCHING WIDTH 5.9” WORKING FLOW RANGE 23.7-29 GPM WORKNG PRESSURE 2321-3045 PSI OPERATION INSTRUCTIONS PRE-OPERATION CHECKLIST 1. Check for any loose or missing guards and shields on the trencher. 2. -
Page 5: Operation Procedures
OPERATION PROCEDURES • Test the functions of the trencher in a clear, open area with skid steer in idle. Understand the controls of the trencher and operating machine before beginning operation. • ALWAYS survey the area prior to working and consider the ground conditions. Avoid underground hazards such as utility lines, hidden stumps, etc. -
Page 6: Daily Inspections
MAINTENANCE INSTRUCTIONS DAILY INSPECTIONS 1. Check chain tension meets recommend spec above. 2. Check for tooth wear: designed for varying trenching conditions this implement comes installed with alternating tooth styles. When replacing teeth, we recommend maintaining this alternating assembly. 3. Check for any loose hardware and tighten as necessary. 4. - Page 7 PARTS DIAGRAM / EXPLODED VIEW PARTS DIAGRAM / EXPLODED VIEW PART DESCRIPTION REMARK 02072401 AUGER BIT 02072402 BOLT 02072403 SPRING WASHER 02072404 02072405 LINK HARNESS 02072406 BOLT 02072407 SPRING WASHER 02072408 02072409 SPROCKET (10) 02072410 STEEL TUBE (11) 02072411 CONNECT BRAME (12) 02072412 PIN HEAD...
- Page 8 (13) 02072413 BOLT (14) 02072414 SPRING WASHER (15) 02072415 (16) 02072416 MAIN FRAME (17) 02072417 BOLT (18) 02072418 FLAT GASKET (19) 02072419 SPRING WASHER (20) 02072420 (21) 02072421 CYCLOID MOTOR (22) 02072422 BOLT (23) 02072423 SPRING WASHER (24) 02072424 BOLT (25) 02072425 BOLT...
- Page 9 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 10 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
