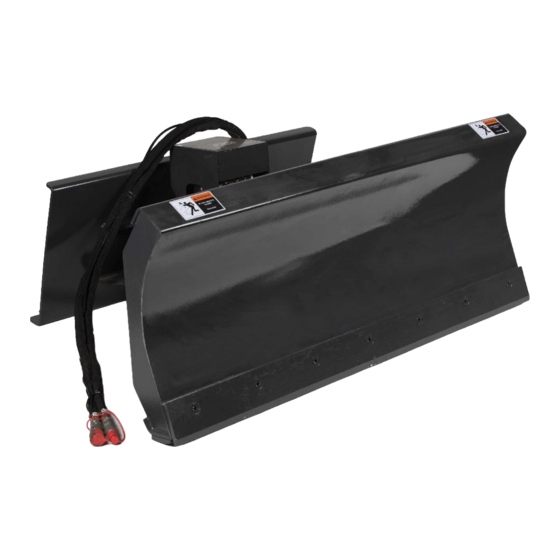

- Page 1 6 WAY DOZER BLADE SS6DOZER72, SS6DOZER84 191606, 191607 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
-
Page 2: General Comments
NOTES FROM TITAN Please read the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly • TO OPERATE THIS IMPLEMENT, USER MUST FIRST CONNECT TO EXTERNAL 12V POWER SOURCE. -
Page 3: Important Safety Information
TO THE OPERATOR 1. Warning! Protect Against Flying Debris – Always wear proper safety glasses, goggles, or a face shield when driving pins in or out, or when any operation causes dust, flying debris, or any other hazardous material. 2. Don’t modify the dozer blade casually. 3. -
Page 4: Look For The Safety Alert Symbol
LOOK FOR THE SAFETY ALERT SYMBOL The SAFETY ALERT SYMBOL indicates a potential hazard to personal safety, and individuals must take safety precautions. When you see this symbol, be alert and carefully read the message that follows it. In addition to the design and configuration of equipment, hazard control and accident prevention depend on the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage. -
Page 5: Transport Machinery Safely
• Lower attached implement to the ground and follow all shutdown procedures before leaving the operators seat to perform maintenance. • Allow implement to cool completely before working on it • Disconnect battery ground cable (-) before servicing or adjusting electrical systems or before welding on implement. -
Page 6: Tire Safety
• Wear protective clothing and equipment appropriate for the job. Avoid loose-fitting clothing. • Prolonged exposure to loud noise can cause hearing impairment or hearing loss. Wear suitable hearing protection such as earmuffs or earplugs. • Operating equipment safety requires the full attention of the operator. Avoid wearing radio headphones while operating machinery. -
Page 7: Maintenance Instructions
OPERATION INSTRUCTIONS 1. Manifold Block 2. Solenoid Valve 3. Deflection Cylinder 4. Kingpin 5. Cylinder Pin 6. Push Shovel 7. Cutting Blade 8. Bottom Blade 9. Steering Cylinder 10. Hitch Frame 1. Know this dozer blade’s loading capacity, working pressure of hold should be ≤20MPa. 2. -
Page 8: Storage Instructions
replacement. STORAGE INSTRUCTIONS a. After working, remove all piece, dirt, and grease on attachment. b. Attachment should be stored in a dry and non-corrosive environment to avoid attachment surface from rust. c. When stock dozer blade, it needs fix-frame, it will be easy to connect host with attachment during next operation. - Page 9 PARTS DIAGRAM / EXPLODED VIEW...
- Page 10 PART DESCRIPTION NOTE NUMBER 030960-1 BLADE 030960-2 PUSH SHOVEL 030960-3 DEFLECTION CYLINDER 030960-4 030960-5 BLADE 030960-6 ADJUST WASHER 030960-7 PRESSING PLATE 030960-8 CONNECTION PART 030960-9 DEFLECTION PIN 030960-10 VALVE COVER 030960-11 ADJUST WASHER RING 030960-12 030960-13 PRESSING COVER 030960-14 STEERING CYLINDER 030960-15 HITCH FRAME M16X45 COUNTERSUNK...
- Page 11 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
