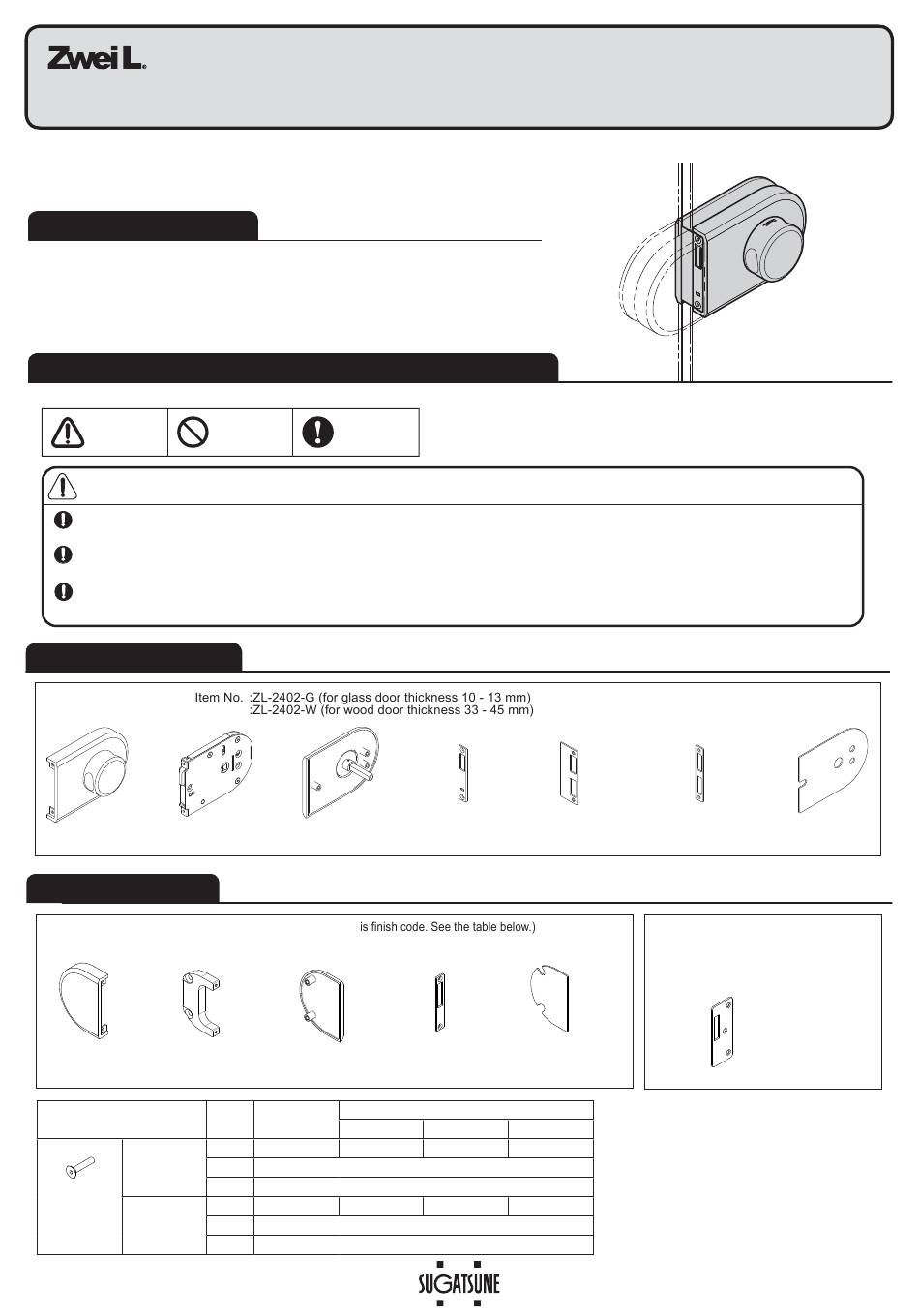

SUGATSUNE Zwei L ZL-2402 Installation Instruction

Sliding Door Latch, Model ZL-2402
Thank you for selecting our product. Before starting installation,
please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
●
Sliding door latch with thumb turn and indicator
● Closing mechanism leaves no gap between door and doorjamb.
● Safety mechanism allows the hook to work only when the door is closed.
● Hook and trigger don't protrude when the door is opened.
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
Meaning of symbols
Warning
Caution
Caution
If not followed injury or damage may result.
Make sure to follow the designated measurements, specifications, and horizontal/vertical angles. Make sure that the frame is not
warped, since it may affect the movement of the door.
This product is a part for architectural fittings. After installation, make sure to test the finished product thoroughly to ensure that
it is well-functioning and safe.
Make sure to check the screws for slack at regular intervals (one month from first usage, half a year, and then one time every year
is recommended).
PARTS COMPOSITION
Sliding door latch
① Housing ② Latch body
OPTIONAL PARTS
Strike box Item No.:ZL-2402 ＊＊ ( ＊＊
Attached tools: Hex key 3 mm. See table below for the attached screws.
⑨ Strike body
⑧ Strike box
Provided screws
Attached to
latch
Hexagon socket
Attached to
countersunk
strike box
head screw
Prohibited Required
③ Indicator
⑩ Cover
for glass door
Q'ty
t10 - 13
t33 - 37
3 M4×20 M4×45
1
2
2 M5×20 M5×45
1
2
Installation Instruction
（ZＬ-2402-G only）
④ Face plate ⑤ Inner plate
⑫ Gasket
⑪ Strike
2 pcs
for wood door
t38 - 42 t43 - 45
M4×50 M4×55
M3×10
M3×8
M5×50 M5×55
M3×16
M3×8
Provided tools: Hex key 2 mm, 2.5 mm.
See table below for the provided screws.
（ZＬ-2402-W only）
⑥ Inner plate
Strike plate
Item No. ZL-2402-FB
Provided screws: Countersunk
tapping screw
3x20 ... 3 pcs
⑬ Strike plate
⑦ Gasket
2 pcs
1
