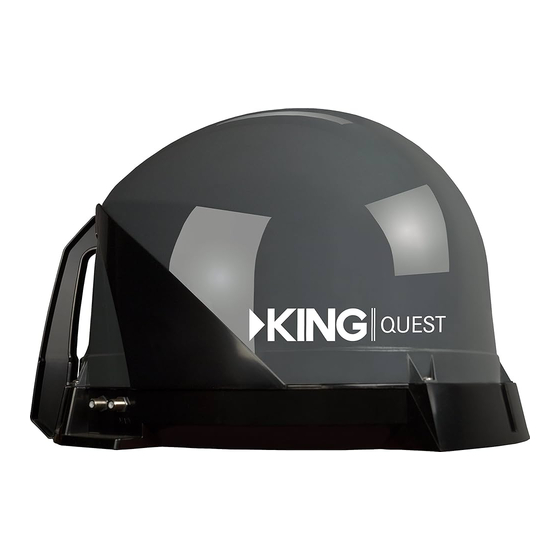

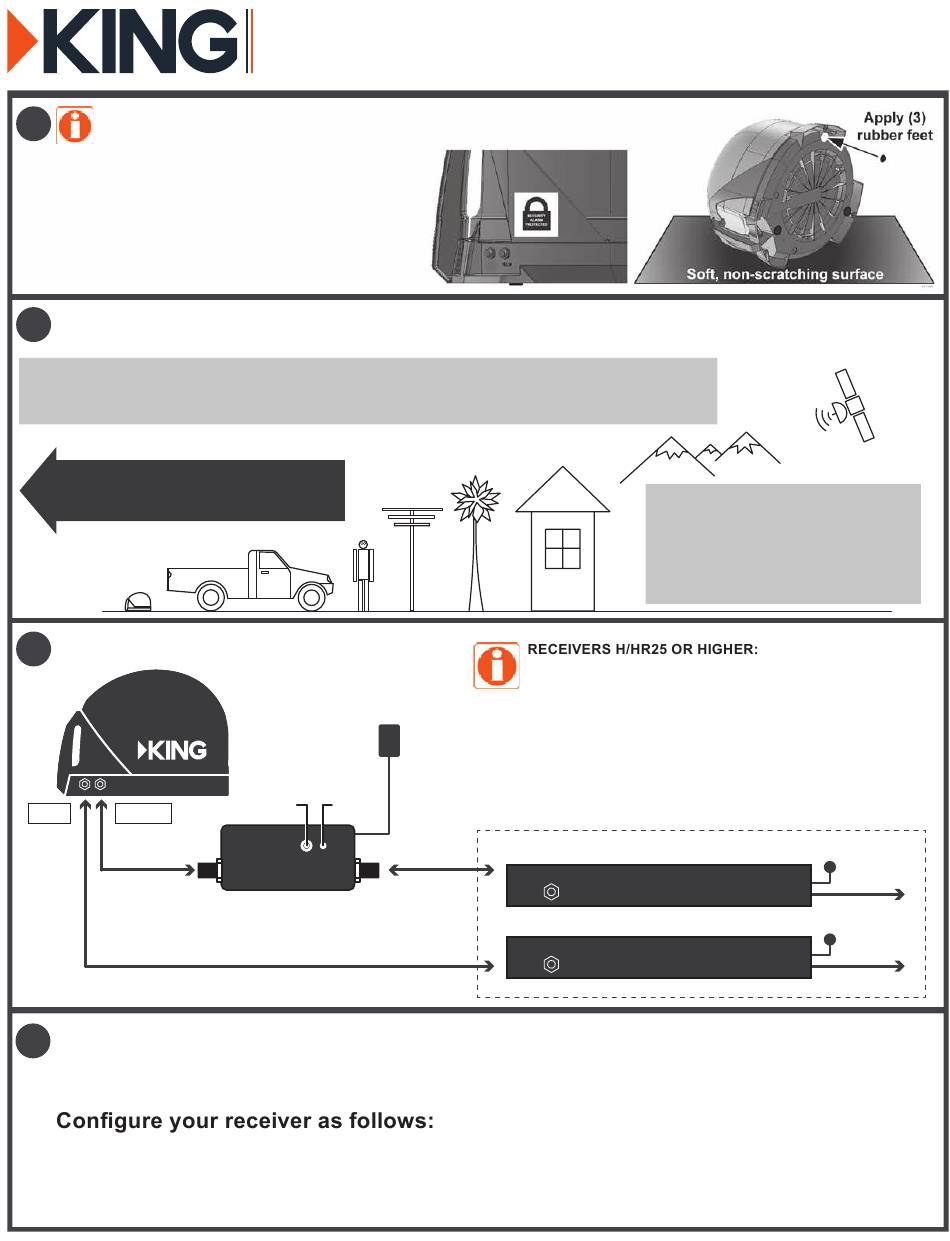

KING QUEST VQ4100 Quick Reference Manual

1
Do not apply rubber feet if you will be roof-mounting the antenna unit.
Lay the unit on a soft,
non-scratching surface
and apply the (3) rubber feet.
If enabling the alarm,
apply the included sticker
(see on-line owner's manual).
2
Place antenna unit in a location to scan for satellites.
Place the antenna unit on a stable and reasonably level surface with a clear view of the southern sky.
Be sure surface is dry and free of loose dirt or sand.
Pointing the handle approximately north
may speed up scan time, but is not
required for a successsful search.
ANTENNA
UNIT
3
Connect components.
AUX MAIN
Coax sold separately
Optional second receiver shown.
Make sure your TV is on the correct input from your receiver.
4
If your receiver screen does not appear on your TV, check TV input by
pressing Source/Input button located on your TV or TV's remote.
Switch Type: Multi-switch
Make this one-time setting in the receiver's satellite setup menu.
QUEST
™
OBSTRUCTIONS
KC1172
110 AC/DC
Power Supply
Button LED
ANT REC
KING Power Inserter
VQ4100 Quick Reference Guide
For use with DIRECTV
See on-line owner's manual for connections.
Use only the power inserter that came with this product.
Power inserter is for indoor use only.
Place the power inserter in an accessible location.
Do not over-tighten the coax connections.
Do not put sharp bends or kinks in the cables.
Do not route the cables where they can be tripped on
or run over by a vehicle.
Receivers sold separately
SAT IN
SAT IN
Dish Type: 3-LNB (18"x20") or 18x20" Triple-sat LNB
® satellite programming
IN SOUTHERN SKY
IMPORTANT!
Antenna unit must have a clear view
of the southern sky. Any tall objects
can block the signal from reaching
the antenna.
Main Receiver
Optional AUX Receiver
SATELLITES
110 VAC
To TV
110 VAC
To TV
KC1357
