MC-8FX Family
8-bit Microcontroller
MB95330 Series EV Board
MB2146-440-E Setup Guide
Doc. # 002-07604 Rev. *A
Cypress Semiconductor
198 Champion Court
San Jose, CA 95134-1709
Phone (USA): 800.858.1810
Phone (Intnl): +1.408.943.2600
www.cypress.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB95330 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cypress Semiconductor MB95330 Series

Summary of Contents for Cypress Semiconductor MB95330 Series

  • Page 1 MC-8FX Family 8-bit Microcontroller MB95330 Series EV Board MB2146-440-E Setup Guide Doc. # 002-07604 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 Phone (USA): 800.858.1810 Phone (Intnl): +1.408.943.2600 www.cypress.com...
  • Page 2 Copyrights Copyrights © Cypress Semiconductor Corporation, 2010-2016. This document is the property of Cypress Semiconductor Corporation and its subsidiaries, including Spansion LLC ("Cypress"). This document, including any software or firmware included or refer- enced in this document ("Software"), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries worldwide.
  • Page 3 All information included in this document is current as of the date it is issued. Such information is subject to change without any prior notice. Please confirm the latest relevant information with the sales representatives. MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...
  • Page 4 Inappropriate operating or storage environments may cause a fault. Use the product within the ranges given in the specifications. Damage Operation over the specified ranges may cause a fault. MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...
  • Page 5 It is recommended that it be stored in the original packaging. Transporting Damage the product may cause a damage or fault. Therefore, keep the packaging materials and use them when re-shipping the product. MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 6: Table Of Contents

    Adjust Motor Speed ......................17 Reverse Motor Rotation ......................17 4. Development Platform Quick Start Tools Setup Sequence ......................18 Open Project and Start Debug ....................18 5. Additional Informations Revision History MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 7: Bgm Adapter Manual

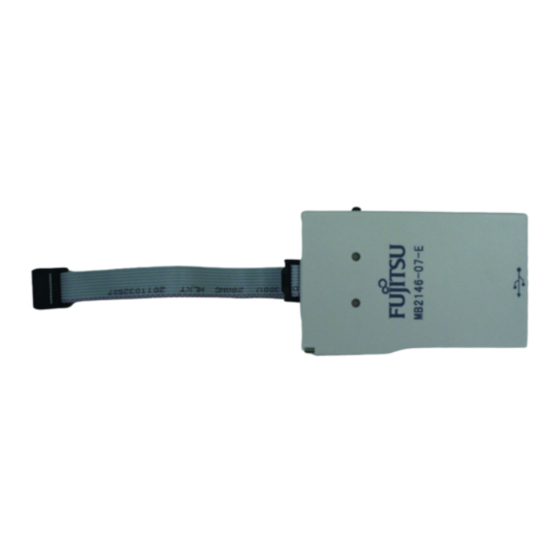

    BGM Adapter Manual BGM Adapter Overview Below is a close look of MB95330 Series BGM Adapter. The part number is MB2146-08-E. It provides a debugging platform for the MB95330 Series MCU in a small size of 55.7mm (W)  127mm (D)  30mm (H).

  • Page 8: Idc10 Interface Description

    If the connection is right, the following window will pop up. Follow the instructions displayed, and then click "Next". Figure 1-2. Install BGM Adapter in Windows (1) MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...
  • Page 9 Select “Install from a list or specific location (Advanced)”, then click “Next”, Figure 1-3. Install BGM Adapter in Windows (2) Select “…\Drivers” from the folder where SOFTUNE is installed, click “Next”, Figure 1-4. Install BGM Adapter in Windows (3) MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...
  • Page 10 Windows will install the driver automatically. Click “Finish” after the driver has completed the installation normally. Then users can find the BGM Adapter is recognized as MB2146-08 in Windows system. Figure 1-6. BGM Adapter is installed in Windows MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 11: Led Description

    Second, plug IDC10 cable to the EV-board (target MCU board), then turn on EV board. After that, check whether power LED on the BGM Adapter turns orange. Refer to Figure 1-8. Figure 1-8. BGM Adapter Power LED (2) Orange MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 12: Ev Board Introduction

    EV board Introduction EV board Overview MB95330 Series EV board provides a user-friendly evaluation platform for the MB95330 Family microcontroller. MB95330H/330K MCU EV board PN is MB2146-440-E. Figure 2-1 is a close look of EV-board. Figure 2-1. EV board Overview...

  • Page 13: Function List

    Function List This MB95330 Motor EV board provides a platform with inverter motor circuit, for user to evaluate MB95330 series MCU and demo 120 degree inverter driving solution together with sample code. It features the following functions, Provide IDC10 debug interface ■...

  • Page 14: Hw Module Description

    Hall sensor Show motor driving method: hall sensor or Back EMF Back EMF Reserve 2.4.6 Feedback Module The module inputs the motor back EMF signal to MCU. MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...
  • Page 15 250 V 3.0 A 3-phase FRFET inverter including high voltage integrated circuit (HVIC); ■ HVIC for gate driving and under voltage protection; ■ Optimized for low electromagnetic interference; ■ Isolation voltage rating of 1500 Vrms for 1min. ■ MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 16: Ev Board Operation

    LED3 turns off. It means the FW driving method is hall sensor. Note: The selection of the FW driving method should match with the selection of switchers. MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 17: Start And Stop Motor

    If you want to stop the motor, press the start/stop key again, and the LED1 turns off. It means motor is stopped. At the same time, you can see that the motor is stopped. LED1 Start/stop MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 18: Adjust Motor Speed

    Reverse Motor Rotation Pressing the reverse key can reverse motor rotation when the motor is stopped. The on and off of LED2 respectively indicate clockwise and counter clockwise. LED2 Reverse MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 19: Development Platform Quick Start

    Select "MB95F334 Motor Drive V1.0.prj" in "Open Space" window; ■ Click "Start debug" from "Debug" Menu. ■ If the entire procedure goes right, a debugging will start normally. MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 20: Additional Informations

    Additional Informations For more informations please visit our websites: http://www.cypress.com/products/microcontrollers/pages/tool-detail-mb2146-440-e.aspx http://www.cypress.com/documentation/development-kitsboards/mb2146-08-e Please contact your local support team for any technical question. MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...

  • Page 21: Revision History

    MC-8FX Family 8-bit Microcontroller, MB95330 Series EV Board MB2146-440-E Setup Guide Document Number: 002-07604 Origin of Revision ECN# Issue Date Description of Change Change  09/28/2010 HUAL Initial release 5300966 06/08/2016 HUAL Migrated to Cypress format MB95330 Series EV Board MB2146-440-E Setup Guide, Doc. # 002-07604 Rev. *A...
