CYW920721B2EVK-02 EVALUATION KIT QUICK START GUIDE
CYW920721B2EVK 02 EVALUATION KIT

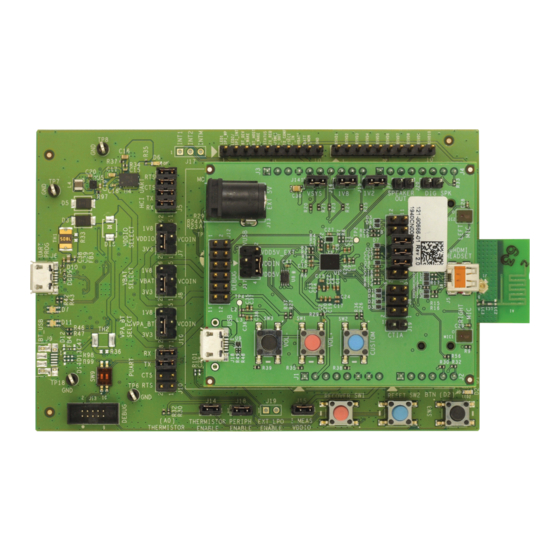

1. Ensure that Audio shield is connected on CYW920721B2EVB-02 and jumper setting are
same as shown in the image on top.
2. Connect USB Cable between PC and CYW920721B2EVB-02
3. Connect Earphones/headphone to audio jack on shield (J10).
4. Press User Button on CYW920721B2EVB-02 for 3 seconds and then scan Bluetooth
devices on phone/PC that you want to connect to this kit. Now, pair your phone/PC
to the kit.
5. Use any audio application on your device to stream music to CYW920721B2EVK-02 and
listen to it using the plugged earphone/headphones.
Kit Contents:
1. CYW920721B2EVB-02 Evaluation board
2. CYW9BTAUDIO2 Arduino shield
3. USB Standard-A to Micro-B cable
4. Power Adapter
5. Quick Start Guide (this document)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cypress Semiconductor CYW920721B2EVK-02
Summary of Contents for Cypress Semiconductor CYW920721B2EVK-02
- Page 1 4. Press User Button on CYW920721B2EVB-02 for 3 seconds and then scan Bluetooth devices on phone/PC that you want to connect to this kit. Now, pair your phone/PC to the kit. 5. Use any audio application on your device to stream music to CYW920721B2EVK-02 and listen to it using the plugged earphone/headphones.
- Page 2 12. Arduino Header (J11) 26. Motion Sensor (U2) 13. Recovery Button (SW1) 14. VDDIO Current Measurement Header (J15) © 2019 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered trademarks referenced herein are the property of their respective owners. 002-29179 Rev.**...
