- Page 1 Please note that Cypress is an Infineon Technologies Company. The document following this cover page is marked as “Cypress” document as this is the company that originally developed the product. Please note that Infineon will continue to offer the product to new and existing customers as part of the Infineon product portfolio.
- Page 2 FM4-U120-9B560 Quick Start Guide Doc. No. 002-05534 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 Phone (USA): 800.858.1810 Phone (Intnl): +1 408.943.2600 www.cypress.com...
- Page 3 Copyrights © Cypress Semiconductor Corporation, 2015- 2016. This document is the property of Cypress Semiconductor Corporation and its subsidiaries, including Spansion LLC (―Cypress‖). This document, including any software or firmware included or referenced in this document (―Software‖), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries worldwide.
-
Page 4: Table Of Contents
Install the Virtual Communication Port ........................6 Powering FM4-U120-9B560 Starter Kit ........................7 Run PCB Board Test Demonstration ........................... 8 Additional Resources ..............................11 Revision History ................................... 12 Document Revision History ............................12 FM4-U120-9B560 Quick Start Guide, Doc. No. 002-05534 Rev. *A... -
Page 5: Introduction

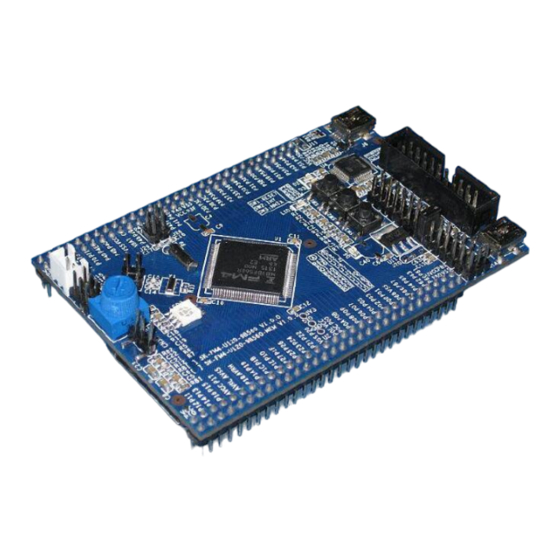

1.1 FM4-U120-9B560 Starter Kit ® ® FM4-U120-9B560 Starter Kit provides a low-cost solution to quickly start development on an ARM Cortex microcontroller. The FM4 MB9BF568R microcontroller comes pre-programmed with an interactive application to test all of the on-board features using a virtual communication port to send message prompts, input test parameters and output test results. -
Page 6: Windows Usb Driver Installation
2. Windows USB Driver Installation Windows USB drivers that are specific to the FM4-U120-9B560 starter kit need to be installed to run the virtual communication port. Follow the below instructions to install the Windows USB drivers. In the downloaded FM4-U120-9B560_CDvnn* (*version number) folder browse to /drivers/driverinstaller.exe and run the application. -
Page 7: Install The Virtual Communication Port
Select a destination for the application shortcut or leave it in default location, and click next. Select additional icon options and click next. Select install to start the installation. Check the box next to Launch Serial Port Viewer and Terminal and click finished. FM4-U120-9B560 Quick Start Guide, Doc. No. 002-05534 Rev. *A... -
Page 8: Powering Fm4-U120-9B560 Starter Kit
4. Powering FM4-U120-9B560 Starter Kit There are four options for powering the FM4-U120-9B560 starter kit. This document will only use two of those options, USB connection at either CN3 or CN4. Connect the USB cable to CN4 to power the board. The green power LED5 will illuminate. -
Page 9: Run Pcb Board Test Demonstration
The pre-programmed demonstration tests the on-board features for proper functionality. The application will already be running in the MB9BF568R microcontroller when the FM4-U120-9B560 starter kit is powered on. Follow the below instructions to connect the virtual communication port created by test application to the Cypress Serial Port Viewer and Terminal. - Page 10 To run each of the tests enter the letter next to the test description and follow the prompts. For example: p <enter> will test the potentiometer (R11). The application will prompt the user for a sequence of rotations of the potentiometer, and report the test result. FM4-U120-9B560 Quick Start Guide, Doc. No. 002-05534 Rev. *A...
- Page 11 Once the terminal is connected, press the space bar on PC keyboard and the welcome message will display. The space bar is used as the input for the UART test. If any issues or failures are encountered, ensure all jumpers are in default position as listed in Figure 4-1. FM4-U120-9B560 Quick Start Guide, Doc. No. 002-05534 Rev. *A...
-
Page 12: Additional Resources
The MB9BF568R MCU with ARM® Cortex®-M4 core is part of Cypress‘s FM4 Family of microcontrollers. The FM4-U120- 9B560_CDvnn download folder includes additional resources for users to easily and quickly develop their own applications on Cypress‘s FM4 Family of microcontrollers: User Guide FM4-U120-9B560 with flash programming and IDE details Subfolder .\documentation ... -
Page 13: Revision History
Document Revision History Document Title: FM4-U120-9B560 Quick Start Guide Document Number: 002-05534 Revision Origin of Issue Date Description of Change Change — HOWE 01/01/2015 Initial release. 5543971 HOWE 12/15/2016 Updated to Cypress format FM4-U120-9B560 Quick Start Guide, Doc. No. 002-05534 Rev. *A...
